The Hikvision DS-PDCM15PF-IR is an add-on wireless RF camera module designed for AX PRO outdoor Tri-Tech detectors. It provides high-definition visual verification to eliminate false intrusion alerts.

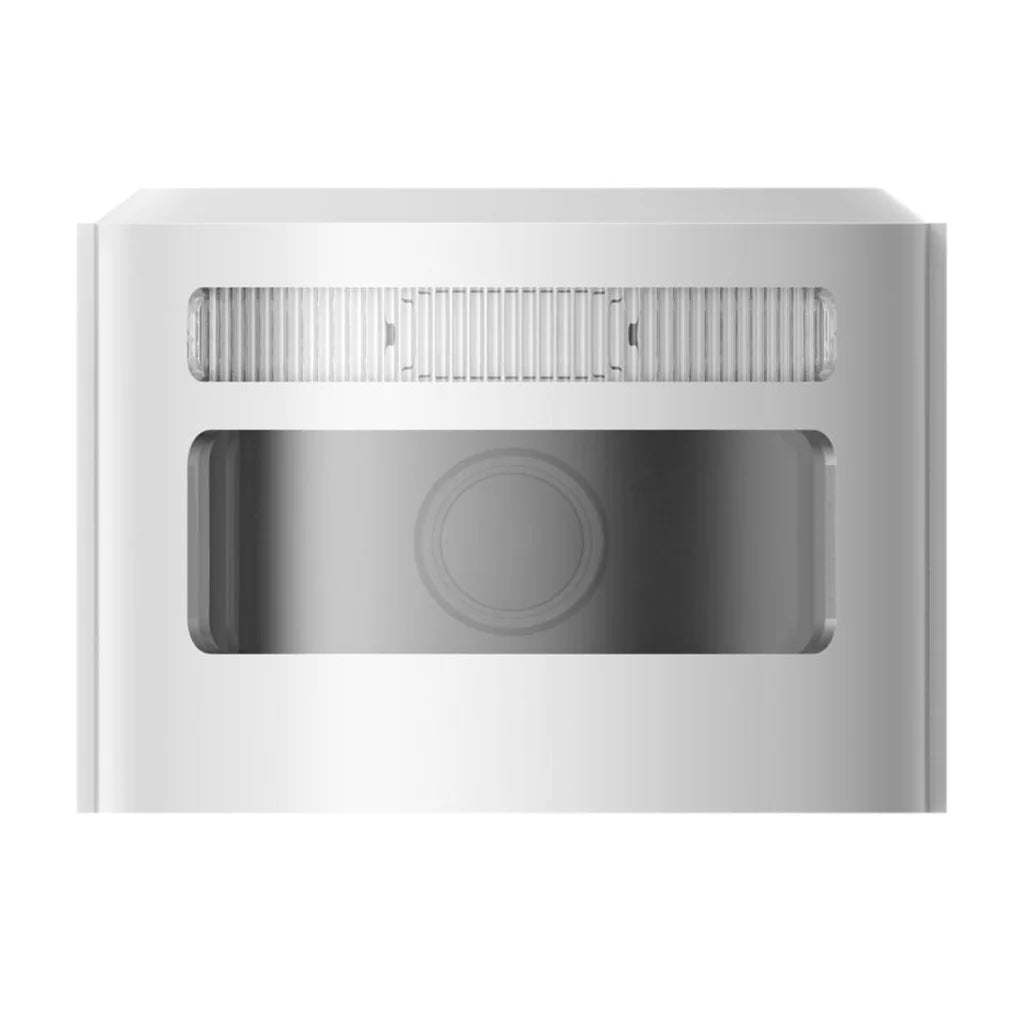

Hikvision DS-PDCM15PF-IR AX PRO Wireless Camera Module for Tri-Tech Detectors
This camera module features a 1/2.7-inch progressive scan CMOS sensor, a 2.0 mm fixed lens with a wide 137.2-degree field of view, and a 15-meter infrared night vision light. It supports JPEG capture resolutions up to 640 x 480.
The module is housed in an IP66 weather-rated enclosure with front/rear tamper switches, operating from -25°C to 60°C. It mounts directly onto compatible DS-PDTT15AM outdoor detectors to enable immediate app-based verification.
ABS Plastic & Glass Construction
Constructed from high-quality abs plastic & glass, the DS-PDCM15PF-IR provides superior mechanical properties and high structural rigidity. It prevents camera jitter and vibration, ensuring stable, high-definition video feeds in all conditions.
Note: This equipment is designed for professional access control, video intercom, and security operations.
Clean Cable Management
The ax pro wireless camera module for tri-tech detectors features a spacious interior channel allowing power and video cables to route cleanly. This internal design protects connections from weathering, corrosion, and vandalism, providing a neat, professional installation.
KEY BENEFITS
- Mounts security and intercom hardware securely on structural surfaces.
- ABS Plastic & Glass construction provides high durability and structural rigidity.
- Hollow design routes cables internally, protecting wires from UV/rain.
- Durable grey finish resists weathering and prevents degradation.
- Suitable for both demanding indoor and outdoor CCTV installations.
- Pre-drilled mounting holes allow for a secure anchor.
- Weight of approximately 155 g provides strong mechanical support.
- Easy installation with standard Hikvision accessory screw layouts.
- Protects mounting surfaces from localized oxidation and rust.
KEY FEATURES
- AX PRO Wireless Camera Module for Tri-Tech Detectors for security cameras.
- Material: ABS Plastic & Glass.
- Surface finish: Weatherproof coating.
- Cable routing: Integrated internal channel.
- Application: Indoor and Outdoor environments.
- Weight: Approximately 155 g.
- Dimensions: 74.1 mm × 72.35 mm × 53 mm.
- Color: Grey.
IDEAL FOR
- Commercial building perimeters
- Warehouse brick and concrete walls
- Industrial plant perimeters
- Parking garage pillars and ceilings
- School campus buildings
- Shopping mall exterior walls
- Airport and seaport security structures
- Gated community entrance gates
- Municipal public safety setups
- Public transit platforms
- Hotel exterior walls
- Hospital facility structures
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-PDCM15PF-IR |
| Product Type |
AX PRO Wireless Camera Module for Tri-Tech Detectors |
| Camera Sensor |
1/2.7" Progressive Scan CMOS |
| Lens & FoV |
2.0 mm fixed lens (137.2° Horizontal / 80.1° Vertical) |
| Night Vision/IR Range |
IR illumination up to 15 meters |
| JPEG Image Resolution |
640 × 480, 320 × 240, 160 × 120 |
| Weatherproof Rating |
IP66 rated |
| Compatibility |
Outdoor Tri-Tech Detectors (DS-PDTT15AM series) |
| Dimensions |
74.1 mm × 72.35 mm × 53 mm |
| Weight |
155 g |
Frequently Asked Questions
What is the DS-PDCM15PF-IR used for?
The DS-PDCM15PF-IR is a ax pro wireless camera module for tri-tech detectors designed to support security cameras while housing and protecting cable connections.
What is the material of the mount?
It is constructed from high-strength abs plastic & glass, finished with a weather-resistant powder coating.
Can this be installed outdoors?
Yes. It is suitable for both indoor and outdoor installations, featuring weatherproof finishes and rubber gaskets to withstand weather elements.
Does it support internal cable routing?
Yes. The bracket body is hollow, allowing you to run power and network cables internally to keep them protected from rain and vandalism.
Are the mounting screws included?
No. You must choose appropriate fixing screws or masonry expansion bolts depending on the structure you are mounting to.
What is the recommended mounting surface?
The mounting surface must be capable of supporting at least three times the total combined weight of the bracket and camera.
