The Hikvision DS-2CE78U1T-IT3F(2.8MM) Grey is a professional-grade 8 Megapixel (4K) fixed turret analog camera designed for high-resolution residential and commercial surveillance. Utilizing a high-performance progressive CMOS sensor and EXIR 2.0 night vision technology, it captures detailed 3840 × 2160 resolution video at up to 15 frames per second, providing up to 60 meters of uniform night illumination. Housed in a rugged weatherproof IP67 metal turret casing finished in professional grey, this advanced security camera features a 2.8 mm fixed lens and switchable 4-in-1 video output. With integrated 3D DNR noise reduction, digital WDR, and coaxial telemetry controls, it represents a complete, highly reliable surveillance solution for outdoor perimeters.

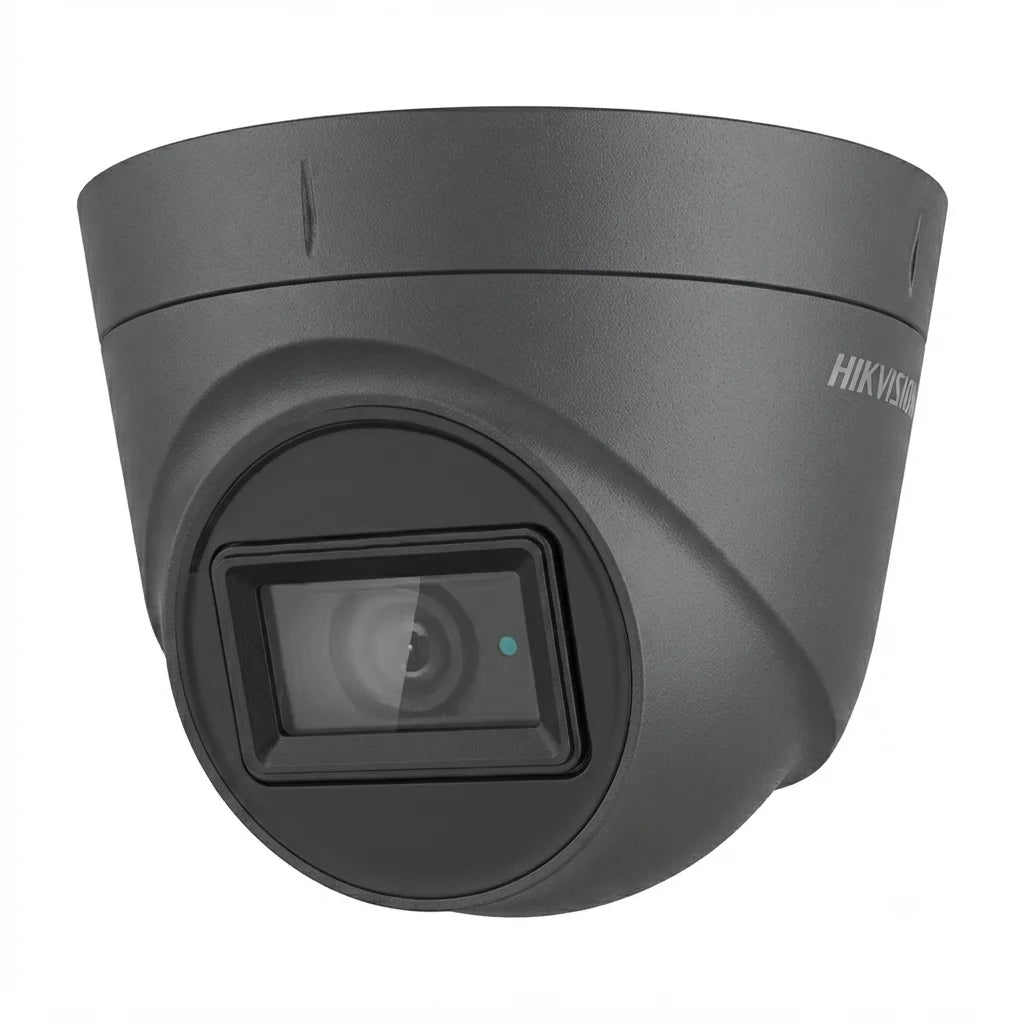

Hikvision DS-2CE78U1T-IT3F 8MP 4K Fixed Turret Camera (2.8mm) - Grey
The Hikvision DS-2CE78U1T-IT3F(2.8MM) Grey is a professional-grade 8 Megapixel (4K) fixed turret analog camera designed for high-resolution residential and commercial surveillance. Utilizing a high-performance progressive CMOS sensor and EXIR 2.0 night vision technology, it captures detailed 3840 × 2160 resolution video at up to 15 frames per second, providing up to 60 meters of uniform night illumination. This makes it an essential tool for professional security networks.
Housed in a rugged weatherproof IP67 metal turret casing finished in professional grey, this advanced security camera features a 2.8 mm fixed lens and switchable 4-in-1 video output. With integrated 3D DNR noise reduction, digital WDR, and coaxial telemetry controls, it represents a complete, highly reliable surveillance solution for outdoor perimeters. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
8MP 4K Ultra-HD Resolution
Captures highly detailed video at 8MP (3840 × 2160) resolution, providing exceptional pixel density for positive target identification, digital zoom, and forensic review.
60m EXIR 2.0 Night Vision
Features a built-in EXIR 2.0 infrared illuminator with a range up to 60 meters, ensuring clear, uniform black-and-white imaging in complete darkness without dark corners.
Switchable 4-in-1 Video Output
Features a switchable output terminal supporting TVI, AHD, CVI, and legacy CVBS signals, ensuring compatibility with major analog DVR brands.
3D Digital Noise Reduction (3D DNR)
Incorporates advanced 3D DNR noise reduction technology to filter video noise in low-light environments, rendering clear video detail.
IP67 Weatherproof Construction
Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.
Digital Wide Dynamic Range (DWDR)
Utilizes digital WDR to balance high-contrast lighting scenes, preventing silhouetting and ensuring clear detail in bright and dark zones.
Note: Ensure your DVR supports 8MP (4K) analog inputs to utilize the full clarity and resolution of this camera.
KEY BENEFITS
- Vivid 8MP resolution delivers extreme clarity for forensic video reviews.
- EXIR 2.0 technology provides uniform 60m IR night vision without dark corners.
- IP67 weatherproofing ensures stable operation in heavy rain, snow, and wind.
- Universal 4-in-1 output simplifies integration into existing analog CCTV systems.
- 3D DNR technology reduces video noise in low-light environments for sharper images.
- Supports digital WDR to prevent silhouetting in brightly lit entrances.
- Grey casing finish blends with dark architectural surfaces and wooden beams.
- Compact turret casing design is easy to mount on ceilings and walls.
- Wide operating temperature range ensures performance in freezing winter conditions.
- OSD coaxial menu allows easy settings control directly from the DVR console.
KEY FEATURES
- Model Code: DS-2CE78U1T-IT3F
- Image Sensor: 8.29 Megapixel Progressive Scan CMOS
- Video Resolution: 8MP 4K (3840 × 2160)
- Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON)
- Focal Length: 2.8 mm Fixed Lens
- Field of View: 102.2° Horizontal Field of View
- Night Vision Type: EXIR 2.0 Smart IR
- Supplement Light Range: Up to 60 meters (IR range)
- Wide Dynamic Range: Digital WDR
- Signal Output: 4-in-1 TVI/AHD/CVI/CVBS switchable
- Weather Rating: IP67 dust and water resistant
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Dimensions: Ø 109.82 mm × 91.03 mm
- Chassis Material: Durable Metal and Plastic
- Chassis Colour: Professional Grey finish
IDEAL FOR
- Residential driveway and front door perimeter surveillance.
- Commercial building exterior walls and parking lot zones.
- Retail storefront doors and checkout counter areas.
- School campus perimeters and outdoor corridors.
- Industrial yard boundaries requiring active deterrence.
- Gated entrance and driveway access monitoring.
- Unattended warehouses needing proactive warning systems.
- Construction sites requiring standalone edge recording.
- Car parks and vehicle entrance lanes requiring high resolution capture.
- Replacing older analog cameras with 8MP resolution.
- Extreme weather outdoor security camera installations.
- Dark facades, modern cladding, and concrete structures.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CE78U1T-IT3F(2.8MM) Grey |
| Product Type |
8MP Fixed Turret Analog Camera |
| Image Sensor |
8.29 Megapixel Progressive Scan CMOS |
| Resolution |
8MP (3840 × 2160) |
| Min. Illumination |
Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Focal Length |
2.8 mm Fixed Lens |
| Horizontal FOV |
102.2° |
| Lens Mount |
M12 |
| Frame Rates (TVI) |
8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps |
| Night Vision Type |
EXIR 2.0 Smart IR |
| Supplement Light Range |
Up to 60 meters (IR range) |
| WDR |
Digital WDR |
| Image Enhancement |
3D DNR, BLC, HLC, Privacy Mask (4 areas) |
| Video Output |
4-in-1 switchable TVI/AHD/CVI/CVBS video output |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Power Supply Options |
12 VDC ± 25% |
| Power Consumption |
Max. 5.3 W |
| Physical Dimensions |
Ø 109.82 mm × 91.03 mm |
| Net Weight |
Approx. 320 g (0.71 lbs) |
| Chassis Material |
Metal & Plastic combination |
| Ingress Protection |
IP67 dust and water resistant |
Frequently Asked Questions
What is the resolution of the DS-2CE78U1T-IT3F?
The camera has an 8 megapixel sensor that records at 3840 × 2160 resolution for maximum video clarity.
Does this camera support low-light performance?
Yes, it features an low light sensor capable of colour imaging down to 0.01 Lux before switching to infrared night vision.
What night vision range does it support?
Using EXIR 2.0 technology, the camera provides uniform infrared night vision up to 60 meters in complete darkness.
Can this camera work with non-Hikvision DVRs?
Yes, the camera has a switchable 4-in-1 output supporting TVI, CVI, AHD, and legacy CVBS analog signals, making it widely compatible.
Is the camera weatherproof?
Yes, it is rated IP67 for water and dust resistance, making it suitable for exposed outdoor installations.
What power source does it require?
It supports a standard 12 VDC (± 25%) input. Power consumption is max. 5.3 W.
Does this camera support PoC?
No, this model does not support Power over Coaxial (PoC). It requires standard 12V DC power wiring.
What mounting brackets are compatible?
It is compatible with Hikvision DS-1272ZJ-110 wall mounts and DS-1280ZJ-TR13 junction boxes in matching grey.
Does it support WDR?
Yes, it features digital Wide Dynamic Range (DWDR) to maintain clear images in high-contrast backlight settings.
Does it have a built-in microphone?
No, this model is focused solely on video. It does not have an audio interface or built-in mic.
