The Hikvision DS-2CE5AH0T-VPIT3ZE(C) is a professional-grade 5 Megapixel Power over Coaxial (PoC) motorized varifocal dome analog camera designed for demanding outdoor and vandal-prone security applications. Utilizing a high-performance 5MP CMOS sensor and EXIR night vision technology, it captures ultra-sharp 2560 × 1944 resolution video, providing up to 40 meters of uniform night illumination. Housed in a rugged, vandal-resistant IK10 and weatherproof IP67 metal dome casing, this advanced security camera features a 2.7 mm to 13.5 mm motorized varifocal lens that automatically focuses when adjusting the zoom. Supporting a switchable output and PoC.at power standards, it represents a complete, versatile surveillance solution for commercial warehouses, parking structures, and public walkways.

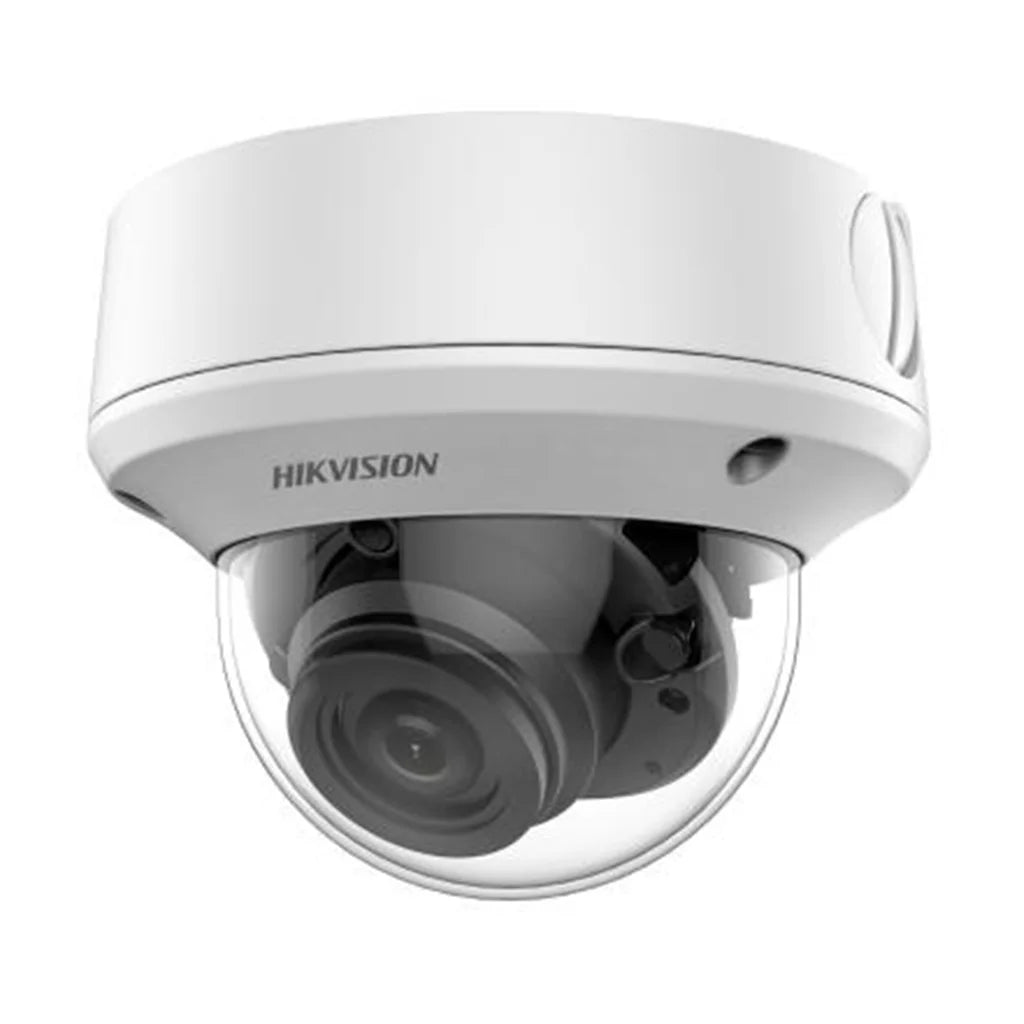

Hikvision DS-2CE5AH0T-VPIT3ZE 5MP PoC Motorized Varifocal Dome Camera
The Hikvision DS-2CE5AH0T-VPIT3ZE(C) is a professional-grade 5 Megapixel Power over Coaxial (PoC) motorized varifocal dome analog camera designed for demanding outdoor and vandal-prone security applications. Utilizing a high-performance 5MP CMOS sensor and EXIR night vision technology, it captures ultra-sharp 2560 × 1944 resolution video, providing up to 40 meters of uniform night illumination. This makes it an essential tool for professional security networks.
Housed in a rugged, vandal-resistant IK10 and weatherproof IP67 metal dome casing, this advanced security camera features a 2.7 mm to 13.5 mm motorized varifocal lens that automatically focuses when adjusting the zoom. Supporting a switchable output and PoC.at power standards, it represents a complete, versatile surveillance solution for commercial warehouses, parking structures, and public walkways. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
5MP High-Resolution Video
Captures video at an ultra-high 2560 × 1944 resolution (5MP) using an progressive CMOS sensor, providing excellent pixel density for identifying faces and license plates.
Motorized Varifocal Lens
Equipped with a 2.7 mm to 13.5 mm motorized lens, allowing remote zoom and automatic focus adjustments directly from the DVR or client software.
40m EXIR Night Vision
Utilizes advanced EXIR infrared technology, providing uniform night illumination up to 40 meters without center overexposure or dark corners.
Power over Coaxial (PoC) Support
Allows both video signals and power to be transmitted over a single coaxial cable when connected to PoC DVRs, simplifying cable management.
IK10 Vandal-Proof Protection
The durable dome housing is rated IK10 for vandal resistance, protecting the camera against physical impacts and tampering in public corridors.
IP67 Weatherproof Construction
Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.
Note: Ensure your DVR supports 5MP TVI input resolution and PoC standard protocols to utilize the full video clarity and one-cable installation.
KEY BENEFITS
- Vivid 5MP video resolution delivers extreme clarity for forensic video reviews.
- Motorized lens allows installers to adjust the viewing angle remotely without climbing ladders.
- Long-range 40m IR range easily covers wide parking lots and industrial yards.
- IK10 vandal resistance guarantees durability in high-risk public areas.
- IP67 weatherproofing ensures stable operation in heavy rain, snow, and wind.
- PoC support simplifies installation by delivering power and video over one coaxial cable.
- Digital WDR balances high-contrast backlight areas for clear, legible images.
- Anti-reflective glass increases infrared transmittance for cleaner night video.
- Low power draw configuration reduces overall electricity and running costs.
- Wide operating temperature range ensures performance in freezing winter conditions.
KEY FEATURES
- Model Code: DS-2CE5AH0T-VPIT3ZE
- Image Sensor: 5 Megapixel Progressive CMOS
- Resolution: 2560 × 1944 (5MP HD)
- Lens Type: Motorized varifocal (auto-focus)
- Focal Length: 2.7 mm to 13.5 mm varifocal
- Lens Field of View: 95° to 26° Horizontal
- Lens Mount: Φ14 mount standard
- Frame Rates (TVI): 5MP@20fps, 4MP@25fps
- Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON)
- Night Vision Type: EXIR smart IR
- Supplement Light Range: Up to 40 m IR range
- Signal Output: 1 HD analog output
- Wide Dynamic Range: Digital WDR
- Ingress Protection: IP67 dust and water resistant
- Vandal Resistance: IK10 impact protection
IDEAL FOR
- Commercial parking garages and structures.
- Warehouse interior corridors and loading bays.
- Public walkway and transit station surveillance.
- Retail storefront perimeters and exterior walls.
- School campus outdoor grounds and play yards.
- Industrial plant perimeters requiring long-range night vision.
- Office exterior facades and entry checkpoints.
- Bank exteriors requiring high-definition recording.
- Unattended logistics yards needing rugged cameras.
- Replacing older analog cameras with 5MP PoC resolution.
- High-contrast entrances with strong backlighting.
- Exposed outdoor walls subject to harsh weather.
SYSTEM COMPATIBILITY
- Compatible with Hikvision Turbo HD PoC DVR series.
- Supports standard TVI, CVI, AHD, and CVBS signals.
- Works with standard 12V DC power distribution units.
- Compatible with standard BNC coaxial video cables (RG59/RG6).
- Configurable via Hikvision DVR OSD coaxial menu system.
- Supports Hikvision DS-1273ZJ-145 wall mount brackets.
- Integrates with Hikvision DS-1280ZJ-M junction mounting boxes.
- Works alongside coax telemetry DVR configurations.
- Supports standard BNC coaxial video cables (RG59/RG6).
- Compatible with standard video baluns over UTP.
- Works with standard 12V DC power distribution units.
- Fits ceiling or wall mounting surfaces.
- Meets standard regulatory safety and emissions requirements.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CE5AH0T-VPIT3ZE(C) |
| Product Type |
5MP PoC Varifocal Dome Analog Camera |
| Image Sensor |
5 Megapixel Progressive Scan CMOS |
| Resolution |
2560 × 1944 (5MP) |
| Lens Type |
Motorized varifocal lens (focuses automatically) |
| Focal Length |
2.7 mm to 13.5 mm varifocal |
| Lens Field of View |
Horizontal FOV 95° to 26° |
| Lens Mount |
Φ14 |
| Frame Rates (TVI) |
5MP@20fps, 4MP@25fps, 4MP@30fps, 1080p@25fps, 1080p@30fps |
| Min. Illumination |
Color: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Night Vision Type |
EXIR smart IR |
| Supplement Light Range |
Up to 40 meters (IR range) |
| Signal Output |
1 HD analog output |
| Wide Dynamic Range |
Digital WDR |
| Ingress Protection |
IP67 dust and water resistant |
| Vandal Resistance |
IK10 impact protection |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Power Supply Options |
12 VDC ± 15% / PoC.at |
| Power Consumption |
Max. 7.4 W |
| Physical Dimensions |
Ø 145.0 mm × 111.3 mm |
| Net Weight |
Approx. 863 g (1.90 lbs) |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the resolution of the DS-2CE5AH0T-VPIT3ZE(C)?
The camera has an 5 megapixel sensor that records at 2560 × 1944 resolution for excellent video clarity.
What is a motorized varifocal lens?
It means you can adjust the camera's zoom (focal length from 2.7 mm to 13.5 mm) remotely, and the camera will automatically adjust its focus so you don't need to do it manually.
Is this camera vandal resistant?
Yes, the camera carries an IK10 vandal-proof rating, meaning its housing is designed to withstand high mechanical impacts.
What night vision range does it support?
Using advanced EXIR technology, the camera provides uniform infrared night vision up to 40 meters in complete darkness.
How does Power over Coaxial (PoC) work?
PoC allows the camera to draw its electrical power directly from a compatible PoC DVR over the same coaxial video cable, eliminating the need for local power adapters.
Is the camera weatherproof?
Yes, it is rated IP67 for water and dust resistance, making it suitable for exposed outdoor installations.
What power source does it require?
It supports standard 12 VDC (± 15%) or PoC.at inputs. Power consumption is max. 7.4 W.
Does this camera use PoE?
No, this is an analog camera that uses coaxial BNC connections for video and standard DC/AC terminals for power. It does not support Power over Ethernet (PoE).
What mounting brackets are compatible?
It is compatible with Hikvision DS-1273ZJ-145 wall mounts and DS-1280ZJ-M junction boxes.
Does it support WDR?
Yes, it features digital Wide Dynamic Range (WDR), which balances scenes with high contrast backlighting to prevent silhouetting.
