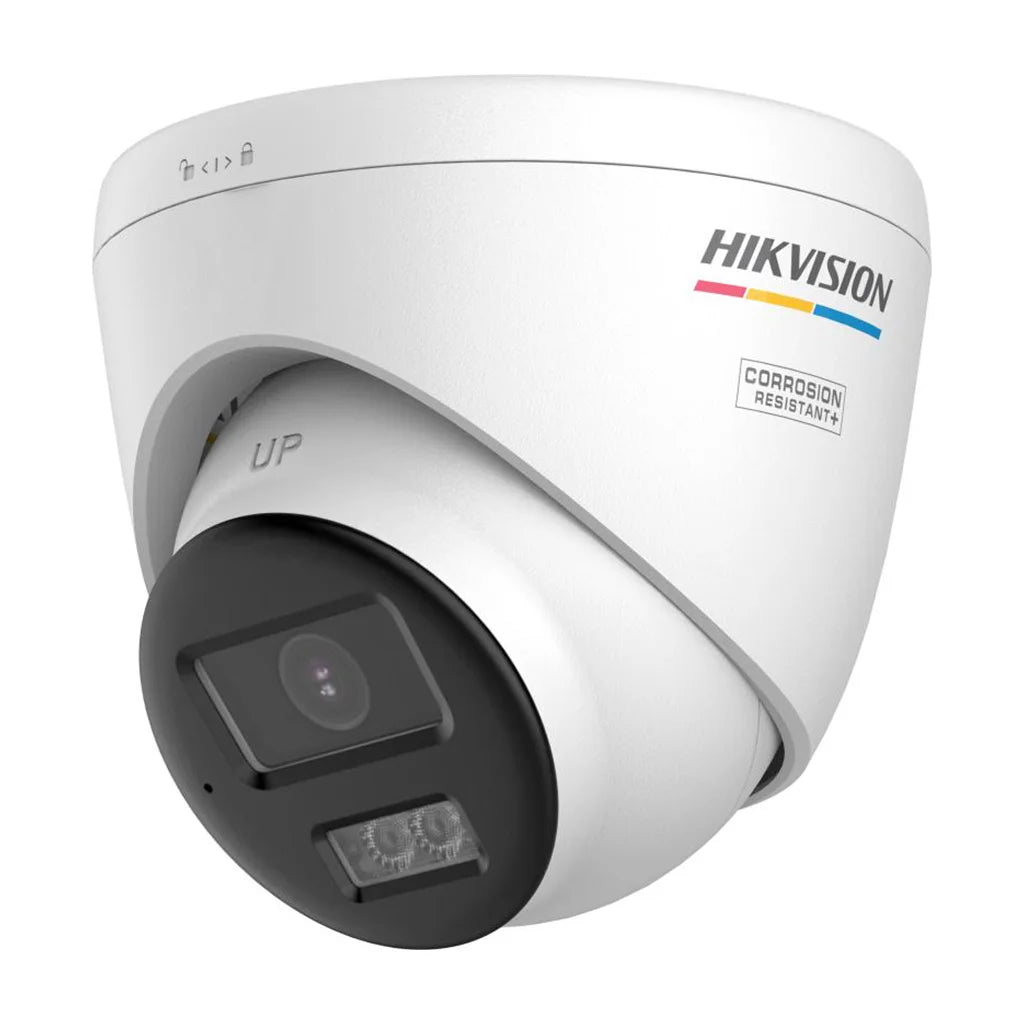

Hikvision DS-2CE72KF3T-LSYE 3K Smart Hybrid Light ColorVu Turret Camera (2.8mm) - Grey

The Hikvision DS-2CE10KF3T-LE(2.8mm) is a professional-grade 3K (5 Megapixel) ColorVu fixed mini bullet analog camera featuring Power over Coaxial (PoC) support. Designed for round-the-clock colour security monitoring, it utilizes a super-aperture F1.0 lens to capture bright, full-colour video under low-light conditions down to 0.0003 Lux. Housed in a rugged weatherproof IP67 mini bullet casing, this advanced security camera features a 2.8 mm fixed lens and visual monitoring capability. With integrated PoC support, true 130 dB WDR, and 3D DNR noise reduction, it represents a complete, highly reliable surveillance solution for residential properties, commercial walkways, and perimeter fences.

Hikvision DS-2CE10KF3T-LE 3K ColorVu PoC Fixed Bullet Camera (2.8mm)

The Hikvision DS-2CE10KF3T-LE(2.8mm) is a professional-grade 3K (5 Megapixel) ColorVu fixed mini bullet analog camera featuring Power over Coaxial (PoC) support. Designed for round-the-clock colour security monitoring, it utilizes a super-aperture F1.0 lens to capture bright, full-colour video under low-light conditions down to 0.0003 Lux. This makes it an essential tool for professional security networks.

Housed in a rugged weatherproof IP67 mini bullet casing, this advanced security camera features a 2.8 mm fixed lens and visual monitoring capability. With integrated PoC support, true 130 dB WDR, and 3D DNR noise reduction, it represents a complete, highly reliable surveillance solution for residential properties, commercial walkways, and perimeter fences. Installing this device ensures continuous stability and reliability in any access control or surveillance system.

ColorVu 24/7 Full-Colour Imaging

ColorVu technology uses an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.

Power over Coaxial (PoC) Support

Allows both video signals and power to be transmitted over a single coaxial cable when connected to PoC DVRs, simplifying cable management.

3K High-Definition Video Quality

Records at 3K resolution (2960 × 1665) at 20 frames per second, providing exceptional pixel density for positive target identification, digital zoom, and forensic review.

20m Visible White Light Night Vision

Features a built-in visible white light illuminator with a range up to 20 meters, ensuring clear colour imaging in complete darkness.

130 dB True Wide Dynamic Range

Incorporates 130 dB true WDR technology to balance high-contrast lighting, rendering clear video detail in both extremely bright and heavily shadowed areas.

IP67 Weatherproof Construction

Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.

Note: Ensure your DVR supports Hikvision PoC standard protocols to utilize the Power over Coaxial feature; otherwise, a separate 12V DC feed is required.

KEY BENEFITS

• Captures vivid full-colour security video day or night for positive target identification.
• Power over Coaxial technology simplifies installation by eliminating local outlet requirements.
• High 3K resolution provides excellent digital zoom detail for license plates and faces.
• IP67 weatherproof rating guarantees continuous operation in rain, snow, and dust.
• 3D DNR technology reduces video noise in low-light environments for sharper images.
• Supports 130 dB WDR to prevent silhouetting in brightly lit entrances.
• Durable casing provides rugged physical protection in exposed areas.
• EXIR technology provides uniform 20m white light coverage without dark corners.
• Compact mini bullet casing design is easy to mount on walls and eaves.
• Wide operating temperature range ensures performance in freezing winter conditions.

KEY FEATURES

• Model Code: DS-2CE10KF3T-LE
• Image Sensor: 3K CMOS Sensor
• Video Resolution: 3K (2960 × 1665)
• Minimum Illumination: Colour: 0.0003 Lux @ (F1.0, AGC ON)
• Focal Length: 2.8 mm Fixed Lens
• Field of View: 112° Horizontal, 60° Vertical, 133° Diagonal
• Supplement Light Range: Up to 20 m white light
• Wide Dynamic Range: 130 dB True WDR
• Built-in Microphone: No (visual monitoring focus)
• Video Output: TVI/AHD/CVI/CVBS switchable
• Chassis Material: Durable Metal and Plastic
• Chassis Colour: Architectural White finish
• Power Standard: 12 VDC / PoC.at (Max. 4.0 w)
• Weather Rating: IP67 dust and water resistant
• Dimensions: 161.1 mm × 68.4 mm × 65.2 mm

IDEAL FOR

• Residential driveway and front door perimeter surveillance.
• Commercial building exterior walls and walkways.
• Retail storefront perimeters and checkout counters.
• School campus perimeters and outdoor fences.
• Industrial yard boundaries requiring active deterrence.
• Gated entrance and driveway access monitoring.
• Unattended warehouses needing proactive warning systems.
• Construction sites requiring standalone edge recording.
• Car parks and vehicle entrance lanes requiring color capture.
• Replacing older analog bullet cameras with 3K PoC resolution.
• Extreme weather outdoor security camera installations.
• High-contrast entrances with strong backlighting.

SYSTEM COMPATIBILITY

• Fully compatible with Hikvision Turbo HD PoC DVR series.
• Supports standard TVI, CVI, AHD, and CVBS signals.
• Works with standard 12V DC power distribution units.
• Compatible with BNC coaxial video cables (RG59/RG6).
• Configurable via Hikvision DVR OSD coaxial menu system.
• Supports Hikvision DS-1280ZJ-XS junction mounting boxes.
• Integrates with Hikvision DS-1275ZJ-SUS pole mounting brackets.
• Works alongside coax telemetry DVR configurations.
• Supports standard video baluns over UTP grids.
• Compatible with standard VMS platforms via DVR integration.
• Works alongside Hikvision access control and intercom networks.
• Supports PoC power injection over standard coaxial wiring.
• Integrates with Hikvision smart event notification cloud system.

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

What is ColorVu technology in this camera?

ColorVu technology uses an F1.0 super-aperture and high-performance sensor to collect more light, capturing vivid full-colour images even in near-total darkness.

How does Power over Coaxial (PoC) work?

PoC allows the camera to draw its electrical power directly from a compatible PoC DVR over the same coaxial video cable, eliminating the need for local power adapters.

What is the resolution of this camera?

The camera records at 3K resolution (2960 × 1665) for outstanding detail representation.

Is the camera weatherproof?

Yes, the camera has an IP67 rating, indicating it is completely protected against dust and water ingress, suitable for all outdoor weather conditions.

What is the maximum light range?

The built-in visible white light has a range of up to 20 meters in complete darkness.

Does it have a built-in microphone?

No, this specific model (DS-2CE10KF3T-LE) does not have a built-in microphone or audio input ports.

What type of junction box is compatible?

It is compatible with standard Hikvision DS-1280ZJ-XS junction boxes.

What is the lens focal length?

This specific variant uses a 2.8 mm fixed lens, providing a horizontal field of view of 112°.

Does it support WDR?

Yes, it incorporates 130 dB true Wide Dynamic Range (WDR), which balances scenes with high contrast backlighting to prevent silhouetting.

What is the casing material?

The camera has a robust metal front cover and plastic body suitable for residential and commercial perimeters.
