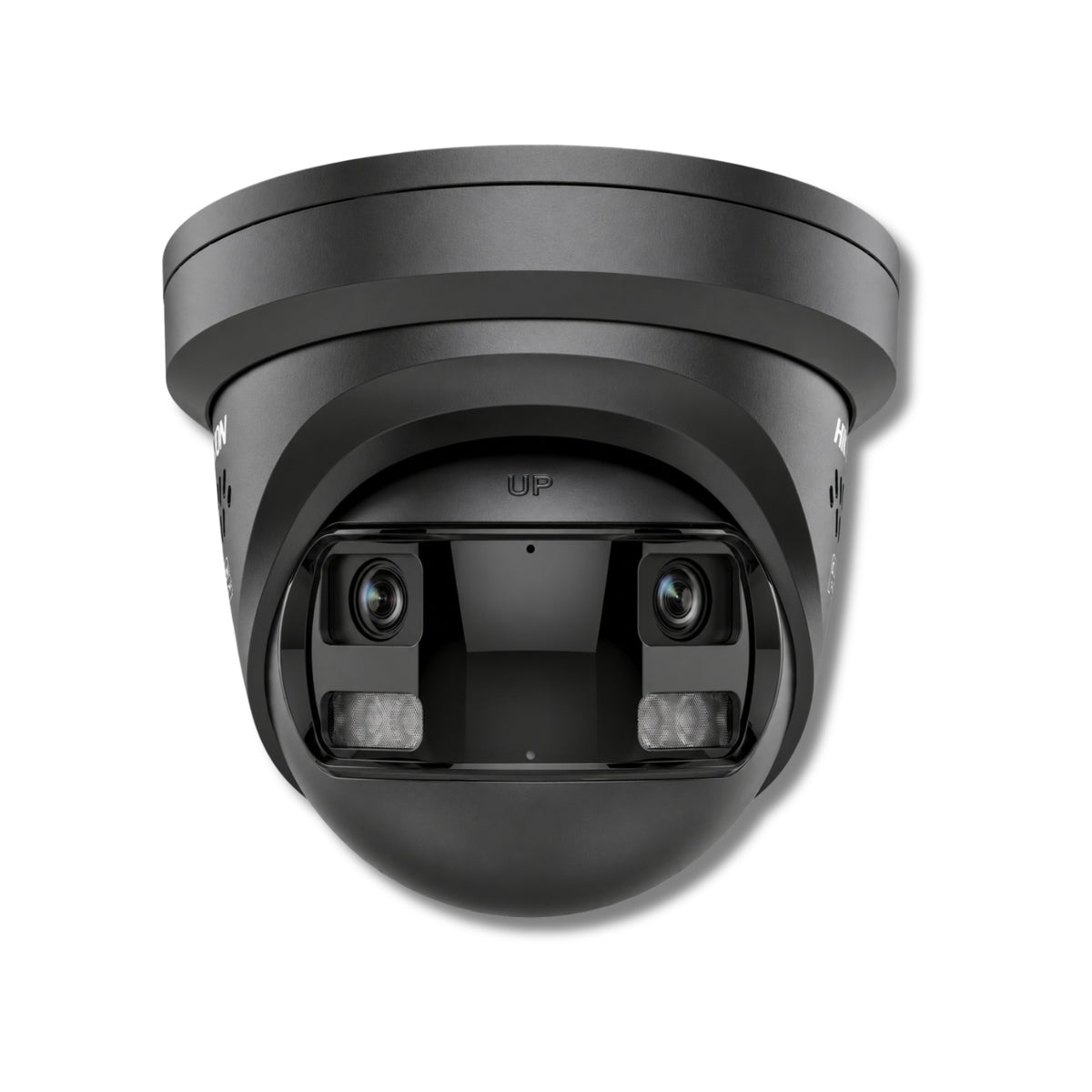

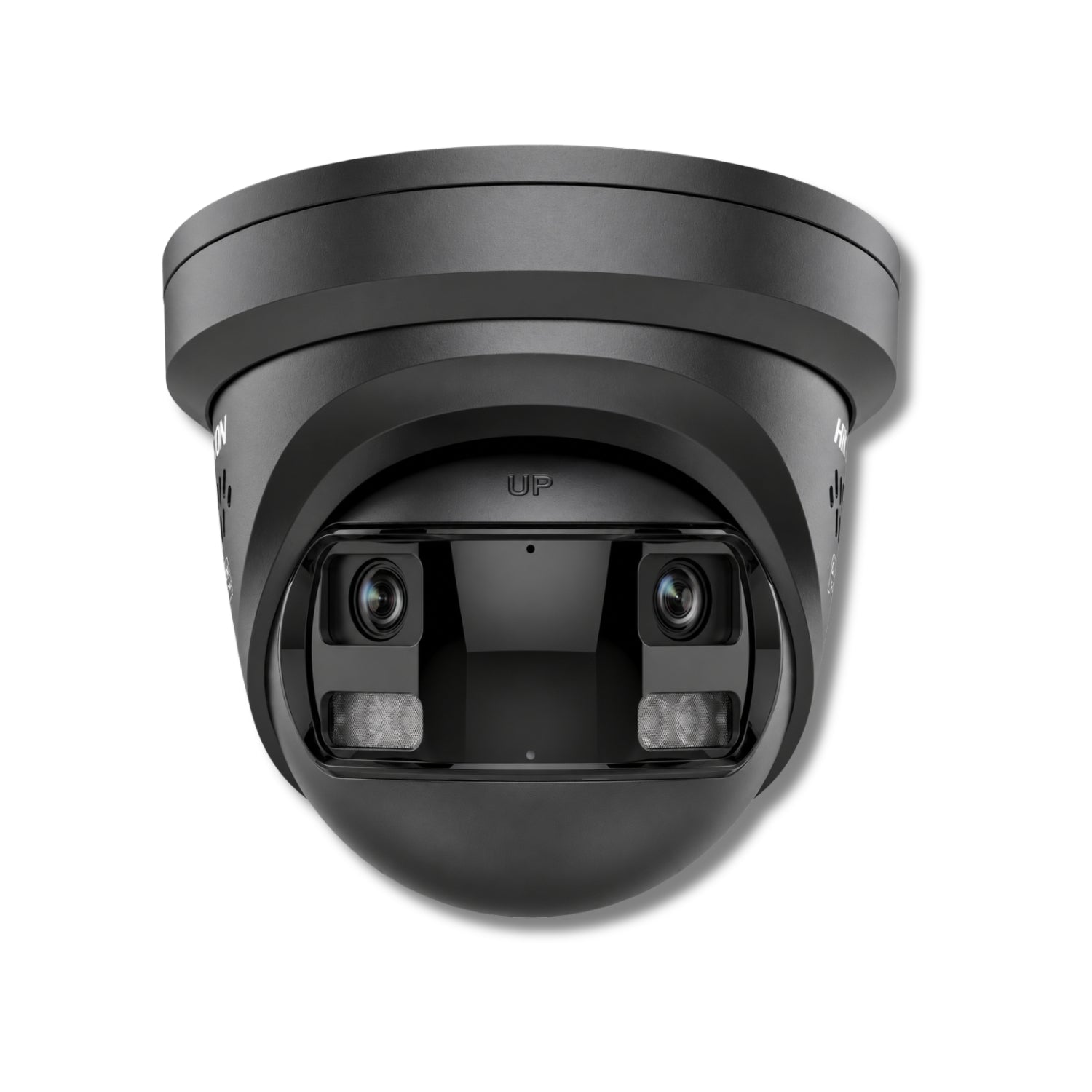

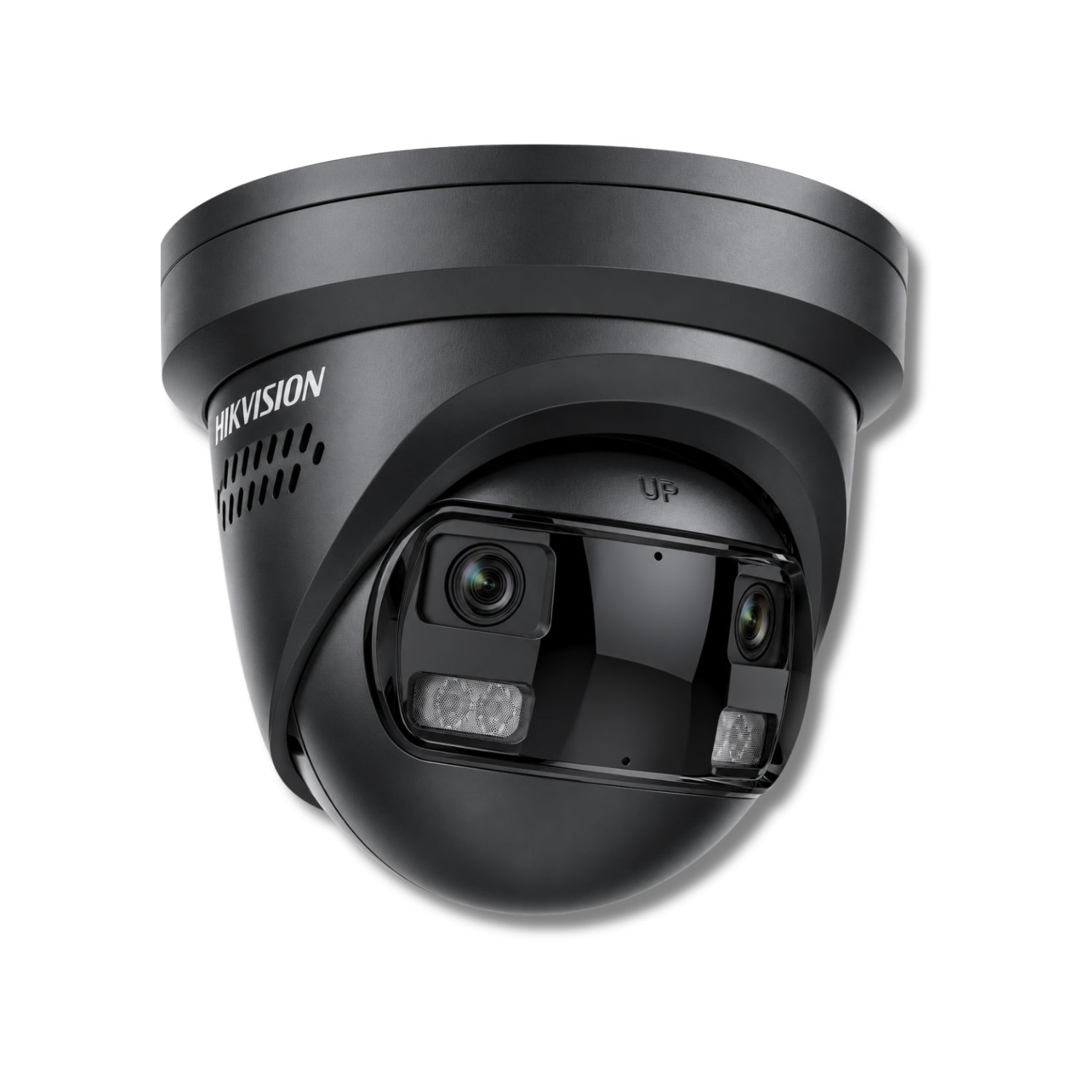

Hikvision 12MP 180° Panoramic ColorVu 3.0 Camera - Black
The Hikvision DS-2CD23127G3P-LIS2UY/SL (Black) is a professional 12MP panoramic turret IP camera designed for wide-area security monitoring. Its approximately 180° field of view helps cover large outdoor or indoor scenes from one camera position, making it a practical choice for driveways, entrances, forecourts, commercial premises and other suitable CCTV applications.
The camera combines ColorVu 3.0, HikAI-ISP, Smart Hybrid Light, intelligent human and vehicle detection, built-in audio and active white-light warning functions.
Key Features
- 12MP ultra-high-definition panoramic video at 5200 x 2320
- 180°-class view with 182.6° horizontal coverage
- 2.8mm fixed lens with F1.0 aperture
- ColorVu 3.0 technology with HikAI-ISP
- Smart Hybrid Light with infrared and white light up to 30m
- 130dB Wide Dynamic Range
- Human and vehicle classification with perimeter detection
- Arrayed dual built-in microphones and integrated speaker
- White flashing warning light and audible alarm
- H.265+ video compression and microSD storage up to 512GB
- IEEE 802.3at PoE+ and 12V DC power options
- IP67 and NEMA 4X moderate anti-corrosion protection
12MP Panoramic Surveillance
With a maximum resolution of 5200 x 2320, this camera records wide-format 12MP surveillance footage. Its fixed 2.8mm panoramic lens provides 182.6° horizontal and 74.6° vertical field of view.
Maximum main-stream frame rate is 20fps at the full 12MP resolution. A compatible NVR must support the resolution, video format and required incoming bandwidth.
ColorVu 3.0 and Smart Hybrid Light
ColorVu 3.0 uses HikAI-ISP to improve image clarity in difficult lighting conditions. The F1.0 lens supports low-light colour imaging, with manufacturer-specified minimum colour illumination of 0.0005 Lux under the stated conditions.
Smart Hybrid Light provides infrared, white-light and smart illumination options, with a maximum supplemental-light range of 30m. Actual visibility depends on the scene, ambient light and installation.
Intelligent Security and Active Deterrence
Human and vehicle classification helps filter supported motion and perimeter alarms. Available perimeter events include line crossing, intrusion, region entrance and region exit.
This exact black /SL camera features a white flashing warning light and audible alarm. It also has arrayed dual microphones and a built-in speaker for compatible audio and security functions.
The red-and-blue strobe belongs to the separate /SRB version and is not a feature of this model.
Flexible Recording and Connectivity
The camera supports H.265+, H.265, H.264+ and H.264 on its main stream. A built-in memory-card slot accepts compatible microSD cards up to 512GB. One RJ45 10/100Mbps interface provides wired network connectivity.
Power options are 12V DC or IEEE 802.3at Class 4 PoE, with maximum consumption of 20W DC or 24W PoE. A suitable power source, recording device and storage media must be selected according to the installation.
Technical Specifications
| Model |
DS-2CD23127G3P-LIS2UY/SL(180°)BLACK |
| Colour |
Black |
| Resolution |
12MP / 5200 x 2320 |
| Lens |
2.8mm Fixed, F1.0 |
| Viewing Angle |
182.6° Horizontal / 74.6° Vertical |
| Frame Rate |
20fps at Maximum Resolution |
| WDR |
130dB |
| Night Illumination |
IR / White Light, Up to 30m |
| Audio |
Dual Microphones / Built-In Speaker |
| Warning Light |
White Flashing Light |
| Storage |
microSD up to 512GB |
| Power |
12V DC / IEEE 802.3at PoE |
| Protection |
IP67 / NEMA 4X |
| Dimensions |
Ø138.6 x 125mm |
Frequently Asked Questions
Is this the black version?
Yes. This listing is specifically for the black DS-2CD23127G3P-LIS2UY/SL panoramic camera.
Does it really provide a 180° view?
Yes. Hikvision lists a 182.6° horizontal field of view for its 180° panoramic configuration.
Is it ColorVu 3.0?
Yes. ColorVu 3.0 and HikAI-ISP are officially supported.
Does it have night vision?
Yes. Smart Hybrid Light provides infrared and white supplemental illumination up to 30m.
Can it detect people and vehicles?
Yes. Human and vehicle classification is supported for specified detection events.
Does it have a microphone and speaker?
Yes. It includes arrayed dual microphones and a built-in speaker.
Does the alarm flash red and blue?
No. This /SL model uses a white flashing warning light. Red and blue flashing lights belong to the separate /SRB version.
Can it record to a memory card?
Yes. Compatible microSD cards up to 512GB are supported. A card is not confirmed as included.
Does it support PoE?
Yes. The camera requires IEEE 802.3at Class 4 PoE for PoE operation, not an assumed 802.3af-only connection.
Is it suitable for outdoor installation?
Yes, when correctly installed. It has IP67 ingress protection and NEMA 4X moderate anti-corrosion protection.
