The Hikvision DS-1271ZJ-110 is a professional pendant mount bracket designed to suspend dome cameras from ceilings. Constructed from premium aluminum alloy with a weather-resistant white finish, and supporting a maximum load capacity of 4.5 kg, it provides a stable and clean suspended mounting interface for indoor and outdoor dome security installations.

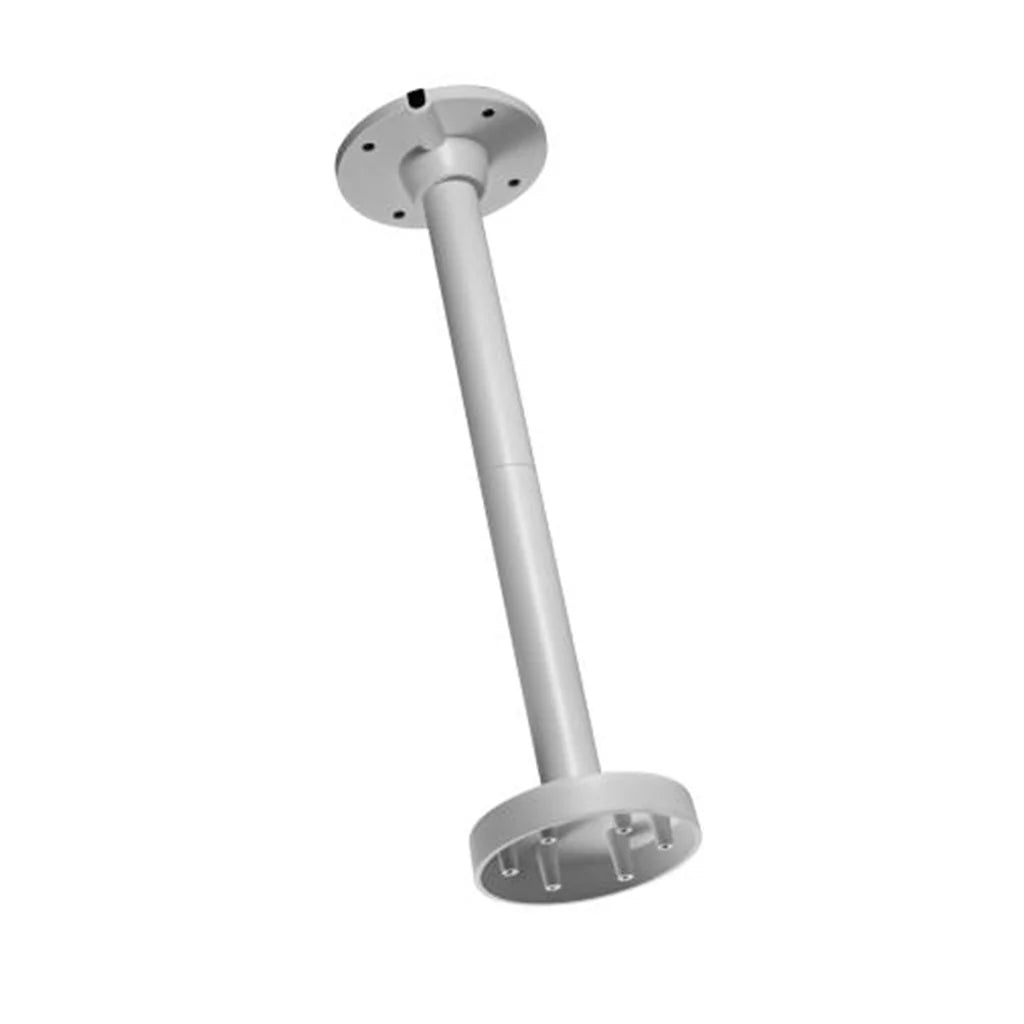

Hikvision DS-1271ZJ-110 Dome Pendant Mount Bracket
This professional-grade pendant mount bracket is engineered to suspend dome cameras from flat ceiling surfaces, allowing for optimized viewing heights and lens alignment. Built from high-strength aluminum alloy, the bracket offers outstanding structural strength and resistance to weathering. The bracket is finished with Hikvision's signature white surface spray treatment, matching white camera housings.
The DS-1271ZJ-110 includes a ceiling attachment flange, a hollow extension pipe, and a camera mounting adaptor cap. The dome camera base locks securely onto the adaptor cap, providing a quick, clean, and weather-sealed installation.
Aluminum Alloy Construction
Unlike plastic or light-duty brackets, the DS-1271ZJ-110 is built from high-strength aluminum alloy. This provides superior structural rigidity and durability, preventing camera vibrations and ensuring long-term camera stability.
Note: The ceiling and mounting surface must be capable of supporting at least three times the total combined weight of the camera and bracket (approx. 14 kg minimum). For outdoor installations, the included waterproof rubber gaskets must be properly fitted to prevent moisture ingress into the wiring pipe.
Clean Cable Management and Protection
The bracket features a completely hollow extension pole and adapter base, allowing cabling (network, power, and alarm lines) to run internally. By routing cables directly through the bracket pipe, you protect the wiring from rain, UV radiation, and physical tampering, ensuring system uptime.
Clean White Aesthetic
Coated in a premium white finish, the bracket blends seamlessly with standard office suspended ceilings, industrial warehouses, and commercial building soffits, providing a neat, professional security installation.
Universal Dome Camera Compatibility
The mounting adaptor cap matches standard Hikvision dome camera layouts (such as dome cameras with 110mm base diameters). Cameras mount securely onto the cap base, providing a stable, weather-sealed connection without requiring custom adapter plates.
KEY BENEFITS
- Suspends dome cameras from high ceilings for an optimized field of view.
- Supports dome cameras weighing up to 4.5 kg securely.
- Aluminum alloy construction provides high durability and structural rigidity.
- Hollow extension pipe routes cables internally, protecting wires from UV/rain.
- Durable white spray finish resists weathering and prevents rust.
- Suitable for both demanding indoor and outdoor surveillance environments.
- Multiple ceiling-fixing points on the flange ensure a secure anchor.
- Weight of approximately 1.27 kg provides strong mechanical support.
- Easy installation with standard Hikvision camera screw layouts.
- Protects mounting surfaces from localized oxidation and rust.
KEY FEATURES
- Pendant mount bracket for dome cameras.
- Material: Aluminum Alloy.
- Surface finish: Hikvision White electrostatic powder coating.
- Maximum load capacity: 4.5 kg (9.9 lb.).
- Cable routing: Integrated internal channel.
- Application: Indoor and Outdoor environments.
- Weight: Approximately 1270 g (2.80 lb.).
- Dimensions: Ø 110 mm × 500 mm × Ø 150 mm (4.33" × 19.69" × 5.91").
- Mounting type: Ceiling pendant flange.
- Robust construction resistant to physical impacts.
IDEAL FOR
- Suspended office ceiling tiles
- High-ceiling warehouses
- Retail store aisles
- Hotel lobbies and foyers
- School gymnasium ceilings
- Commercial parking garage ceilings
- Industrial plant ceilings
- Airport terminal ceilings
- Outdoor canopy soffits
- Library and public hall ceilings
- Under-eave residential mounts
- Exhibition center high bays
SYSTEM COMPATIBILITY
- Compatible with Hikvision dome cameras (e.g., dome cameras with 110mm base diameters)
- Compatible with Hikvision camera junction boxes
- Integrates with standard ceiling anchors and masonry bolts
- Supports conduit pipes via standard fittings
- Matches Hikvision's white dome camera housings
- Supports standard internal Ethernet and power cabling
- Accepts standard weatherproof silicone sealing gaskets
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-1271ZJ-110 |
| Product Type |
Dome Pendant Mount Bracket |
| Material |
Aluminum Alloy |
| Color |
Hikvision White |
| Max. Load Capacity |
4.5 kg (9.9 lb.) |
| Weight |
Approx. 1270 g (2.80 lb.) |
| Application |
Indoor and Outdoor |
| Dimensions (Diameter × Height) |
Ø 110 mm × 500 mm × Ø 150 mm |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the DS-1271ZJ-110 bracket used for?
The DS-1271ZJ-110 is a ceiling pendant mount bracket designed to suspend dome security cameras from high ceilings.
What is the material of the bracket?
It is constructed from high-strength aluminum alloy, finished with a weather-resistant white powder coating.
How much weight can this bracket support?
The bracket has a maximum load capacity of 4.5 kg (9.9 lb.), which easily supports standard dome cameras.
Can this bracket be installed outdoors?
Yes. The bracket is suitable for both indoor and outdoor installations, and features a weatherproof coating to withstand weathering.
Does it support internal cable routing?
Yes. The extension pole and adaptor cap are hollow, allowing you to run power and network cables internally to keep them protected from rain and vandalism.
How heavy is the bracket?
The bracket weighs approximately 1.27 kg (2.80 lb.) due to its robust aluminum construction.
Are the ceiling mounting screws included?
No. You must choose appropriate fixing screws or ceiling expansion bolts depending on the ceiling structure (concrete, steel, wood) you are mounting to.
What is the height of the mount?
The bracket has a total length/height of 500 mm (19.69 inches) from the ceiling flange to the camera mounting base.
What is the recommended mounting surface?
The ceiling structure must be capable of supporting at least three times the total combined weight of the bracket and dome camera.
Is this compatible with dome cameras?
Yes, this model is designed to accept Hikvision dome camera base layouts (specifically 110mm base designs).
