The Ajax MotionCam U (PhOD) Jeweller White is a wireless PIR motion detector with built-in photo verification and extended photo features, designed to provide accurate indoor intrusion detection with comprehensive visual confirmation. Featuring SmartDetect, pet immunity, Photo on Demand, encrypted Jeweller and Wings communication and up to five years of battery life, it is suited to Ajax security systems where the most flexible visual verification options are required.

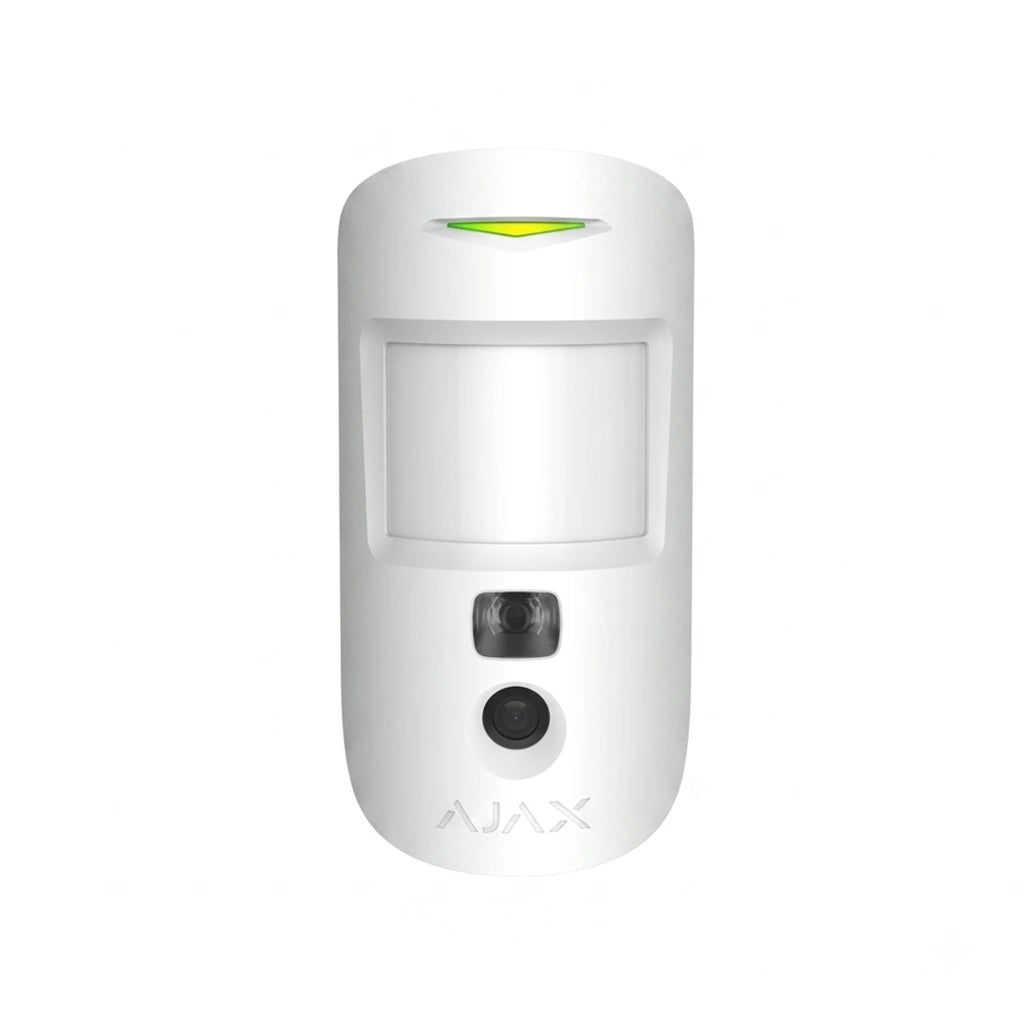

Ajax MotionCam U (PhOD) Jeweller White Wireless PIR Motion Detector with Photo Verification
The Ajax MotionCam U (PhOD) Jeweller is a wireless indoor PIR motion detector designed for use in residential and commercial Ajax security systems. It combines passive infrared motion detection with a built-in camera and the full range of Ajax photo verification modes — including Photo on Demand, Photo by Scenario, Photo by Schedule and Photo by Arming/Disarming — in addition to alarm-triggered photography.
The "(PhOD)" designation distinguishes this detector from the standard MotionCam U Jeweller. While both share the same PIR detection hardware and Jeweller/Wings communication, the PhOD variant provides significantly extended photo capabilities, allowing authorised users to request images at any time and configure automated photo schedules — not just on alarm. The "U" designation confirms this is the model adapted to comply with UK regulatory requirements, making it the appropriate version for UK security installations.
Reliable Indoor Motion Detection
The detector monitors indoor areas using a PIR sensor with a detection range of up to 12 metres, making it suitable for protecting hallways, living areas, offices, retail spaces and other internal rooms.
With a horizontal viewing angle of 88.5° and a vertical viewing angle of 80°, the detector provides effective room coverage when installed at the recommended mounting height of 2.4 metres, according to Ajax recommendations.
Extended Photo Verification — Five Modes
The MotionCam U (PhOD) Jeweller supports all five Ajax photo verification modes, giving installers and users the most complete set of visual monitoring options available in the Baseline indoor range:
-
Photo by Alarm — camera activates automatically when motion is detected in armed mode, delivering a series of images within approximately 9 seconds at the default 320×240 pixel resolution
-
Photo on Demand — authorised users can request a photo from the detector at any time through the Ajax app, regardless of alarm state
-
Photo by Scenario — the detector takes photos automatically when another Ajax device in the system triggers an alarm, enabling cross-device visual verification
-
Photo by Schedule — photos can be set to be captured at predefined times, supporting routine visual checks of protected areas
-
Photo by Arming/Disarming — the camera captures images each time the system is armed or disarmed, providing a visual record of access activity
This makes the MotionCam U (PhOD) Jeweller well suited to installations where visual monitoring, remote check-in or activity documentation is required, not just alarm response.
HDR Image Technology
The detector uses HDR (High Dynamic Range) imaging to deliver clear, balanced photos in both bright and low-light conditions. The camera takes two exposures at different levels and merges them into a single optimised frame, helping to preserve detail in both bright areas such as windows and darker zones within the same scene.
In low-light or dark conditions, an infrared backlight activates automatically, enabling the camera to capture usable images without ambient light. In these conditions, photos are produced in black and white.
SmartDetect False Alarm Prevention
The detector uses SmartDetect digital signal processing to analyse movement patterns and improve detection accuracy.
This technology helps distinguish genuine human movement from common sources of false alarms, providing more dependable operation in everyday environments including those with air conditioning, heating vents or other thermal sources.
Pet Immunity
When installed correctly, the detector is designed to ignore pets weighing up to 20 kg and measuring up to 50 cm in height.
This allows the system to remain armed while many household pets move freely throughout protected areas, helping to reduce unnecessary alarm activations. Sensitivity is adjustable across three levels in the Ajax app to suit different installation environments.
Jeweller and Wings Wireless Communication
The detector communicates with the hub using two of Ajax's proprietary wireless protocols working in parallel:
-
Jeweller — transmits alarm signals and events with encrypted two-way communication, device authentication, frequency hopping and anti-jamming detection
-
Wings — dedicated photo transmission protocol, delivering alarm and on-demand images securely to Ajax Cloud and the Ajax app
Communication range between the detector and hub is up to 1,700 metres in open space. Both protocols use block encryption with a dynamic key to protect all transmitted and stored data. On-demand photos are linked to the requesting user and are not transmitted to the security company monitoring station unless separately configured.
Long Battery Life
The detector is powered by two pre-installed CR123A lithium batteries, providing up to five years of operation under normal conditions before replacement is typically required — one year longer than the standard MotionCam U Jeweller, reflecting the calculated impact of the extended photo features on energy usage.
Battery status is continuously monitored and reported to the Ajax app, with early low-battery notifications sent well in advance to allow planned maintenance.
Quick Professional Installation
The included SmartBracket mounting panel enables straightforward installation without needing to disassemble the detector body. A built-in tamper switch detects any attempt to remove the detector from its mounting surface and immediately notifies the system.
Privacy and Data Security
All photos are encrypted throughout transmission and stored securely in Ajax Cloud. Only system users and security professionals with access to the event feed in the Ajax app can view images. The Privacy menu in Ajax apps provides precise control over visual data access permissions per user. On-demand photos are linked to the user who requested them and are not automatically visible to monitoring station operators.
Designed for Professional Security Systems
The MotionCam U (PhOD) Jeweller is part of Ajax's Baseline product line and is adapted for UK regulatory compliance. It is suited to residential, commercial and office installations where both alarm-triggered photo verification and proactive visual monitoring capability are required within a single wireless detector.
KEY BENEFITS
- Accurate indoor PIR motion detection up to 12 metres
- Five photo verification modes including Photo on Demand
- Photo on Demand allows authorised users to request images at any time
- Photo by Schedule supports automated routine visual checks
- Photo by Arming/Disarming provides a visual access log
- Photos delivered within approximately 9 seconds of alarm (default resolution)
- HDR imaging helps capture clear photos in bright and low-light conditions
- Infrared backlight enables photo capture in complete darkness
- SmartDetect technology helps reduce false alarms
- Pet immunity supports animals up to 20 kg and 50 cm tall
- Jeweller and Wings encrypted wireless communication
- Wireless range up to 1,700 m in open space
- Up to five years of battery life from pre-installed CR123A batteries
- Built-in tamper protection
- SmartBracket simplifies installation
- UK regulatory compliant version (U variant)
KEY FEATURES
- Wireless PIR motion detector with extended photo verification (PhOD)
- Passive infrared sensor with CMOS camera
- Detection range up to 12 m
- Horizontal angle 88.5°, Vertical angle 80°
- SmartDetect technology
- Pet immunity up to 20 kg / 50 cm
- Photo by Alarm, Photo on Demand, Photo by Scenario, Photo by Schedule, Photo by Arming/Disarming
- HDR image technology
- IR backlight for low-light photography
- Photo delivery within approximately 9 seconds (default resolution)
- Jeweller + Wings dual wireless protocol
- Up to 1,700 m communication range
- 2 × CR123A batteries pre-installed
- Battery life up to 5 years
- SmartBracket mounting panel
- Tamper protection
- IP50 rated
- IK04 impact protection
- Indoor installation only
- White finish
- UK regulatory compliant (U variant)
IDEAL FOR
- Homes and apartments
- Offices
- Retail shops and commercial premises
- Reception areas and hallways
- Warehouses
- Installations requiring on-demand visual checks
- Multi-user sites needing access activity documentation
- Reducing unnecessary patrol dispatches
- Professional Ajax alarm systems
SYSTEM COMPATIBILITY
- Compatible with Ajax Hub 2
- Compatible with Ajax Hub 2 (2G)
- Compatible with Ajax Hub 2 (4G)
- Compatible with Ajax Hub 2 Plus
- Compatible with Ajax Hub Plus
- Compatible with Ajax Hub Hybrid (2G)
- Compatible with Ajax Hub Hybrid (4G)
- Compatible with Ajax ReX 2 Jeweller (Wings-capable extender required for photo transmission)
- Uses Ajax Jeweller and Wings encrypted wireless communication
- Managed via Ajax mobile applications (iOS and Android)
- Managed via Ajax desktop applications (Windows and macOS)
- Supports Ajax Cloud remote management
- Supports Over-the-Air (OTA) firmware updates
| Specification |
Details |
| Brand |
Ajax |
| Model |
MotionCam U (PhOD) Jeweller |
| Article Number |
121297.120.WH1 |
| Product Type |
Wireless Indoor PIR Motion Detector with Extended Photo Verification |
| Product Line |
Baseline (UK Variant) |
| Detection Technology |
Passive Infrared (PIR) |
| Motion Detection Range |
Up to 12 m |
| Detection Angles |
Horizontal 88.5°, Vertical 80° |
| Pet Immunity |
Up to 20 kg / 50 cm |
| False Alarm Prevention |
SmartDetect |
| Photo Verification Modes |
Photo by Alarm, Photo on Demand, Photo by Scenario, Photo by Schedule, Photo by Arming/Disarming |
| Camera Sensor |
CMOS |
| Photo Resolution Options |
160×120 px / 320×240 px (default) / 640×480 px |
| Photo Delivery Time |
Up to 9 seconds (default resolution) |
| HDR Technology |
Yes |
| IR Backlight |
Yes – activates in low-light conditions |
| Wireless Technology |
Jeweller + Wings |
| Radio Communication Range |
Up to 1,700 m (open space) |
| Alarm Transmission Time |
Approximately 0.15 seconds |
| Tamper Protection |
Yes |
| Anti-Masking |
Not Supported |
| Sensitivity Levels |
3 (Low, Normal, High) |
| LED Indication |
Yes |
| Power Supply |
2 × CR123A Lithium Batteries (Pre-installed) |
| Battery Life |
Up to 5 Years |
| Protection Rating |
IP50 |
| Impact Protection |
IK04 |
| Operating Temperature |
−10°C to +40°C |
| Operating Humidity |
Up to 75% Non-condensing |
| Colour |
White |
| Material |
High-quality Plastic |
| Mounting |
SmartBracket Mounting Panel |
| Dimensions |
Not specified |
| Weight |
Not specified |
| Indoor / Outdoor |
Indoor Use Only |
| Warranty |
Not specified |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the Ajax MotionCam U (PhOD) Jeweller used for?
It is a wireless indoor PIR motion detector that combines intrusion detection with the most comprehensive photo verification options in the Ajax Baseline indoor range. In addition to alarm-triggered photos, it supports Photo on Demand, Photo by Scenario, Photo by Schedule and Photo by Arming/Disarming, allowing both reactive and proactive visual monitoring of protected areas.
What is the difference between the MotionCam U Jeweller and the MotionCam U (PhOD) Jeweller?
Both detectors share the same PIR sensor, camera, detection range and Jeweller/Wings communication hardware. The key difference is photo capability: the standard MotionCam U Jeweller captures photos only on alarm, while the MotionCam U (PhOD) Jeweller also supports Photo on Demand, Photo by Scenario, Photo by Schedule and Photo by Arming/Disarming. The PhOD variant also offers a slightly longer calculated battery life of up to five years versus four years on the standard model.
What does "U" mean in the product name?
The "U" indicates this detector has been adapted to comply with UK regulatory requirements. It is the correct version for UK security installations, sold under article number 121297.120.WH1.
Is this detector suitable for outdoor installation?
No. The MotionCam U (PhOD) Jeweller is designed for indoor use only and carries an IP50 protection rating. For outdoor photo verification, the MotionCam Outdoor (PhOD) range is available separately.
What is the maximum detection range?
The detector can identify movement at distances of up to 12 metres when installed at the recommended height of 2.4 metres, according to Ajax installation guidelines.
Does it ignore pets?
Yes. The detector features pet immunity, designed to ignore animals weighing up to 20 kg and measuring up to 50 cm in height when correctly installed. Sensitivity can be adjusted across three levels in the Ajax app.
How does Photo on Demand work?
Authorised users can request a photo from the detector at any time by tapping the option in the Ajax app. The image is captured and transmitted via Wings to Ajax Cloud. On-demand photos are linked to the requesting user and are not automatically shared with monitoring station operators.
How does the camera perform in low light or darkness?
An infrared backlight activates automatically when there is insufficient ambient light, enabling photo capture in complete darkness. Images taken in these conditions are produced in black and white. HDR technology also helps to balance exposure in scenes with mixed bright and dark areas.
How does the detector communicate with the hub?
It uses two Ajax wireless protocols in parallel: Jeweller for encrypted alarm and event transmission, and Wings for photo delivery. Both use block encryption and frequency hopping, with a wireless range of up to 1,700 metres in open space.
Does it include tamper protection?
Yes. A built-in tamper switch immediately notifies the system if the detector is removed or displaced from its SmartBracket mounting panel.
