The Ajax EN54 FireProtect (Sounder/VAD) Jeweller Black is a wireless, EN54-certified fire alarm sounder combined with a visual alarm device (VAD), designed to provide loud audible and bright visual warning during a fire. Combining a configurable multi-tone sounder with an EN 54-23 certified LED light beacon, encrypted Jeweller communication and an IP54 rating for indoor and outdoor use, it delivers certified fire signalling as part of a compatible Ajax fire detection system.
Ajax EN54 FireProtect (Sounder/VAD) Jeweller Black Wireless Fire Sounder with Visual Alarm Beacon
The Ajax EN54 FireProtect (Sounder/VAD) Jeweller is a wireless addressable fire alarm sounder combined with a visual alarm device (model FP.54AV.J), developed for use in EN54-compliant fire detection systems. It provides both a high-volume audible alarm and a bright flashing light signal, ensuring fire warnings are clearly perceived — including by people who may not hear an audible alarm alone. Alarm and event data is exchanged with the Ajax control and indicating equipment (CIE) over the secure Jeweller radio protocol.
This device is a signalling device, not a detector — it does not sense smoke or heat. Instead, it annunciates alarms triggered elsewhere in the system, combining sound and light in a single certified unit. Its IP54 rating allows use both indoors and outdoors, making it suitable for a wide range of premises.
Combined Audible and Visual Alarm
The device delivers a fire warning through two channels simultaneously: a powerful acoustic sounder and a bright LED visual alarm beacon. This dual signalling helps ensure the alarm is perceived in noisy environments and by people with hearing impairments, in line with modern accessibility requirements.
Built-In EN 54-3 Sounder
The integrated sounder provides an immediate audible fire warning using a temporal alarm pattern compliant with EN 54-3. It supports 32 selectable tones with a maximum output of up to 100 dB at 1 metre, and volume can be configured to suit the environment.
When multiple FireProtect sounders are installed on the same system, their audible alerts are automatically synchronised so that all devices activate simultaneously, providing a clear, coordinated evacuation signal throughout the protected premises.
EN 54-23 Certified Visual Alarm Device

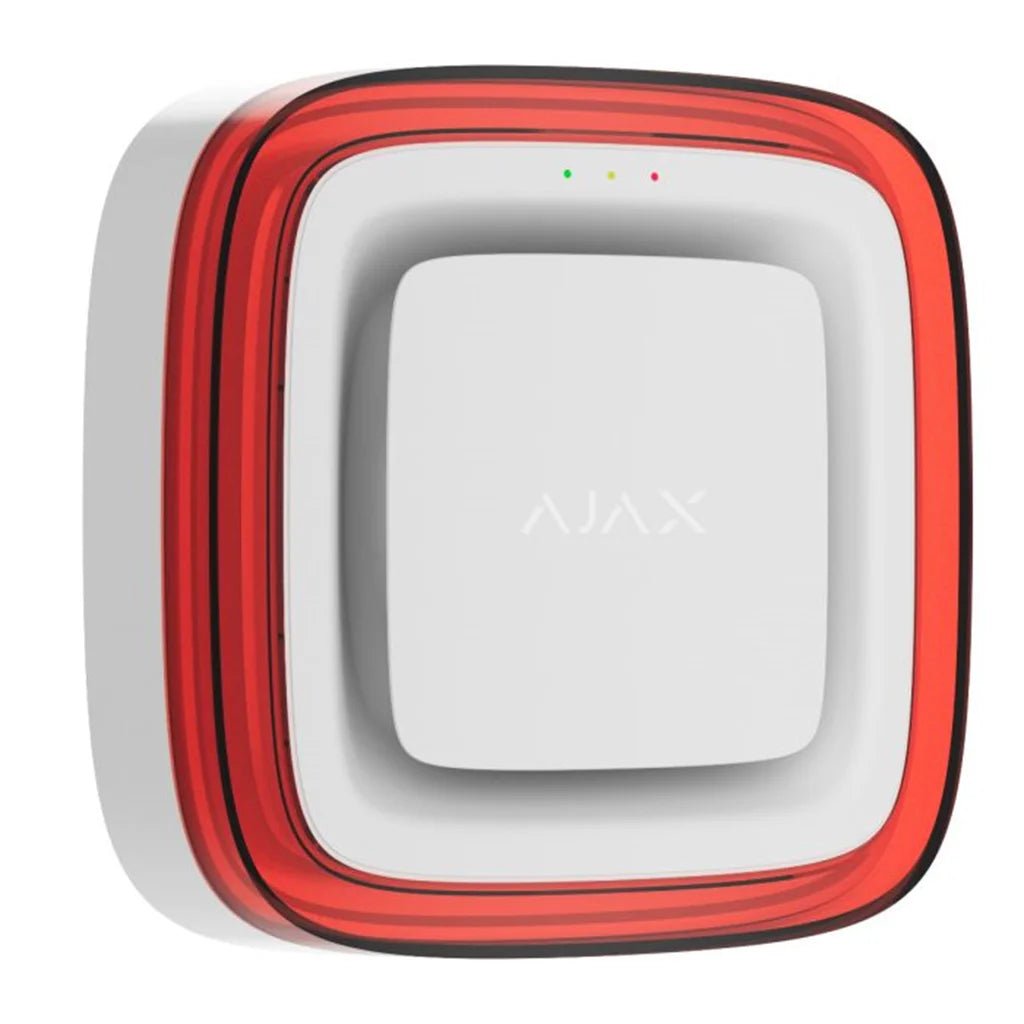

The visual alarm device (VAD) consists of an LED light frame that flashes to signal an alarm, certified to EN 54-23 — the European standard for visual alarm devices. The beacon flashes at a frequency of 0.5 Hz (a 90 ms flash every 2 seconds), providing a clearly visible alarm indication.
Visual signalling is essential in areas with high ambient noise, in premises used by people with hearing impairments, and wherever building regulations require visual as well as audible fire warning.
EN 54 Certified Fire Signalling
The device is certified under the Construction Products Regulation (CPR) to multiple parts of the European EN 54 standard:
-
EN 54-3 — fire alarm devices / sounders
-
EN 54-23 — visual alarm devices
-
EN 54-25 — components using radio links
-
EN 54-13 — system compatibility assessment
This certification makes the device suitable for professional and regulated fire installations where EN 54 compliance is mandatory.
Secure Jeweller Wireless Communication
The device communicates with the Ajax CIE using the encrypted, two-way Jeweller radio protocol, with a communication range of up to 1,700 metres in open space to the hub or a compatible range extender.
Jeweller provides frequency hopping, device authentication and block encryption with a dynamic key to protect against interference and spoofing. The device polls the hub at regular intervals, and loss of communication is detected and reported so faults never go unnoticed.
Indoor and Outdoor Use
With an IP54 protection rating, the Sounder/VAD is suitable for both indoor and outdoor installation, allowing it to signal alarms on building exteriors, in covered outdoor areas and in demanding indoor environments. It operates across a wide temperature range from −10°C to +60°C.
Long Battery Life
The device is powered by four pre-installed CR123A lithium batteries, providing up to five years of autonomous operation under normal conditions. Batteries can be replaced without tools, and the device includes reverse-polarity protection.
Battery status is continuously monitored and reported to the Ajax app, with early low-battery notifications sent in advance to allow planned maintenance.
Tamper and Sabotage Protection
The device features a tamper button that detects removal from its SmartBracket mounting panel and immediately reports it to system users and the monitoring company as a fault. Device authentication protects against spoofing, ensuring only genuine Ajax devices can be paired with the system.
Quick Professional Installation
The included SmartBracket mounting panel enables straightforward installation without disassembling the device. It can be mounted on a wall (up to 2.4 m) or ceiling (up to 3 m), and an optional lock secures the device so it cannot be removed without a special tool.
KEY BENEFITS
- EN 54 certified for professional and regulated fire installations
- Combined audible and visual fire warning in one device
- Powerful sounder up to 100 dB with EN 54-3 compliant temporal pattern
- EN 54-23 certified LED visual alarm beacon
- Ensures alarms are perceived in noisy areas and by people with hearing impairments
- 32 selectable tones with configurable volume
- Synchronised audible alerts across all sounders in the system
- IP54 rated for indoor and outdoor installation
- Encrypted Jeweller wireless communication up to 1,700 m
- Up to five years of battery life from pre-installed CR123A batteries
- Tamper protection against removal
- SmartBracket enables fast tool-free installation
- Available in Black finish
KEY FEATURES
- Wireless addressable fire alarm sounder with visual alarm device (VAD)
- Signalling device only — does not detect smoke or heat
- Sounder up to 100 dB at 1 m
- 32 selectable tones; EN 54-3 compliant patterns
- Configurable sounder volume
- Automatic sounder synchronisation across devices
- EN 54-23 certified LED visual alarm beacon
- VAD flash frequency 0.5 Hz (90 ms flash every 2 s)
- Certified to EN 54-3, EN 54-23, EN 54-25 and EN 54-13
- Secure Jeweller two-way wireless protocol
- Communication range up to 1,700 m in open space
- 4 × CR123A batteries pre-installed
- Battery life up to 5 years
- Tool-free battery replacement with reverse-polarity protection
- Tamper button (removal detection)
- SmartBracket mounting panel
- IP54 protection rating
- UL 94 V-0 flammability rating
- Indoor and outdoor installation
- Black finish
IDEAL FOR
- Offices and commercial premises
- Retail shops and shopping centres
- Hotels and hospitality venues
- Public and educational buildings
- Warehouses and industrial units
- Noisy environments requiring visual warning
- Premises used by people with hearing impairments
- Building exteriors and covered outdoor areas
- Installations requiring EN 54 certified sound and light signalling
- Professional Ajax fire and security systems
SYSTEM COMPATIBILITY
- Requires an Ajax control and indicating equipment (CIE) / hub running an up-to-date OS Malevich
- Compatible with Ajax Hub 2 (2G)
- Compatible with Ajax Hub 2 (4G)
- Compatible with Ajax Hub 2 Plus
- Compatible with Ajax Hub Hybrid (2G)
- Compatible with Ajax Hub Hybrid (4G)
- Compatible with Ajax ReX 2 range extender
- Uses Ajax Jeweller encrypted wireless communication
- Pairs with one CIE / hub at a time
- Managed via Ajax mobile applications (iOS and Android)
- Managed via Ajax desktop applications (Windows and macOS)
- Supports Ajax Cloud remote management
- Supports Over-the-Air (OTA) firmware updates
| Specification |
Details |
| Brand |
Ajax |
| Model |
EN54 FireProtect (Sounder/VAD) Jeweller |
| Article Number |
118600.279.BL1 |
| Device Model Code |
FP.54AV.J |
| Product Type |
Wireless Fire Sounder with Visual Alarm Device (VAD) |
| Product Line |
EN54 FireProtect |
| Detection |
None — signalling device only |
| Sounder Output |
Up to 100 dB at 1 m |
| Sounder Tones |
32 selectable tones |
| Visual Alarm Device |
LED beacon, EN 54-23 certified |
| VAD Flash Frequency |
0.5 Hz (90 ms ON / 1,910 ms OFF) |
| EN 54 Certifications |
EN 54-3, EN 54-23, EN 54-25, EN 54-13 |
| Wireless Technology |
Jeweller |
| Radio Communication Range |
Up to 1,700 m (open space) |
| Tamper Protection |
Yes |
| Power Supply |
4 × CR123A Lithium Batteries (Pre-installed) |
| Battery Life |
Up to 5 Years |
| Battery Replacement |
Tool-free, reverse-polarity protected |
| Protection Rating |
IP54 |
| Flammability Rating |
UL 94 V-0 |
| Operating Temperature |
−10°C to +60°C |
| Operating Humidity |
Up to 80% Non-condensing |
| Dimensions |
145 × 145 × 51 mm |
| Weight |
561 g |
| Colour |
Black |
| Material |
High-quality Plastic |
| Mounting |
SmartBracket Mounting Panel |
| Indoor / Outdoor |
Indoor and Outdoor Use |
| Warranty |
24 Months |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the Ajax EN54 FireProtect (Sounder/VAD) Jeweller used for?
It is a wireless EN54-certified fire alarm sounder combined with a visual alarm device (VAD). It provides both a loud audible alarm and a bright flashing light to warn occupants of a fire, and communicates with the Ajax control and indicating equipment (CIE) over the secure Jeweller protocol. It is used to signal fire alarms — it does not detect smoke or heat itself.
Does this device detect fire?
No. The Sounder/VAD is a signalling device only. It annunciates alarms triggered by detectors elsewhere in the Ajax system using sound and light. For fire detection, pair it with FireProtect smoke or heat detectors on the same system.
What does VAD mean?
VAD stands for Visual Alarm Device — a certified flashing light beacon that provides a visual fire warning alongside the audible sounder. It is certified to EN 54-23 and is important in noisy areas and for people with hearing impairments.
How loud is the sounder?
The sounder produces up to 100 dB at 1 metre, using an EN 54-3 compliant temporal alarm pattern. It offers 32 selectable tones and configurable volume, and audible alerts are automatically synchronised across all FireProtect sounders in the system.
Can it be installed outdoors?
Yes. With an IP54 protection rating and an operating range of −10°C to +60°C, the Sounder/VAD is suitable for both indoor and outdoor installation, including building exteriors and covered outdoor areas.
Does it need a specific Ajax hub?
Yes. The device requires an Ajax control and indicating equipment (CIE) / hub running an up-to-date OS Malevich, such as the Hub 2 (2G/4G), Hub 2 Plus or Hub Hybrid. Always confirm compatibility using the Ajax compatibility tool before purchase.
How is the device powered?
It operates from four pre-installed CR123A lithium batteries, providing up to five years of autonomous operation under normal conditions. Batteries can be replaced without tools, and status is monitored and reported in the Ajax app with early low-battery notifications.
What colour options are available?
The EN54 FireProtect (Sounder/VAD) Jeweller is available in White, Red and Black under separate article numbers. This product is the Black version (article 118600.279.BL1).
