The Ajax EN54 FireProtect (Smoke) Jeweller White is a wireless, EN54-certified point smoke detector designed for professional fire detection in residential, commercial and public buildings. Using a dual-spectrum optical smoke sensor, encrypted Jeweller communication and up to six years of battery life, it delivers certified early smoke detection as part of a compatible Ajax fire detection system.

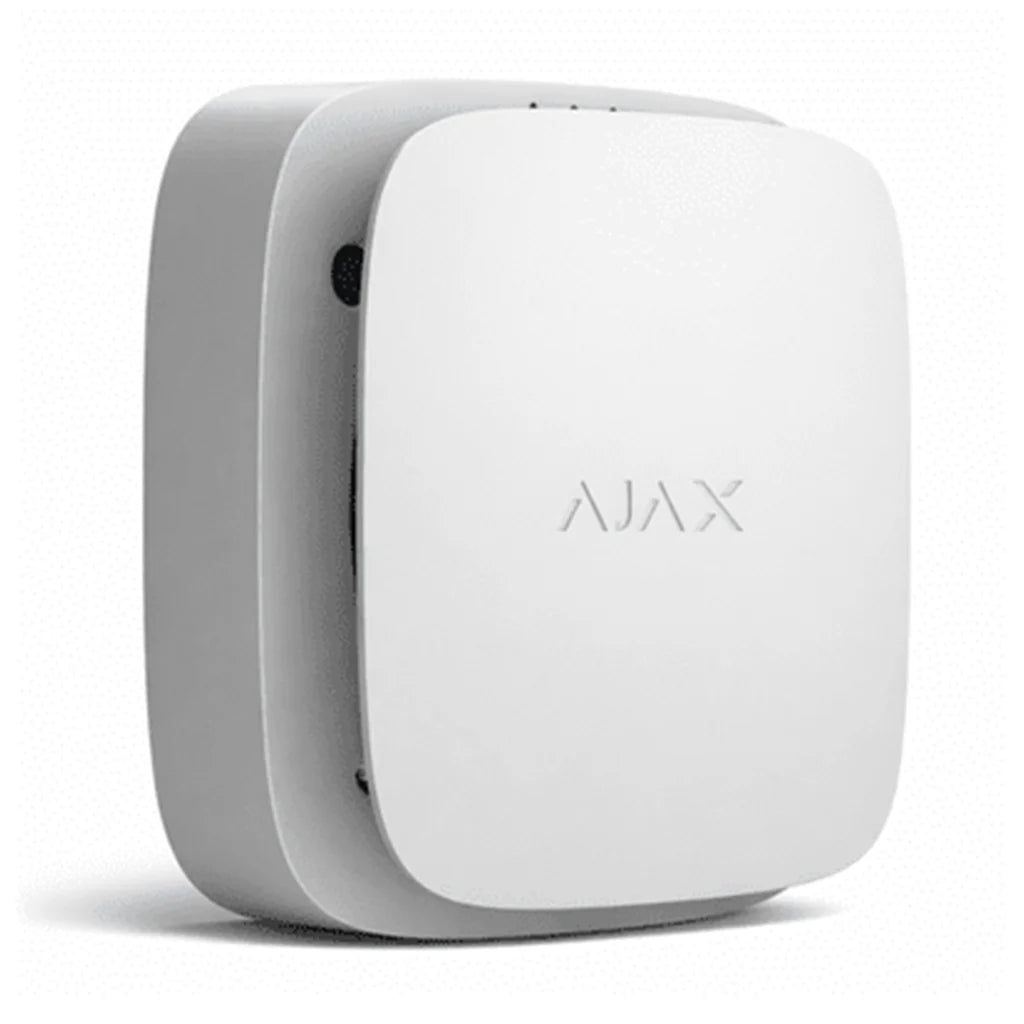

Ajax EN54 FireProtect (Smoke) Jeweller White Wireless Smoke Detector
The Ajax EN54 FireProtect (Smoke) Jeweller is a wireless addressable point smoke detector (model FP.54S.J), developed for use in EN54-compliant fire detection systems. It identifies the presence of smoke using a dual-spectrum optical sensor and transmits alarm and event data to the Ajax control and indicating equipment (CIE) over the secure Jeweller radio protocol, providing certified early warning of fire.
Unlike domestic-grade smoke alarms, the EN54 FireProtect line is certified to the European EN 54 fire standards, making it suitable for commercial and regulated installations where certified equipment is required. This "Smoke" model focuses purely on detection; audible warning is provided by companion FireProtect sounder devices on the same system.
Dual-Spectrum Optical Smoke Detection
The detector identifies smoke using a dual-spectrum optical sensor. Inside the sealed smoke chamber, blue and infrared LEDs emit light at two different wavelengths, allowing the detector to assess the size of volatile particles and reliably distinguish genuine smoke from harmless airborne particles.
The HazeFlow software algorithm processes sensor data to confirm real fire events and help reduce false alarms, while the patented smoke chamber design shields the sensor from dust, dirt and insects and does not react to water vapour.
EN 54 Certified Fire Protection
The detector is certified under the Construction Products Regulation (CPR) to multiple parts of the European EN 54 standard:
-
EN 54-7 — smoke detectors (point detectors using scattered light)
-
EN 54-25 — components using radio links
-
EN 54-13 — system compatibility assessment
This certification makes the device suitable for professional and regulated fire detection installations where EN 54 compliance is mandatory.
Secure Jeweller Wireless Communication
The detector communicates with the Ajax CIE using the encrypted, two-way Jeweller radio protocol, with a communication range of up to 1,700 metres in open space to the hub or a compatible range extender.
Jeweller provides frequency hopping, device authentication and block encryption with a dynamic key to protect against interference and spoofing. The device polls the hub at regular intervals, and loss of communication is detected and reported so faults never go unnoticed.
Long Battery Life
The detector is powered by two pre-installed CR123A lithium batteries, providing up to six years of autonomous operation under normal conditions. Batteries can be replaced without tools, and the device includes reverse-polarity protection.
Battery status is continuously monitored and reported to the Ajax app, with early low-battery notifications sent in advance to allow planned maintenance.
Tamper and Sabotage Protection
The detector features a tamper button that detects removal of the device from its SmartBracket mounting panel and immediately reports it to system users and the monitoring company as a fault.
Device authentication protects against spoofing, ensuring only genuine Ajax devices can be paired with the system.
Quick Professional Installation
The included SmartBracket mounting panel enables straightforward installation without disassembling the detector. Once mounted, the detector can be rotated up to 90° to align the branding or LED, and an optional lock secures the device so it cannot be removed without a special tool.
The device is designed for indoor use only and should be installed in a position providing a Medium or Strong signal as required by EN 54.
KEY BENEFITS
- EN 54 certified for professional and regulated fire installations
- Reliable early smoke detection with a dual-spectrum optical sensor
- HazeFlow algorithm helps reduce false alarms
- Patented smoke chamber shielded from dust, dirt and insects
- Does not react to water vapour
- Encrypted Jeweller wireless communication up to 1,700 m
- Up to six years of battery life from pre-installed CR123A batteries
- Tamper protection against removal
- SmartBracket enables fast tool-free installation
- Available in White finish
- Suitable for residential, commercial and public buildings
KEY FEATURES
- Wireless addressable point smoke detector
- Dual-spectrum optical smoke sensor (blue and infrared LEDs)
- HazeFlow false-alarm reduction algorithm
- Certified to EN 54-7, EN 54-25 and EN 54-13
- Secure Jeweller two-way wireless protocol
- Communication range up to 1,700 m in open space
- 2 × CR123A batteries pre-installed
- Battery life up to 6 years
- Tool-free battery replacement with reverse-polarity protection
- Tamper button (removal detection)
- SmartBracket mounting panel, rotatable up to 90°
- IP20 protection rating
- UL 94 V-0 flammability rating
- LED status indication (red / yellow / green)
- Indoor installation only
- White finish
IDEAL FOR
- Offices and commercial premises
- Retail shops and shopping centres
- Hotels and hospitality venues
- Residential apartments and houses
- Public and educational buildings
- Warehouses and storage areas
- Hallways, corridors and escape routes
- Installations requiring EN 54 certified fire detection
- Systems using separate FireProtect sounders for audible warning
- Professional Ajax fire and security systems
SYSTEM COMPATIBILITY
- Requires an Ajax control and indicating equipment (CIE) / hub running an up-to-date OS Malevich
- Compatible with Ajax Hub 2 (2G)
- Compatible with Ajax Hub 2 (4G)
- Compatible with Ajax Hub 2 Plus
- Compatible with Ajax Hub Hybrid (2G)
- Compatible with Ajax Hub Hybrid (4G)
- Compatible with Ajax ReX 2 range extender
- Uses Ajax Jeweller encrypted wireless communication
- Pairs with one CIE / hub at a time
- Managed via Ajax mobile applications (iOS and Android)
- Managed via Ajax desktop applications (Windows and macOS)
- Supports Ajax Cloud remote management
- Supports Over-the-Air (OTA) firmware updates
| Specification |
Details |
| Brand |
Ajax |
| Model |
EN54 FireProtect (Smoke) Jeweller |
| Article Number |
119921.275.WH1 |
| Device Model Code |
FP.54S.J |
| Product Type |
Wireless Point Smoke Detector |
| Product Line |
EN54 FireProtect |
| Detection Technology |
Dual-Spectrum Optical Smoke Sensor |
| False Alarm Prevention |
HazeFlow Algorithm |
| Built-In Sounder |
No |
| EN 54 Certifications |
EN 54-7, EN 54-25, EN 54-13 |
| Wireless Technology |
Jeweller |
| Radio Communication Range |
Up to 1,700 m (open space) |
| Tamper Protection |
Yes |
| LED Indication |
Yes (red / yellow / green) |
| Power Supply |
2 × CR123A Lithium Batteries (Pre-installed) |
| Battery Life |
Up to 6 Years |
| Battery Replacement |
Tool-free, reverse-polarity protected |
| Protection Rating |
IP20 |
| Flammability Rating |
UL 94 V-0 |
| Operating Temperature |
0°C to +50°C |
| Operating Humidity |
Up to 80% Non-condensing |
| Dimensions |
124 × 124 × 48 mm |
| Weight |
281 g |
| Colour |
White |
| Material |
High-quality Plastic |
| Mounting |
SmartBracket Mounting Panel |
| Indoor / Outdoor |
Indoor Use Only |
| Warranty |
24 Months |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the Ajax EN54 FireProtect (Smoke) Jeweller used for?
It is a wireless EN54-certified point smoke detector that identifies the presence of smoke using a dual-spectrum optical sensor and transmits alarm and event data to the Ajax control and indicating equipment (CIE) over the secure Jeweller protocol. It is suitable for professional fire detection in residential, commercial and public buildings.
Does this model have a built-in sounder?
No. The "(Smoke)" model is a detector only and does not include an integrated sounder. Audible warning is provided by companion FireProtect sounder devices (such as the Smoke/Sounder, Heat/Sounder or Sounder/VAD models) on the same Ajax system. If you need detection and sound in one device, choose the EN54 FireProtect (Smoke/Sounder) model instead.
What does EN54 certification mean?
EN 54 is the European standard for fire detection and fire alarm systems. This detector is certified under the Construction Products Regulation to EN 54-7 (smoke detectors), EN 54-25 (radio-linked components) and EN 54-13 (system compatibility), making it suitable for regulated and professional fire installations.
How does it avoid false alarms?
The dual-spectrum optical sensor assesses the size of airborne particles using blue and infrared light, and the HazeFlow software algorithm processes this data to confirm genuine fire events. The patented smoke chamber is shielded from dust, dirt and insects and does not react to water vapour, helping to minimise false activations.
Does it need a specific Ajax hub?
Yes. The detector requires an Ajax control and indicating equipment (CIE) / hub running an up-to-date OS Malevich, such as the Hub 2 (2G/4G), Hub 2 Plus or Hub Hybrid. Always confirm compatibility using the Ajax compatibility tool before purchase.
How is the detector powered?
It operates from two pre-installed CR123A lithium batteries, providing up to six years of autonomous operation under normal conditions. Batteries can be replaced without tools, and status is monitored and reported in the Ajax app with early low-battery notifications.
Can it be installed outdoors?
No. The EN54 FireProtect (Smoke) Jeweller is designed for indoor use only and carries an IP20 protection rating. It should be installed indoors, away from areas with excessive dust, steam or temperature extremes.
What colour options are available?
This product (article 119921.275.WH1) is the White version. A Black variant is also available under a separate article number.
