The Ajax EN54 Fire Hub Jeweller White is a professional wireless Control and Indicating Equipment (CIE) designed for EN54-compliant fire alarm systems. Featuring a 10.1-inch touchscreen, encrypted Jeweller communication, multiple connectivity options and support for fire, intrusion, automation and video integration, it provides centralised management for commercial and public-sector fire protection systems.
Ajax EN54 Fire Hub Jeweller White Wireless Fire Alarm Control Panel

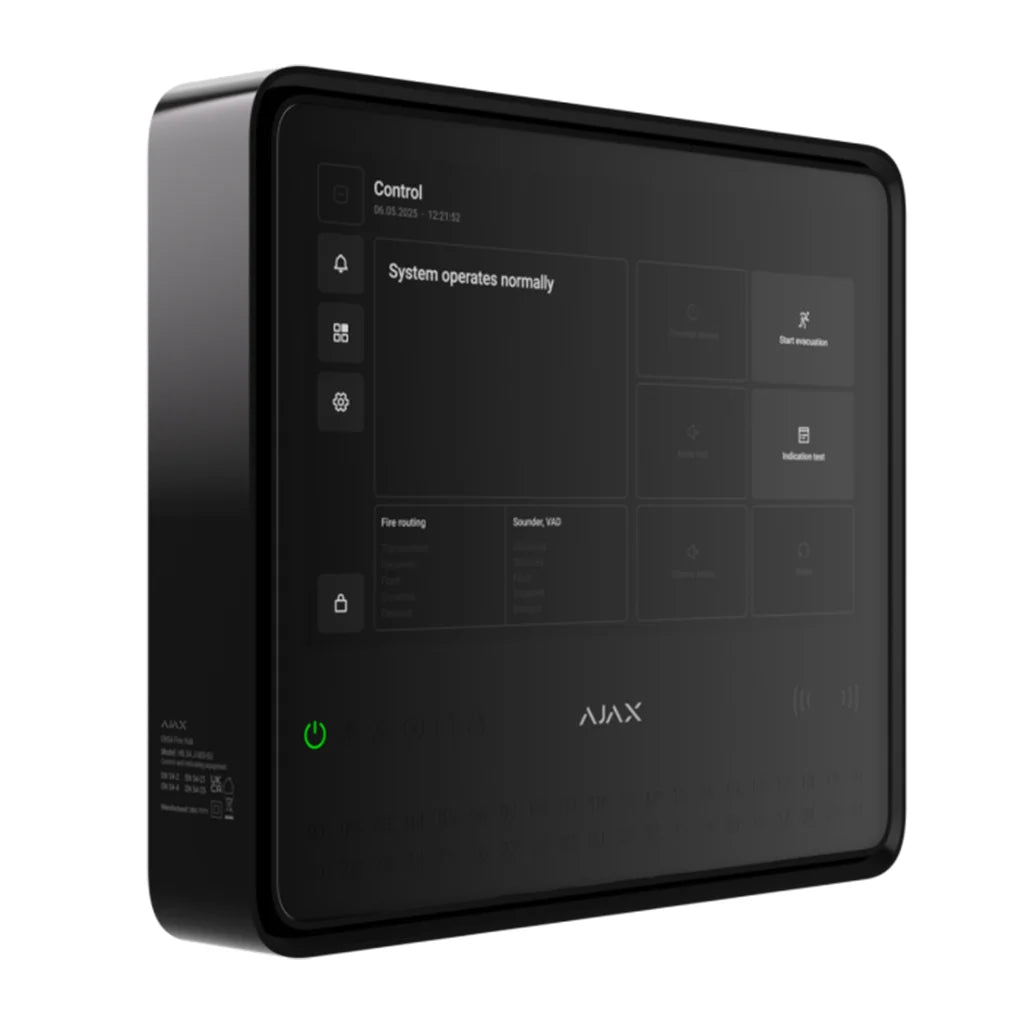

The Ajax EN54 Fire Hub Jeweller is the central control panel for the Ajax EN54 wireless fire alarm system. Acting as the Control and Indicating Equipment (CIE), it manages connected fire detectors, notification devices and supporting security equipment while providing operators with a clear overview of system status through its integrated 10.1-inch IPS touchscreen.
Designed for commercial buildings, public facilities, educational premises, healthcare environments and other professionally managed sites, the EN54 Fire Hub combines certified fire alarm management with Ajax intrusion protection, automation and video surveillance into a single platform.
Professional EN54 Fire Alarm Management
The EN54 Fire Hub serves as the heart of an Ajax EN54 fire alarm installation, continuously monitoring connected devices and coordinating alarm responses when required.
It supports up to 200 Ajax wireless devices across 40 fire zones, enabling installers to design scalable fire protection systems suitable for a wide variety of building types. The intuitive touchscreen interface provides fast access to system status, alarms, faults, disablements and maintenance functions.
Integrated Fire, Intrusion and Automation
Unlike traditional fire alarm control panels, the EN54 Fire Hub can also manage compatible Ajax intrusion detection devices, automation products and video surveillance equipment within the same ecosystem.
This unified approach allows users to monitor multiple building protection systems from a single platform while simplifying everyday operation and remote management.
Secure Jeweller and Wings Communication
The hub communicates with compatible Ajax devices using Jeweller, Ajax's encrypted wireless radio protocol for alarms and system events.
Where image transmission is required, compatible MotionCam devices use the separate Wings protocol to deliver photo verification securely and efficiently.
Communication features include:
- Encrypted two-way radio communication
- Device authentication
- Frequency hopping
- Continuous device supervision
- Anti-jamming protection
- Fast alarm transmission
These technologies help maintain reliable operation across professional wireless fire alarm installations.
Multiple Communication Paths
To improve reliability, the EN54 Fire Hub supports multiple communication methods including:
- Ethernet
- Wi-Fi
- Dual micro SIM connectivity
This provides flexible network configuration options while allowing the system to remain connected through alternative communication channels where available.
Optional Backup Battery
The hub operates from mains power and supports optional Ajax 24-hour or 72-hour internal backup batteries, allowing continued operation during mains power interruptions.
Please note: The backup battery is not supplied with the hub and must be purchased separately.
Designed for Professional Installations
The Ajax EN54 Fire Hub is intended for professionally designed fire alarm systems in commercial and public buildings where compliance, reliability and simplified system management are essential. Combined with the Ajax EN54 product range, it provides a modern wireless alternative to many traditional wired fire alarm control systems.
KEY BENEFITS
- Central control panel for Ajax EN54 wireless fire alarm systems
- Certified EN54 Control and Indicating Equipment (CIE)
- Large 10.1-inch IPS touchscreen for intuitive operation
- Supports up to 200 wireless Ajax devices
- Supports up to 40 fire zones
- Integrates fire protection, intrusion detection, automation and video surveillance
- Secure Jeweller and Wings encrypted communication
- Ethernet, Wi-Fi and dual SIM connectivity
- Optional 24-hour or 72-hour backup battery support
- Suitable for commercial, educational, healthcare and public-sector buildings
KEY FEATURES
- EN54 Fire Hub Jeweller
- Wireless fire alarm control panel
- Control and Indicating Equipment (CIE)
- 10.1-inch IPS touchscreen
- Jeweller communication
- Wings image transmission
- Ethernet connectivity
- Wi-Fi connectivity
- Dual micro SIM support
- Up to 200 wireless devices
- Up to 40 fire zones
- Up to 64 automation scenarios
- SmartBracket mounting
- Tamper protection
- White finish
IDEAL FOR
- Commercial buildings
- Office complexes
- Schools and colleges
- Universities
- Healthcare facilities
- Care homes
- Hotels
- Warehouses
- Public buildings
- Industrial facilities
- Municipal buildings
- Professional EN54 fire alarm installations
SYSTEM COMPATIBILITY
- Compatible with Ajax EN54 FireProtect 2 detectors
- Compatible with Ajax FireProtect 2 Jeweller series
- Compatible with Ajax ManualCallPoint Jeweller
- Compatible with Ajax HomeSiren Jeweller
- Compatible with Ajax StreetSiren Jeweller
- Compatible with Ajax StreetSiren DoubleDeck Jeweller
- Compatible with Ajax LightSwitch Jeweller
- Compatible with Ajax Relay Jeweller
- Compatible with Ajax WallSwitch Jeweller
- Compatible with Ajax Socket Jeweller
- Compatible with Ajax MotionCam series (photo verification)
- Compatible with Ajax MotionProtect series
- Compatible with Ajax DoorProtect series
- Compatible with Ajax KeyPad series
- Compatible with Ajax SpaceControl Jeweller
- Compatible with Ajax Button Jeweller
- Compatible with Ajax DoubleButton Jeweller
- Compatible with Ajax ReX Jeweller
- Compatible with Ajax ReX 2 Jeweller
- Supports Ajax mobile applications (iOS and Android)
- Supports Ajax PRO desktop software (Windows and macOS)
- Supports Ajax Cloud remote management
- Supports SIA DC-09 alarm receiving stations
- Supports CMS monitoring integration
| Specification |
Details |
| Brand |
Ajax |
| Model |
EN54 Fire Hub Jeweller |
| Part Number |
125732.315.WH |
| Product Type |
Wireless Fire Alarm Control & Indicating Equipment (CIE) |
| Display |
10.1-inch IPS Touchscreen |
| Operating System |
Ajax OS Malevich |
| Maximum Devices |
Up to 200 Ajax wireless devices |
| Fire Zones |
Up to 40 |
| Rooms (Spaces) |
Up to 80 |
| Automation Scenarios |
Up to 64 |
| User Capacity |
Up to 200 Users |
| Communication Technologies |
Jeweller, Wings |
| Ethernet |
Yes |
| Wi-Fi |
IEEE 802.11 b/g/n (2.4 GHz) |
| Mobile Network |
Dual Micro SIM (2G/3G/LTE depending on region) |
| Radio Communication Range |
Up to 2,000 m (Jeweller, open space) |
| Wings Communication Range |
Up to 1,700 m (open space) |
| Alarm Transmission Time |
Approximately 0.15 seconds |
| Backup Battery |
Optional 24-hour or 72-hour battery pack |
| Power Supply |
110–240V AC, 50/60 Hz |
| Tamper Protection |
Yes |
| Event Log |
Supported |
| Remote Configuration |
Yes |
| Firmware Updates |
Over-the-Air (OTA) |
| Colour |
White |
| Installation |
Indoor |
| Operating Temperature |
+5°C to +40°C |
| Operating Humidity |
Up to 75% Non-condensing |
| Protection Rating |
IP20 |
| Dimensions |
584 × 434 × 92 mm |
| Weight |
Approx. 10.5 kg (without backup battery) |
| Certifications |
EN 54-2, EN 54-4, EN 54-13, EN 54-21 (where applicable), CPR |
| Warranty |
Not specified |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the Ajax EN54 Fire Hub Jeweller?
The Ajax EN54 Fire Hub Jeweller is a professional wireless fire alarm control and indicating panel (CIE) designed for EN54-compliant fire detection systems. It manages connected fire detectors, notification devices and compatible Ajax security products from a single control platform.
Is this an EN54-certified fire alarm control panel?
Yes. Ajax confirms that the EN54 Fire Hub Jeweller has been developed for EN54-compliant fire alarm installations and is certified to the applicable EN54 standards listed for the product.
How many devices can it support?
The hub supports up to 200 compatible Ajax wireless devices, allowing it to be used in small, medium and many large commercial fire alarm installations.
Does it support photo verification?
Yes. The hub is compatible with Ajax MotionCam devices, allowing photo verification of alarm events using Ajax Wings image transmission technology.
What communication methods are available?
The EN54 Fire Hub supports:
- Ethernet
- Wi-Fi
- Dual Micro SIM mobile communication
These communication paths can improve system resilience and remote connectivity.
Does it include a backup battery?
No. The hub supports optional 24-hour and 72-hour backup battery packs, but these are not included and must be purchased separately.
Can it manage intrusion detection as well as fire protection?
Yes. In addition to compatible Ajax fire devices, the hub can integrate compatible Ajax intrusion detection, automation and selected video verification devices within the same ecosystem.
Is the hub suitable for residential properties?
While it can technically be installed in larger residential projects, the EN54 Fire Hub is primarily intended for commercial, educational, healthcare, industrial and public-sector buildings requiring a certified wireless fire alarm solution.
Can the system be managed remotely?
Yes. The hub supports remote monitoring, configuration and maintenance using the Ajax mobile applications, Ajax PRO desktop software and compatible monitoring stations.
Is professional installation required?
Yes. The EN54 Fire Hub Jeweller is intended for professional fire alarm system design, installation and commissioning in accordance with local fire regulations and applicable standards.
