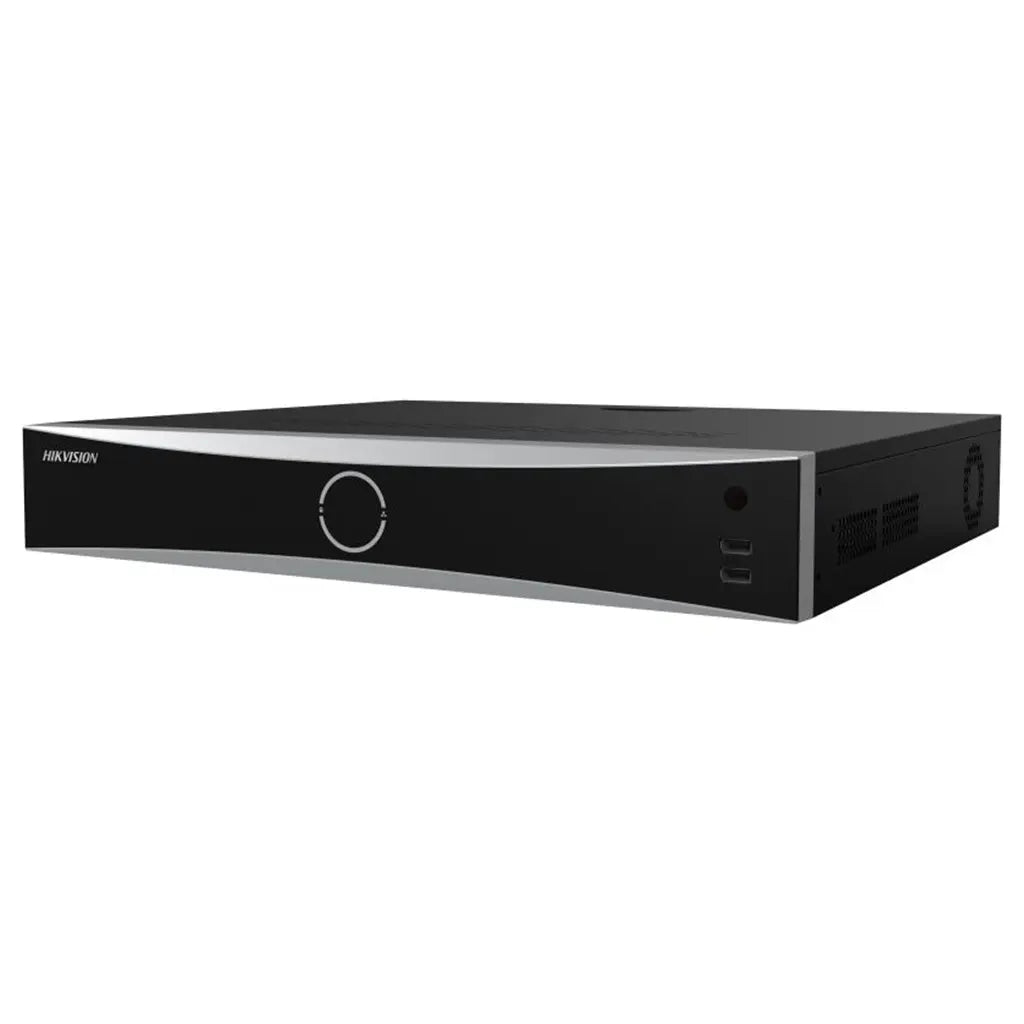

Hikvision iDS-7716NXI-M4/16P/X 16-Channel 16-PoE DeepinMind NVR

The Hikvision iDS-7716NXI-M4/16P/X is a 16-channel, 16-PoE DeepinMind network video recorder for professional IP surveillance systems. Hikvision’s official specification confirms support for up to 16 IP cameras with plug-and-play connection through 16 PoE interfaces.

Hikvision iDS-7716NXI-M4/16P/X 16-Channel 16-PoE DeepinMind NVR

This DeepinMind M Series recorder combines high-resolution recording with deep-learning analytics. It supports H.265+, H.265, H.264+ and H.264 video formats, up to 16-channel synchronous playback and up to four SATA hard drives.

Key Features

• 16 IP camera inputs
• 16 built-in PoE interfaces with IEEE 802.3af/at support
• Up to 2-ch@32 MP, 2-ch@24 MP, 4-ch@12 MP, 8-ch@8 MP or 16-ch@4 MP decoding capacity
• H.265+, H.265, H.264+ and H.264 video formats
• Deep-learning intelligent analytics
• Up to 16-channel perimeter protection
• Up to 16-channel facial recognition
• Up to 12-channel video structuralization
• Independent HDMI and VGA outputs
• Up to 4 SATA interfaces
• Up to 16 TB capacity per HDD
• Up to 16-channel synchronous playback

Technical Specifications

Frequently Asked Questions

How many IP cameras can the iDS-7716NXI-M4/16P/X connect?

Up to 16 IP cameras.

How many PoE ports does it have?

It has 16 PoE interfaces for direct plug-and-play camera connection.

How many hard drives can it support?

It supports up to four SATA hard drives, with up to 16 TB capacity per HDD according to Hikvision’s specification.
