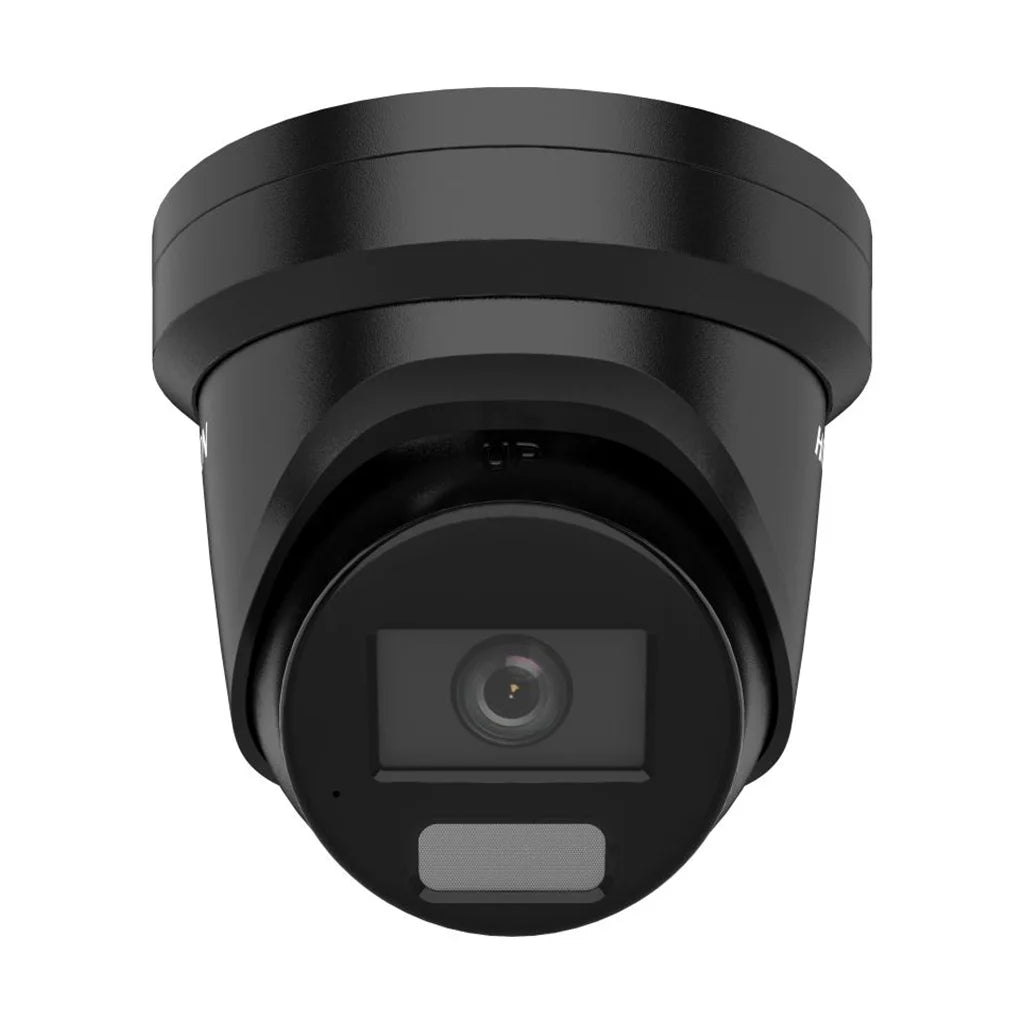

Black Hikvision DS-2CD2387G2H-LIU Product Overview
The Hikvision DS-2CD2387G2H-LIU(2.8mm)(eF) in black is an 8MP ColorVu Smart Hybrid Light fixed turret network camera with a built-in microphone. The exact base model remains DS-2CD2387G2H-LIU(2.8mm)(eF); black describes the supplied housing finish rather than changing the core model code.
Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3840 × 2160. The fixed 2.8mm F1.0 lens provides a 108.8° horizontal field of view, while infrared and white-light illumination reach up to 40 metres. The camera also provides 130dB WDR, human and vehicle classification, face capture, scene-change detection and local storage up to 512GB. No built-in speaker, external audio input/output or alarm input/output is stated for this exact LIU model.
Key Benefits
-
Black metal finish: suited to installations where a darker camera housing is required.
-
4K 8MP detail: captures up to 3840 × 2160 for detailed monitoring and playback.
-
Wide fixed view: the 2.8mm lens provides 108.8° horizontal scene coverage.
-
ColorVu and Smart Hybrid Light: support colour-focused low-light monitoring with infrared and white-light options.
-
Human and vehicle classification: supported events can focus on relevant target types.
-
Built-in microphone: records audio without implying speaker playback.
-
Local recording: compatible memory cards up to 512GB are supported.
-
IP67 protection: supports correctly installed indoor or outdoor use.
Key Features
- 8MP maximum resolution of 3840 × 2160
- Black metal turret housing
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed F1.0 lens
- 108.8° horizontal, 56.4° vertical and 134.3° diagonal field of view
- Minimum colour illumination of 0.0008 lux
- Infrared and white light up to 40 metres
- Smart Hybrid Light
- 130dB WDR
- Human and vehicle classification
- Face capture and scene-change detection
- Built-in microphone
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE
- IP67 weather resistance
Technical Specifications
| Base model |
DS-2CD2387G2H-LIU(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3840 × 2160 |
| Maximum frame rate |
25fps at 3840 × 2160 in 50Hz mode; 24fps in 60Hz mode, with up to 30fps at supported lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.0 with AGC on; 0 lux with supplement light |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 108.8°; vertical 56.4°; diagonal 134.3° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° during installation |
| Supplement light |
Infrared and white light up to 40m with Smart Hybrid Light |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification for supported events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone |
| Speaker and external interfaces |
No built-in speaker, external audio input/output or alarm input/output stated |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 6.5W; IEEE 802.3af PoE Class 3, maximum 8W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Protection |
IP67; no specific anti-corrosion protection level stated |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 770g |
Night Imaging, Audio and Compatibility
ColorVu and Smart Hybrid Light support colour-focused monitoring with infrared and white-light options. The built-in microphone records audio, but no speaker or output is stated, so the camera is not presented as a two-way-audio or active-deterrence model.
Confirm NVR 8MP decoding, required frame rate, human-and-vehicle analytics, audio recording, Smart Hybrid Light controls, PoE capacity, storage-card compatibility and mounting accessories before ordering.
Frequently Asked Questions
Is this the black version?
Yes. Black describes the finish; the base model remains DS-2CD2387G2H-LIU(2.8mm)(eF).
What is the maximum resolution?
3840 × 2160.
What is the field of view?
108.8° horizontal, 56.4° vertical and 134.3° diagonal.
What is Smart Hybrid Light?
Configurable infrared and white-light operation.
What is the illumination range?
Up to 40 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported events.
Does it have a microphone?
Yes.
Does it support two-way audio?
No built-in speaker or audio output is stated.
What storage is supported?
Compatible cards up to 512GB.
What protection applies?
IP67.
