The HiLook DVR-108G-M1/T is an 8-channel 1080p Lite mini 1U Turbo HD digital video recorder supporting hybrid analog and IP camera inputs with deep-learning motion detection, designed for compact small-site installations.

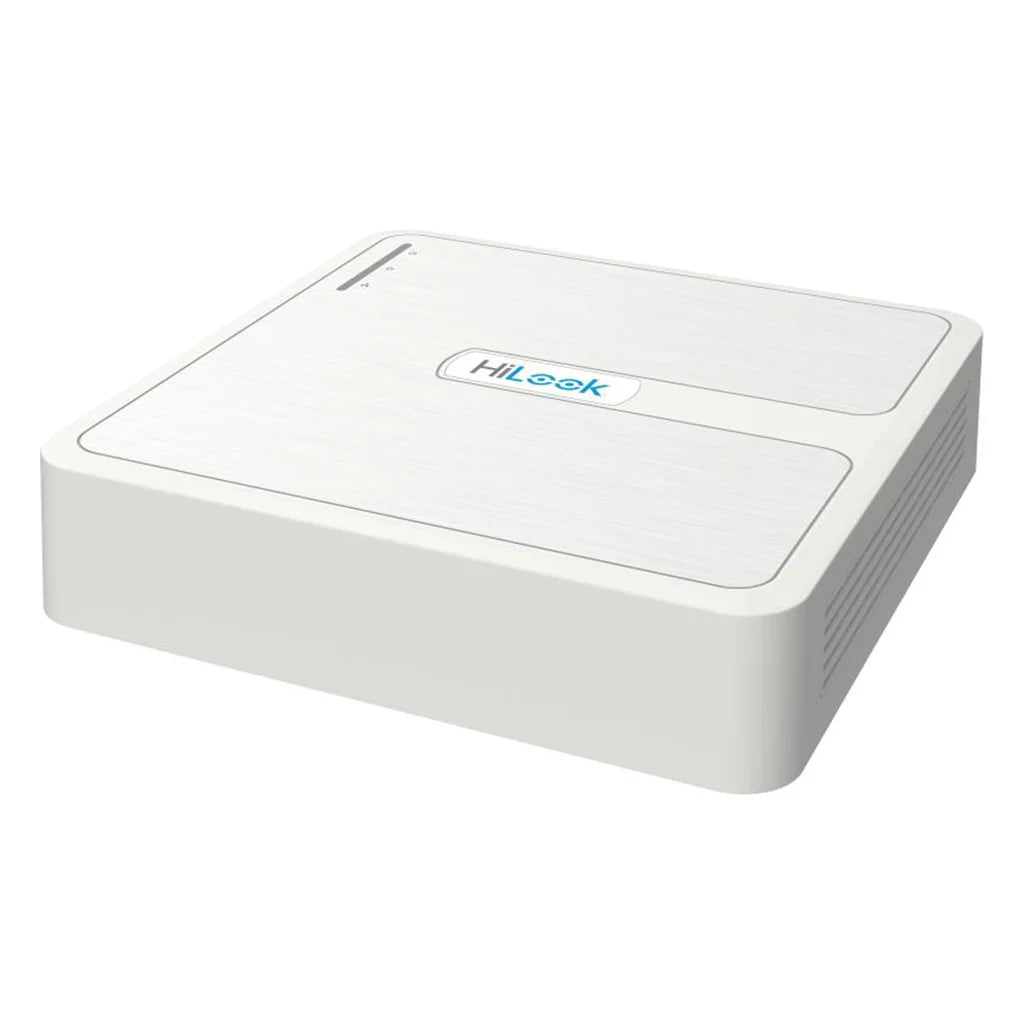

HiLook DVR-108G-M1/T 8-Channel 1080p Lite Mini H.265 Turbo HD DVR
The DVR-108G-M1/T accepts 8 analog channels (HDTVI/AHD/CVI/CVBS) plus up to 10 additional IP camera channels (up to 5MP), in a compact mini 1U chassis. Video is encoded using H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression.
Deep-learning-based Motion Detection 2.0 classifies movement as human or vehicle, and the recorder supports extended coaxial transmission distances of up to 1200m for 720p HDTVI signals, useful for sites with long cable runs.
Hybrid Analog/IP Recording
8 analog (HDTVI/AHD/CVI/CVBS) channels plus up to 10 IP camera channels (up to 5MP) can be combined on one recorder, in a compact mini chassis footprint.
1080p Lite & 720p Lite Recording
The recorder supports 1080p Lite and 720p Lite recording modes (alongside WD1/4CIF/VGA/CIF) at up to 15fps on the main stream, keeping storage requirements manageable for budget installations.
Motion Detection 2.0
Deep-learning-based Motion Detection 2.0 classifies detected movement as human or vehicle, reducing false alerts, with quick search by object or event type during playback.
Extended Coax Distance
Supports HDTVI signal transmission over coax up to 1200m at 720p, useful for larger sites or long cable runs to distant analog cameras.
KEY BENEFITS
- Reduced false alarms from human/vehicle motion classification
- Flexible hybrid installation combining analog and IP cameras on one recorder
- Compact mini 1U chassis suits space-constrained installs
- Lower storage costs from H.265 Pro+ compression
- Long coax cable runs supported (up to 1200m at 720p)
KEY FEATURES
- 8-channel mini 1U hybrid DVR (HDTVI/AHD/CVI/CVBS)
- Up to 10-ch IP camera input (up to 5MP)
- H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 video compression
- 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF recording resolutions
- Deep-learning Motion Detection 2.0 — human and vehicle classification
- Up to 1200m coax transmission distance (720p HDTVI)
- Audio via coaxial cable
IDEAL FOR
- Small retail units and shops
- Home and residential CCTV systems
- Small offices needing hybrid analog/IP recording
- Space-constrained installations needing a compact mini-DVR chassis
- Sites with long cable runs to analog cameras (up to 1200m at 720p)
- Budget-conscious hybrid analog/IP deployments
- Sites wanting deep-learning motion filtering without a full NVR system
| Specification |
Details |
| Brand |
HiLook by Hikvision |
| Model |
DVR-108G-M1/T |
| Product Type |
Digital Video Recorder |
| Channels |
8-channel analog (HDTVI/AHD/CVI/CVBS), plus up to 10-ch IP (up to 5MP) |
| Recording Resolution |
1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Frame Rate |
Up to 15fps main stream (1080p Lite/720p Lite/WD1/4CIF/VGA/CIF) |
| Smart Detection |
Motion Detection 2.0 — human and vehicle classification (deep learning) |
| Coax Transmission Distance |
Up to 1200m (720p HDTVI) |
| Audio |
Via coaxial cable |
| Chassis |
Mini 1U |
| Power / HDD / Weight / Dimensions |
Not confirmed from the pages reviewed — verify before publishing |
| Warranty |
Manufacturer standard warranty (confirm current term before publishing) |
COMMON QUESTIONS
How many cameras can the DVR-108G-M1/T support?
8 analog channels (HDTVI/AHD/CVI/CVBS) plus up to 10 additional IP camera channels (up to 5MP).
How far can analog cameras be from the recorder?
Up to 1200m over coax for 720p HDTVI signals.
Does it support human/vehicle detection?
Yes, deep-learning Motion Detection 2.0 classifies movement as human or vehicle.
What is 1080p Lite / 720p Lite?
Reduced-bitrate recording modes giving an image effect similar to full resolution, at lower storage cost.
