The Ajax NVR (8-ch) White is an 8-channel network video recorder that brings IP camera surveillance into the Ajax ecosystem. Supporting up to 4K recording, a single SATA drive up to 16 TB, ONVIF/RTSP camera compatibility and encrypted JetSparrow video streaming, it delivers fast, secure video management and instant alarm verification through the Ajax app.

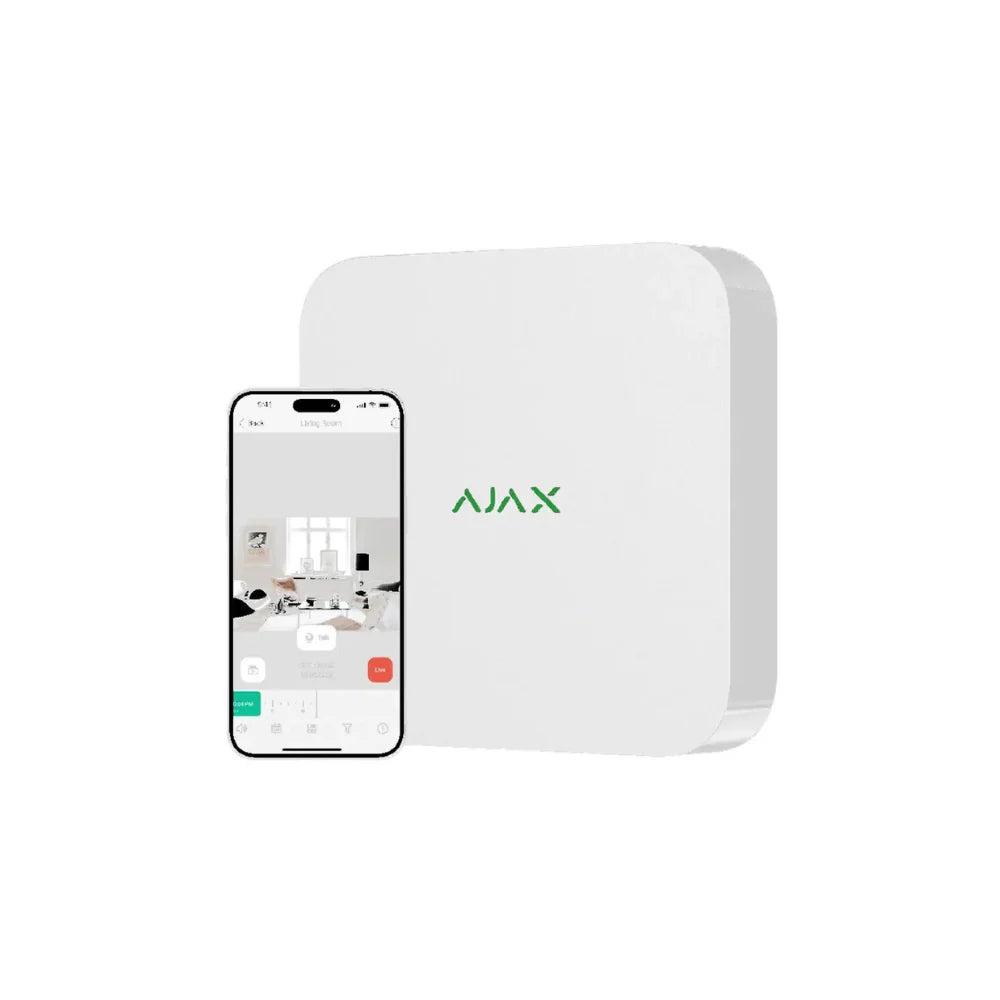

Ajax NVR (8-ch) White 8-Channel Network Video Recorder

The Ajax NVR (8-ch) is a network video recorder that unites video surveillance with Ajax security and automation. It records and manages up to eight IP cameras — Ajax or compatible third-party ONVIF/RTSP models — storing footage locally on a SATA hard drive and making it instantly accessible through the Ajax app alongside the rest of the system.

Using Ajax's encrypted JetSparrow peer-to-peer video protocol and Ajax Cloud for events, the NVR delivers rapid archive access and high-resolution alarm verification, whether on site or remotely.

8-Channel 4K Recording

The NVR supports up to eight camera channels at resolutions up to 4K (25/30 fps), with H.265 and H.264 decoding for efficient storage and smooth playback of high-resolution footage.

Up to 16 TB Local Storage

A single SATA drive of up to 16 TB (2.5″ or 3.5″, sold separately) provides ample local storage for continuous and event-based recording. HDD status is monitored and reported in the Ajax app so you are alerted to any storage issues.

Wide Camera Compatibility

Support for ONVIF (Profile S/T) and RTSP means the NVR works with almost any IP camera, letting you integrate existing third-party cameras into your Ajax system. An auto-search feature quickly finds cameras on the network for fast connection.

Smart Motion Detection and Fast Archive

Adjustable pixel-based motion detection with customisable zones ensures recording is triggered only by relevant movement, conserving drive space and streamlining archive navigation. Dual-stream technology and event synchronisation make finding footage fast, and a customisable virtual videowall organises your cameras.

Secure and Instant Alarm Verification

When Ajax detectors are triggered, associated cameras provide instant high-resolution alarm verification in the same app. Multi-tiered account security and encrypted JetSparrow streaming keep video private and protected.

Tamper Protection and Easy Installation

The included SmartBracket mounting panel simplifies installation and includes a tamper that alerts the system to any attempt to detach or move the device.

KEY BENEFITS

• Unites IP video surveillance with your Ajax system
• Records up to 8 cameras at up to 4K
• Supports a single SATA drive up to 16 TB
• Wide ONVIF/RTSP compatibility with third-party cameras
• Instant high-resolution alarm verification in the Ajax app
• Encrypted JetSparrow peer-to-peer video streaming
• Smart motion detection with custom zones saves storage
• Fast archive navigation and virtual videowall
• HDD health notifications in the app
• Tamper protection and simple SmartBracket mounting
• Available in White finish
• Ideal for homes and commercial premises

KEY FEATURES

• 8-channel network video recorder
• Up to 4K resolution (25/30 fps)
• H.265 / H.264 decoding
• 1 × SATA drive up to 16 TB (2.5″/3.5″, not included)
• ONVIF Profile S/T and RTSP support
• Automatic camera search
• Pixel motion detection with custom zones
• Dual-stream fast archive navigation
• Customisable virtual videowall
• Encrypted JetSparrow video protocol
• Ethernet up to 100 Mbps (RJ-45)
• Bluetooth for setup
• Mains power 110–240 V, up to 24 W
• IP20 rating
• Operating temperature 0°C to +40°C
• Tamper protection
• SmartBracket mounting panel
• Black and White options
• Indoor use only

IDEAL FOR

• Homes and apartments
• Offices and commercial premises
• Retail shops
• Warehouses and industrial units
• Multi-camera surveillance installations
• Integrating third-party IP cameras with Ajax
• Professional Ajax video monitoring systems

NETWORK & AJAX INTEGRATION

• Connects to the network via Ethernet (RJ-45)
• No built-in PoE — a separate PoE switch is required to power PoE cameras
• Records Ajax and third-party ONVIF/RTSP IP cameras
• Integrates instant alarm verification with Ajax detectors
• Managed via Ajax mobile applications (iOS and Android)
• Managed via Ajax desktop applications (Windows and macOS)
• Encrypted JetSparrow P2P video protocol
• Uses Ajax Cloud for system events
• Supports Ajax Cloud remote video access
• Supports Over-the-Air (OTA) firmware updates

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the Ajax NVR (8-ch) used for?

It is an 8-channel network video recorder that records and manages up to eight IP cameras, storing footage locally and making it accessible through the Ajax app. It unites video surveillance with Ajax security and automation, including instant alarm verification.

Does the NVR have built-in PoE?

No. This NVR does not include built-in PoE ports. To power PoE IP cameras you will need a separate PoE switch. The NVR connects to the network via a standard Ethernet cable.

What hard drive does it take?

It supports a single SATA drive (2.5″ or 3.5″) of up to 16 TB. The drive is not included and must be purchased separately.

Can it use third-party cameras?

Yes. It supports ONVIF (Profile S/T) and RTSP, making it compatible with almost any IP camera, so you can integrate existing third-party cameras into your Ajax system.

What resolution does it support?

The NVR records at up to 4K resolution (25/30 fps) with H.265 and H.264 decoding for efficient storage.

Is it for indoor or outdoor use?

The NVR is designed for indoor installation only, with an IP20 rating.

What plug type is this model?

This model (77612.122.WH) is supplied with a Type G (UK) plug and is finished in White.
