The Ajax KeyPad TouchScreen Jeweller White is a premium wireless keypad with a 5-inch IPS touchscreen for intuitive control of an Ajax security system. It supports arming and disarming via codes, Pass cards, Tag key fobs and smartphone, with encrypted DESFire authentication, three emergency buttons and tamper protection — combining professional security with an elegant, easy-to-use interface.

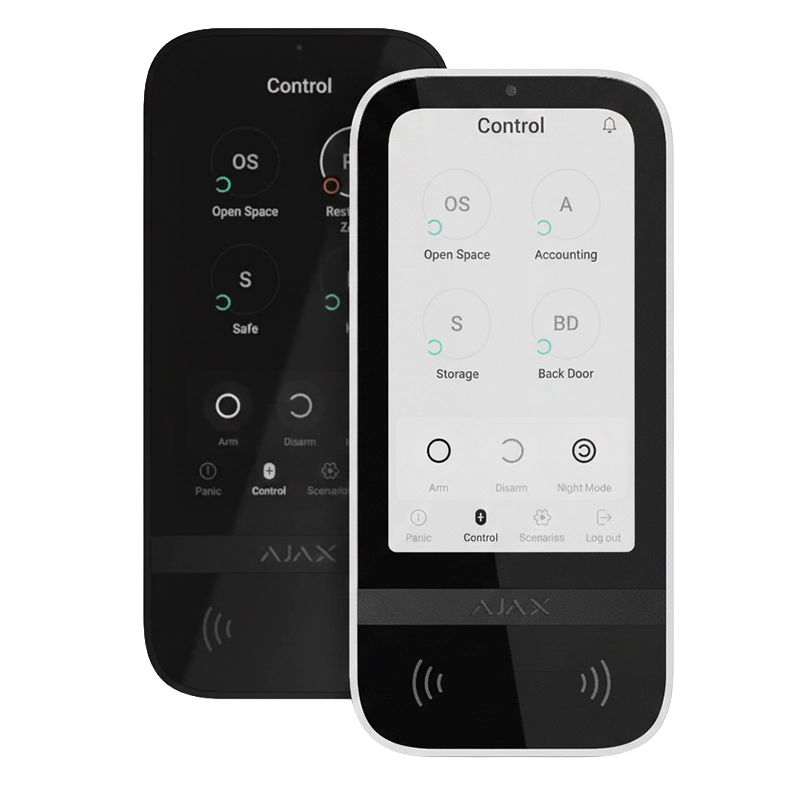

Ajax KeyPad TouchScreen Jeweller White Wireless Touchscreen Keypad

The Ajax KeyPad TouchScreen Jeweller is a wireless keyboard with a 5-inch capacitive IPS touchscreen that provides complete control over an Ajax security system from the wall. Users can arm and disarm the system, switch between security groups and modes, and respond to events directly from the clear graphical display.

Supporting multiple authentication methods and contactless access, it combines the convenience of a modern touchscreen with the encryption and reliability expected of a professional alarm system.

5-Inch Capacitive Touchscreen

The 5-inch IPS touchscreen (480 × 854 px) displays system status, security groups and controls in a clear, intuitive interface. The display activates as the user approaches, making everyday operation fast and simple.

Flexible Arming and Contactless Access

The system can be armed and disarmed using personal codes, Pass cards, Tag key fobs or a smartphone via Bluetooth. It supports up to 200 personal codes and contactless access using encrypted DESFire® EV1/EV2 cards and fobs to the ISO 14443 standard, with 128-bit encryption and copy protection.

Emergency Buttons

Three on-screen emergency buttons — panic, fire and auxiliary help — allow users to instantly raise an alarm or call for assistance directly from the keypad.

Duress and Anti-Tamper Security

The keypad supports duress codes to silently signal a forced disarm, and automatically locks after repeated incorrect code entries. A built-in tamper alerts the system to any attempt to detach or remove the device.

Flexible Power Options

The keypad is powered by six pre-installed AA batteries providing up to 1.5 years of life, and can also be connected to an external 12 V supply with the batteries acting as backup.

Secure Jeweller Communication

The keypad communicates with the Ajax hub over the encrypted, two-way Jeweller protocol at a range of up to 1,700 metres in open space, with Bluetooth Low Energy used for smartphone authentication.

KEY BENEFITS

• Elegant 5-inch IPS touchscreen control
• Arm and disarm by code, card, fob or smartphone
• Encrypted DESFire contactless access for up to 200 users
• Three emergency buttons: panic, fire and help
• Display activates automatically as you approach
• Duress code and auto-lock security
• Tamper protection against removal
• Flexible power: 6 × AA batteries or external 12 V
• Encrypted Jeweller wireless communication up to 1,700 m
• Manage security groups and modes from the wall
• Available in White finish
• Premium interface for homes and businesses

KEY FEATURES

• Wireless touchscreen keypad
• 5-inch capacitive IPS display (480 × 854 px)
• Arming via code, Pass card, Tag fob and smartphone (BLE)
• Up to 200 personal codes
• DESFire® EV1/EV2 contactless authentication (ISO 14443)
• Panic, fire and auxiliary emergency buttons
• Duress code support
• Auto-lock after incorrect attempts
• Built-in buzzer for alarms and delays
• Secure Jeweller two-way wireless protocol
• Communication range up to 1,700 m in open space
• Bluetooth Low Energy 4.2+
• 6 × AA batteries pre-installed
• Battery life up to 1.5 years
• External 12 V power option with battery backup
• Tamper protection
• Operating temperature −10°C to +40°C
• Black and White options
• Indoor use only

IDEAL FOR

• Homes and apartments
• Offices and commercial premises
• Retail shops
• Hotels and hospitality venues
• Entrances and reception areas
• Installations needing multi-user access control
• Professional Ajax security systems

SYSTEM COMPATIBILITY

• Compatible with Ajax Hub 2 (2G)
• Compatible with Ajax Hub 2 (4G)
• Compatible with Ajax Hub 2 Plus
• Compatible with Ajax Hub Hybrid (2G)
• Compatible with Ajax Hub Hybrid (4G)
• Compatible with Ajax ReX 2 range extender
• Uses Ajax Jeweller encrypted wireless communication
• Managed via Ajax mobile applications (iOS and Android)
• Managed via Ajax desktop applications (Windows and macOS)
• Supports Ajax Cloud remote management
• Supports Over-the-Air (OTA) firmware updates

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the Ajax KeyPad TouchScreen Jeweller used for?

It is a wireless touchscreen keypad for controlling an Ajax security system. Users can arm and disarm the system, switch security modes and groups, and trigger emergency alarms from a 5-inch IPS touchscreen on the wall.

How can the system be armed and disarmed?

The keypad supports personal codes, Pass cards, Tag key fobs and smartphone authentication via Bluetooth, with contactless access for up to 200 users using encrypted DESFire cards and fobs.

Does it have emergency buttons?

Yes. There are three on-screen emergency buttons — panic, fire and auxiliary help — allowing users to instantly raise an alarm or call for assistance.

How is it powered?

It runs on six pre-installed AA batteries providing up to 1.5 years of life, and can also be connected to an external 12 V supply with the batteries acting as backup.

Is it secure against code guessing?

Yes. It supports duress codes to silently signal a forced disarm and automatically locks after repeated incorrect code entries, with tamper protection against removal.

Is it for indoor or outdoor use?

The KeyPad TouchScreen is designed for indoor use only.

What colour options are available?

This product (article 58455.148.WH1) is the White version. A Black variant is also available under a separate article number.
