The Ajax MotionCam U Jeweller White is a wireless PIR motion detector with built-in photo verification, designed to provide accurate indoor intrusion detection with visual alarm confirmation. Featuring SmartDetect, pet immunity, encrypted Jeweller and Wings communication and up to four years of battery life, it is suited to expanding compatible Ajax security systems where visual verification is required.

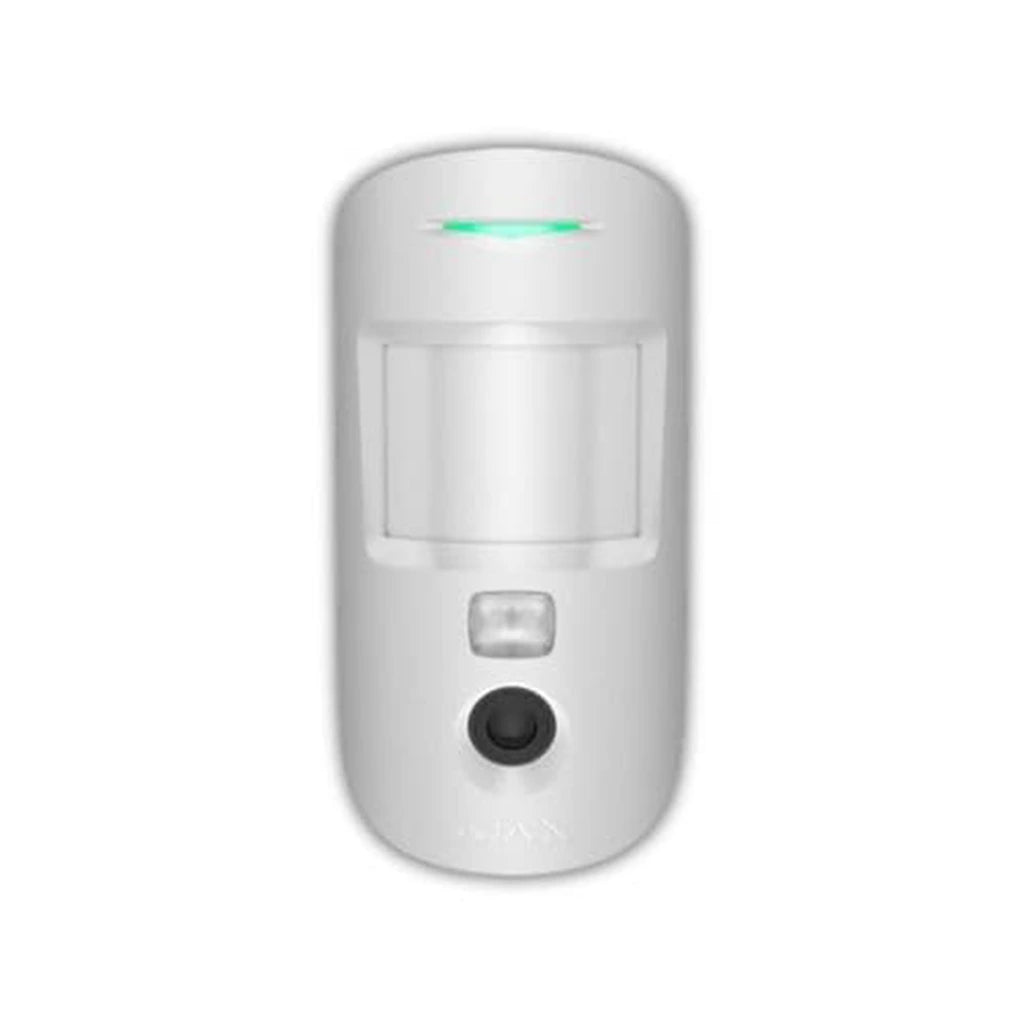

Ajax MotionCam U Jeweller White Wireless PIR Motion Detector with Photo Verification
The Ajax MotionCam U Jeweller is a wireless indoor PIR motion detector designed for use in residential and commercial Ajax security systems. It combines passive infrared motion detection with a built-in camera that captures photographic evidence when an alarm is triggered, delivering visual confirmation to users and monitoring stations via the Ajax app. The "U" designation indicates this model has been adapted to comply with UK regulatory requirements, making it the appropriate version for UK security installations.
Using a highly sensitive PIR sensor together with SmartDetect digital signal processing and Wings photo transmission technology, the detector accurately identifies human movement, helps minimise false alarms and provides visual evidence of alarm events — all within a single device.
Reliable Indoor Motion Detection
The detector monitors indoor areas using a PIR sensor with a detection range of up to 12 metres, making it suitable for protecting hallways, living areas, offices, retail spaces and other internal rooms.
With a horizontal viewing angle of 88.5° and a vertical viewing angle of 80°, the detector provides effective room coverage when installed at the recommended mounting height of 2.4 metres, according to Ajax recommendations.
Photo Verification on Alarm
When motion is detected in armed mode, the MotionCam U Jeweller immediately triggers an alarm and begins capturing a series of photos using its built-in CMOS camera. These images are transmitted via the Wings radio protocol to the Ajax app, providing visual evidence of the alarm event within approximately 9 seconds at the default 320×240 pixel resolution.
This enables users and Central Monitoring Station operators to quickly assess the situation, helping to reduce unnecessary patrol dispatches and ease user concern during alarm activations.
The MotionCam U Jeweller takes photos only in the event of an alarm. It does not support Photo on Demand, Photo by Scenario or Photo by Schedule. If those features are required, the MotionCam U (PhOD) Jeweller is available separately.
HDR Image Technology
The detector uses HDR (High Dynamic Range) imaging to deliver clear, balanced photos in both bright and low-light conditions. The camera captures two exposures at different levels and merges them into a single optimised frame, helping to preserve detail in both bright areas (such as near windows) and darker zones within the same scene.
In low-light conditions, an infrared backlight activates automatically, enabling the camera to capture images in darkness. In these conditions, photos are produced in black and white.
SmartDetect False Alarm Prevention
The detector uses SmartDetect digital signal processing to analyse movement patterns and improve detection accuracy.
This technology helps distinguish genuine human movement from common sources of false alarms, providing more dependable operation in everyday environments.
Pet Immunity
When installed correctly, the detector is designed to ignore pets weighing up to 20 kg and measuring up to 50 cm in height.
This allows the system to remain armed while many household pets move freely throughout protected areas, helping to reduce unnecessary alarm activations. Sensitivity level also affects pet immunity and can be adjusted in three levels via the Ajax app.
Jeweller and Wings Wireless Communication
The detector communicates with the hub using two of Ajax's proprietary wireless protocols working in parallel:
-
Jeweller — transmits alarm signals and events with encrypted two-way communication, device authentication, frequency hopping protection and anti-jamming detection
-
Wings — dedicated photo transmission protocol, delivering verified alarm images securely to Ajax Cloud and the Ajax app
Communication range between the detector and hub is up to 1,700 metres in open space. Both protocols use block encryption with a dynamic key to protect all transmitted and stored data.
Long Battery Life
The detector is powered by two pre-installed CR123A lithium batteries, providing up to four years of operation under normal conditions before replacement is typically required.
Battery status is continuously monitored and reported to the Ajax app, with early low-battery notifications sent well in advance to allow planned maintenance.
Quick Professional Installation
The included SmartBracket mounting panel enables straightforward installation without needing to disassemble the detector body.
A built-in tamper switch detects any attempt to remove the detector from its mounting surface and immediately notifies the system, adding an additional layer of protection against interference.
Privacy and Data Security
The MotionCam U Jeweller takes photos only on alarm. The device's software architecture does not support on-demand image capture. All photos are encrypted throughout transmission and stored securely in Ajax Cloud. Only system users and security professionals with access to the event feed in the Ajax app can view images. The Privacy menu in Ajax apps provides precise control over visual data access permissions.
Designed for Professional Security Systems
The MotionCam U Jeweller is part of Ajax's Baseline product line and is adapted for UK regulatory compliance. It is intended for use within compatible Ajax security systems in residential, commercial and office environments, providing combined motion detection and visual alarm verification in a single wireless device.
KEY BENEFITS
- Accurate indoor PIR motion detection up to 12 metres
- Built-in camera provides visual photo verification on alarm
- Photos delivered to Ajax app within approximately 9 seconds of alarm
- HDR imaging helps capture clear photos in bright and low-light conditions
- Infrared backlight enables photo capture in darkness
- SmartDetect technology helps reduce false alarms
- Pet immunity supports animals up to 20 kg and 50 cm tall
- Jeweller and Wings encrypted wireless communication
- Wireless range up to 1,700 m in open space
- Up to four years of battery life from pre-installed CR123A batteries
- Built-in tamper protection
- SmartBracket simplifies installation
- UK regulatory compliant version (U variant)
- Suitable for residential and commercial security systems
KEY FEATURES
- Wireless PIR motion detector with photo verification
- Passive infrared sensor with CMOS camera
- Detection range up to 12 m
- Horizontal angle 88.5°, Vertical angle 80°
- SmartDetect technology
- Pet immunity up to 20 kg / 50 cm
- HDR image technology
- IR backlight for low-light photography
- Photo delivery within approximately 9 seconds (default resolution)
- Alarm-only photo capture (no PhOD)
- Jeweller + Wings dual wireless protocol
- Up to 1,700 m communication range
- 2 × CR123A batteries pre-installed
- Battery life up to 4 years
- SmartBracket mounting panel
- Tamper protection
- IP50 rated
- IK04 impact protection
- Indoor installation only
- White finish
- UK regulatory compliant (U variant)
IDEAL FOR
- Homes and apartments
- Offices
- Retail shops
- Commercial premises
- Reception areas
- Hallways
- Warehouses
- Installations requiring visual alarm verification
- Reducing unnecessary patrol dispatches
- Professional Ajax alarm systems
SYSTEM COMPATIBILITY
- Compatible with Ajax Hub 2
- Compatible with Ajax Hub 2 (2G)
- Compatible with Ajax Hub 2 (4G)
- Compatible with Ajax Hub 2 Plus
- Compatible with Ajax Hub Plus
- Compatible with Ajax Hub Hybrid (2G)
- Compatible with Ajax Hub Hybrid (4G)
- Compatible with Ajax ReX Jeweller
- Compatible with Ajax ReX 2 Jeweller
- Uses Ajax Jeweller and Wings encrypted wireless communication
- Managed via Ajax mobile applications (iOS and Android)
- Managed via Ajax desktop applications (Windows and macOS)
- Supports Ajax Cloud remote management
- Supports Over-the-Air (OTA) firmware updates
| Specification |
Details |
| Brand |
Ajax |
| Model |
MotionCam U Jeweller |
| Article Number |
132783.23.WH1 |
| Product Type |
Wireless Indoor PIR Motion Detector with Photo Verification |
| Product Line |
Baseline (UK Variant) |
| Detection Technology |
Passive Infrared (PIR) |
| Motion Detection Range |
Up to 12 m |
| Detection Angles |
Horizontal 88.5°, Vertical 80° |
| Pet Immunity |
Up to 20 kg / 50 cm |
| False Alarm Prevention |
SmartDetect |
| Photo Verification |
Yes – on alarm only |
| Photo on Demand (PhOD) |
Not supported |
| Camera Sensor |
CMOS |
| Photo Resolution Options |
160×120 px / 320×240 px (default) / 640×480 px |
| Photo Delivery Time |
Up to 9 seconds (default resolution) |
| HDR Technology |
Yes |
| IR Backlight |
Yes – activates in low-light conditions |
| Wireless Technology |
Jeweller + Wings |
| Radio Communication Range |
Up to 1,700 m (open space) |
| Alarm Transmission Time |
Approximately 0.15 seconds |
| Tamper Protection |
Yes |
| Anti-Masking |
Not Supported |
| Sensitivity Levels |
3 (Low, Normal, High) |
| LED Indication |
Yes |
| Power Supply |
2 × CR123A Lithium Batteries (Pre-installed) |
| Battery Life |
Up to 4 Years |
| Protection Rating |
IP50 |
| Impact Protection |
IK04 |
| Operating Temperature |
−10°C to +40°C |
| Operating Humidity |
Up to 75% Non-condensing |
| Colour |
White |
| Material |
High-quality Plastic |
| Mounting |
SmartBracket Mounting Panel |
| Dimensions |
Not specified |
| Weight |
Not specified |
| Indoor / Outdoor |
Indoor Use Only |
| Warranty |
Not specified |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the Ajax MotionCam U Jeweller used for?
The Ajax MotionCam U Jeweller is a wireless indoor PIR motion detector that combines intrusion detection with photo verification. When triggered, it captures a series of photos and transmits them to the Ajax app within approximately 9 seconds, allowing users and monitoring companies to visually confirm alarm events. It is suitable for residential, commercial and office security systems using compatible Ajax hubs.
What does the "U" mean in MotionCam U Jeweller?
The "U" designation indicates this detector has been adapted to comply with UK regulatory requirements. It is the correct version for UK security installations and is sold under article number 132783.23.WH1.
Is this detector suitable for outdoor installation?
No. The MotionCam U Jeweller is designed for indoor use only and carries an IP50 protection rating. For outdoor photo verification, the MotionCam Outdoor range is available separately.
What is the maximum detection range?
The detector can identify movement at distances of up to 12 metres when installed at the recommended height of 2.4 metres, according to Ajax guidelines.
Does it ignore pets?
Yes. The detector features pet immunity, helping to ignore animals weighing up to 20 kg and measuring up to 50 cm in height when correctly installed. Sensitivity level can also be adjusted in the Ajax app to suit the installation environment.
Does the camera take photos continuously or only on alarm?
Photos are captured only in the event of an alarm. The MotionCam U Jeweller does not support Photo on Demand, Photo by Scenario or Photo by Schedule. If those extended photo features are required, the MotionCam U (PhOD) Jeweller is available as a separate product.
How does the camera perform in low light or darkness?
The detector includes an infrared backlight that activates automatically in low-light conditions, enabling photo capture in darkness. In these situations, images are produced in black and white. HDR technology also helps balance exposure across bright and dark areas of the same scene.
How does the detector communicate with the hub?
It uses two proprietary Ajax wireless protocols working in parallel: Jeweller for encrypted alarm and event transmission, and Wings for photo delivery. Both operate with block encryption, device authentication and frequency hopping, with a wireless range of up to 1,700 metres in open space.
How is the detector powered?
The detector operates from two pre-installed CR123A lithium batteries, providing up to four years of battery life under normal operating conditions. Battery status is monitored and reported in the Ajax app with early low-battery notifications.
Does it include tamper protection?
Yes. The detector features a built-in tamper switch that immediately notifies the system if the device is removed or displaced from its mounting surface.
