The Ajax MotionCam Outdoor Jeweller White is a professional wireless outdoor motion detector with integrated photo verification, helping users and monitoring centres quickly confirm alarm events. Combining dual PIR motion detection, encrypted Jeweller communication, Wings image transmission and IP55 weather protection, it delivers dependable perimeter security for residential and commercial Ajax systems.

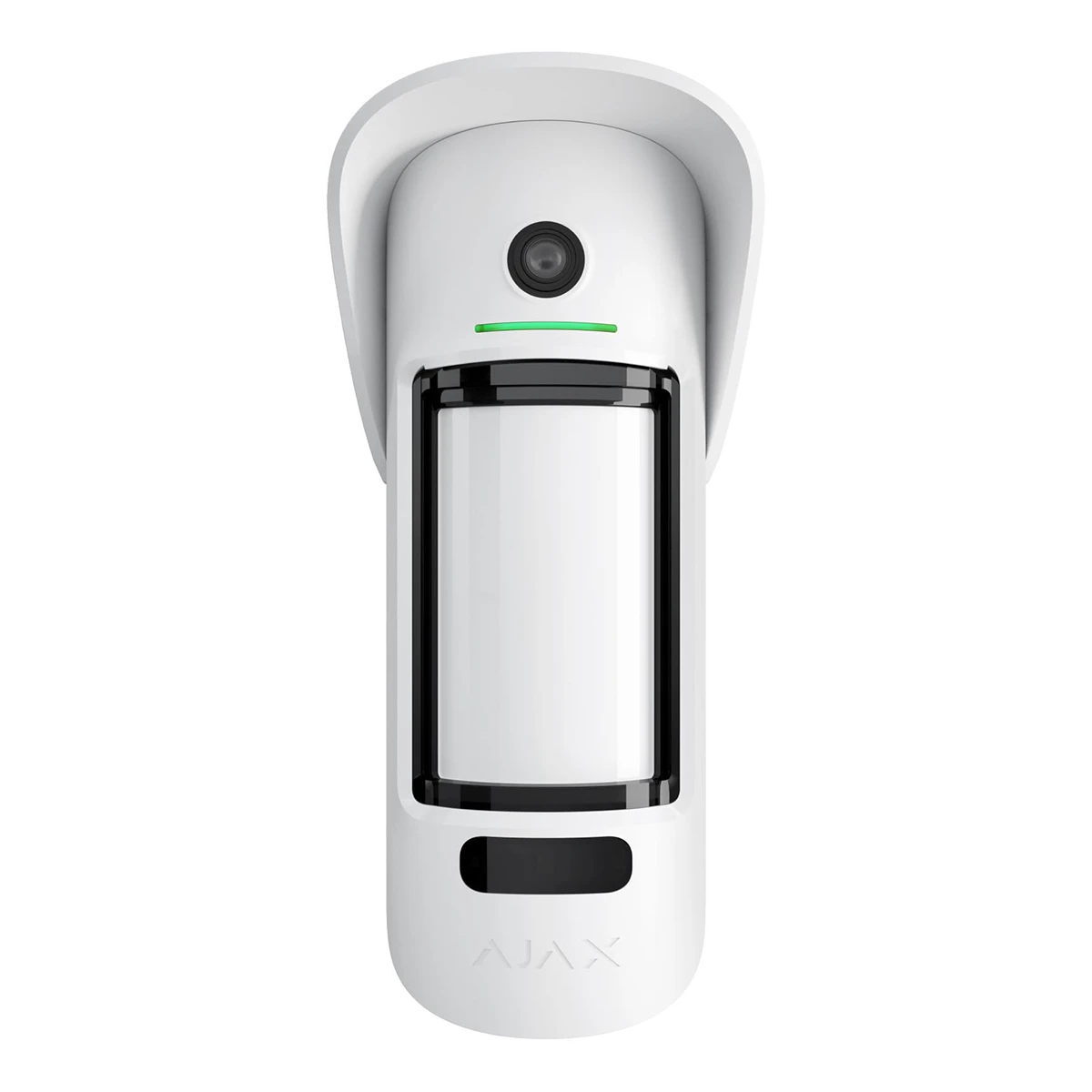

Ajax MotionCam Outdoor Jeweller White Wireless Outdoor Motion Detector
The Ajax MotionCam Outdoor Jeweller is an advanced wireless outdoor motion detector designed to detect intrusions while providing visual confirmation of alarm events. Equipped with an integrated camera, the detector captures a series of images when motion is detected, allowing users and monitoring centres to verify what triggered the alarm without relying solely on sensor data.
Using Ajax's Jeweller radio protocol for alarm transmission and Wings technology for secure image delivery, the MotionCam Outdoor provides reliable perimeter protection while helping reduce unnecessary alarm responses.
Outdoor Motion Detection with Photo Verification
Unlike a standard PIR detector, the MotionCam Outdoor combines motion detection with an integrated camera that automatically captures photographs only when an alarm is triggered.
This visual verification helps users determine whether an alarm has been caused by genuine intrusion, improving response times and reducing unnecessary call-outs.
Note: This model supports Photo by Alarm only. Photo on Demand (PhOD), Photo by Scenario and Photo by Schedule are not supported on this variant. Those features are available only on the MotionCam Outdoor (PhOD) Jeweller model.
Reliable Outdoor Motion Detection
The detector uses dual passive infrared (PIR) sensors together with intelligent digital processing to detect human movement while helping minimise false alarms caused by environmental conditions.
The adjustable detection distance can be configured between 3 and 15 metres, allowing installers to optimise coverage for different outdoor environments.
When installed at the recommended height, the detector is designed to ignore pets and animals up to approximately 80 cm tall.
Secure Jeweller & Wings Communication
Motion alarms are transmitted using Ajax's encrypted Jeweller wireless protocol, while captured images are delivered using the dedicated Wings radio protocol.
Key communication features include:
- Encrypted two-way communication
- Device authentication
- Frequency hopping
- Continuous supervision
- Advanced anti-jamming protection
- Communication range up to 1,700 metres in open space
Actual communication distance depends on building structure, interference and installation conditions.
Night-Time Photo Verification
The built-in infrared illumination enables the camera to capture photo verification images in low-light and night-time conditions, helping users identify activity even after dark.
Built for Outdoor Security
The MotionCam Outdoor features an IP55-rated enclosure, allowing it to operate reliably in challenging outdoor environments.
Additional security features include:
- Smart anti-masking protection
- Tamper detection
- Temperature compensation
- Stable operation across a wide operating temperature range
These features make it suitable for exposed installations where dependable outdoor performance is essential.
Professional Outdoor Protection
Designed for professional Ajax security systems, the MotionCam Outdoor is ideal for protecting gardens, driveways, entrances, loading areas, business premises and other outdoor access routes where rapid motion detection and visual alarm confirmation are required.
KEY BENEFITS
- Wireless outdoor motion detection with integrated photo verification
- Photo by Alarm provides visual confirmation of intrusion events
- Dual PIR sensors help improve detection reliability
- Adjustable detection distance from 3–15 metres
- Pet immunity for animals up to 80 cm when correctly installed
- Secure Jeweller and Wings wireless communication
- Infrared illumination supports night-time photo verification
- Smart anti-masking protection enhances system security
- IP55 weather-resistant enclosure for outdoor installation
- Up to 3 years battery life using four CR123A batteries
KEY FEATURES
- Wireless outdoor PIR motion detector
- Built-in alarm verification camera
- Photo by Alarm
- Dual PIR sensors
- Jeweller communication
- Wings image transmission
- Detection range from 3–15 m
- Pet immunity
- IR illumination
- Anti-masking system
- Tamper protection
- IP55 weather protection
- 4 × CR123A batteries
- Up to 3 years battery life
- White finish
IDEAL FOR
- Homes
- Driveways
- Gardens
- Building entrances
- Commercial premises
- Warehouses
- Business parks
- Loading bays
- Car parks
- Industrial sites
- Perimeter protection
- Professional Ajax outdoor alarm systems
SYSTEM COMPATIBILITY
- Compatible with Ajax Hub 2
- Compatible with Ajax Hub 2 (2G)
- Compatible with Ajax Hub 2 (4G)
- Compatible with Ajax Hub 2 Plus
- Compatible with Ajax Hub Hybrid (2G)
- Compatible with Ajax Hub Hybrid (4G)
- Compatible with Ajax ReX 2 Jeweller (alarm transmission only; photo verification support depends on system configuration)
- Uses Ajax Jeweller encrypted wireless communication
- Uses Ajax Wings radio protocol for image transmission
- Supports Ajax mobile applications (iOS and Android)
- Supports Ajax PRO desktop applications (Windows and macOS)
- Supports Ajax Cloud remote management
- Supports Over-the-Air (OTA) firmware updates
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Ajax |
| Model |
MotionCam Outdoor Jeweller |
| Part Number |
26102.84.WH |
| Product Type |
Wireless Outdoor Motion Detector with Photo Verification |
| Detection Technology |
Dual Passive Infrared (PIR) Sensors |
| Motion Detection Distance |
Adjustable 3–15 m |
| Detection Angle |
Horizontal 88.5° / Vertical 80° |
| Pet Immunity |
Up to 80 cm (when installed as recommended) |
| Camera |
Integrated Photo Verification Camera |
| Photo Verification |
Photo by Alarm |
| Photo on Demand (PhOD) |
No |
| Photo by Scenario |
No |
| Photo by Schedule |
No |
| Image Resolution |
Up to 640 × 480 pixels |
| Image Series |
1–5 images (configurable) |
| IR Illumination |
Yes |
| Wireless Technology |
Jeweller & Wings |
| Jeweller Communication Range |
Up to 1,700 m (Open Space) |
| Wings Communication Range |
Up to 1,700 m (Open Space) |
| Alarm Transmission Time |
Approximately 0.15 Seconds |
| Anti-masking |
Yes |
| Tamper Protection |
Yes |
| Temperature Compensation |
Yes |
| Power Supply |
4 × CR123A Lithium Batteries (Pre-installed) |
| Battery Life |
Up to 3 Years |
| Protection Rating |
IP55 |
| Operating Temperature |
−25°C to +60°C |
| Operating Humidity |
Up to 95% Non-condensing |
| Colour |
White |
| Material |
High-quality Plastic |
| Mounting Height |
0.8–1.3 m (Recommended) |
| Dimensions |
206 × 108 × 93 mm |
| Weight |
Approx. 470 g |
| Indoor / Outdoor |
Outdoor |
| Certifications |
CE, RED, RoHS (Region Dependent) |
| Warranty |
Not specified |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the Ajax MotionCam Outdoor Jeweller used for?
The Ajax MotionCam Outdoor Jeweller is a wireless outdoor motion detector that combines PIR motion detection with integrated photo verification. It helps users and monitoring centres visually confirm alarm events before responding.
Is this detector suitable for outdoor installation?
Yes. The detector is specifically designed for outdoor use and features an IP55-rated enclosure to help protect against dust and water ingress.
Does this model support Photo on Demand (PhOD)?
No. The MotionCam Outdoor Jeweller supports Photo by Alarm only. If you require Photo on Demand, Photo by Scenario or Photo by Schedule, choose the MotionCam Outdoor (PhOD) Jeweller model instead.
Does it work at night?
Yes. The integrated infrared illumination enables the camera to capture photo verification images in low-light and night-time conditions.
What wireless technology does it use?
The detector uses Ajax Jeweller for alarm communication and Ajax Wings for secure image transmission.
How far can it detect motion?
The detection distance is adjustable from 3 metres to 15 metres, allowing installers to tailor the coverage to suit the installation.
Is it suitable for homes and businesses?
Yes. It is suitable for residential properties, offices, warehouses, retail premises, industrial sites and other outdoor perimeter protection applications.
Does it ignore pets?
Yes. When installed according to Ajax recommendations, the detector is designed to reduce false alarms from pets and animals up to approximately 80 cm in height.
How is it powered?
The detector is powered by four pre-installed CR123A lithium batteries, providing up to 3 years of battery life under normal operating conditions.
Is professional installation recommended?
Yes. Professional installation is recommended to ensure correct mounting height, detection area configuration, communication quality and reliable photo verification.
