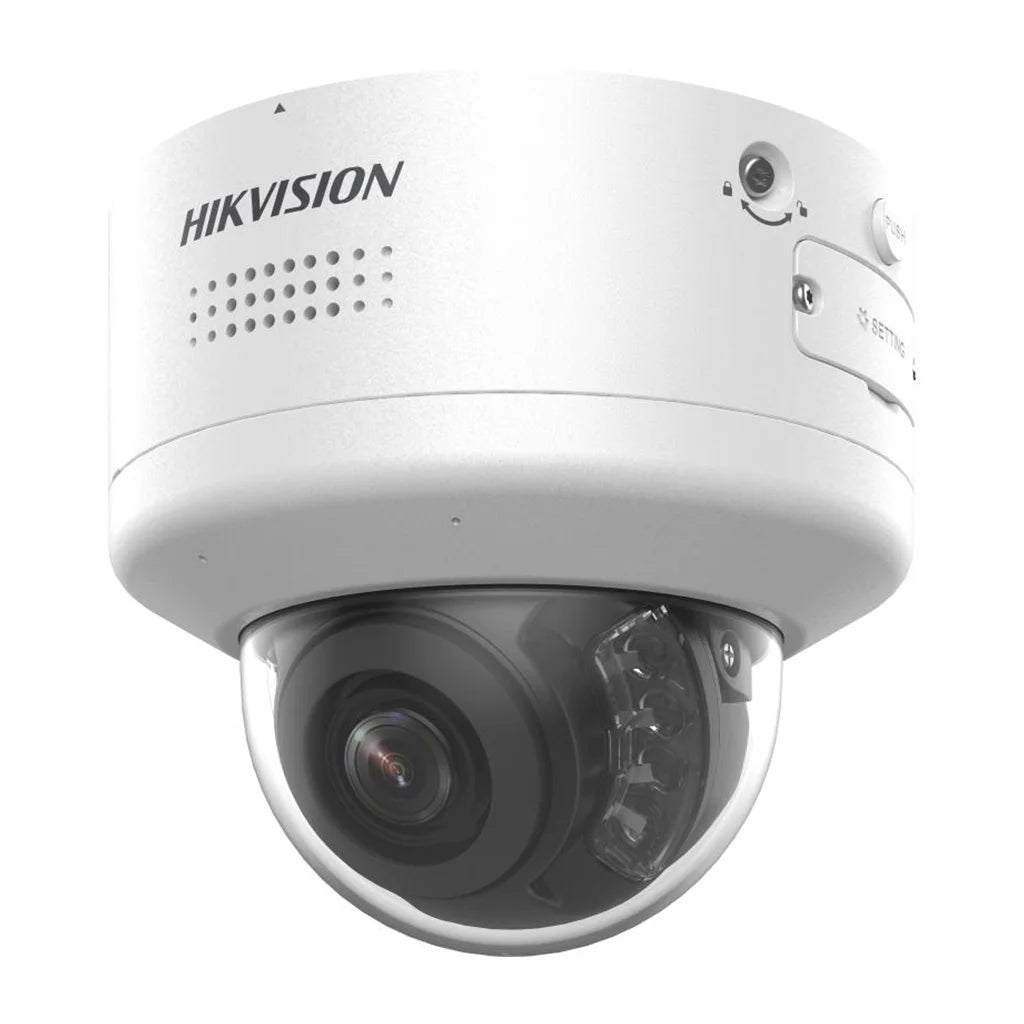

Hikvision DS-2CD2766G2H-IPTRZS2U/SL Product Overview
The Hikvision DS-2CD2766G2H-IPTRZS2U/SL is a 6MP AcuSense motorised PTRZ varifocal dome network camera. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3200 × 1800, and its 2.8–12mm motorised lens supports remote pan, tilt, rotation and zoom adjustment for easier commissioning and maintenance.
Powered-by-DarkFighter technology offers a manufacturer-rated colour sensitivity of 0.0008 lux at F1.2, while smart infrared illumination reaches up to 40 metres. The camera combines 120dB WDR, human and vehicle classification, perimeter analytics, dual-array microphones, a built-in speaker and the /SL model's white strobe and audible warning.
Key Benefits
-
6MP image detail: maximum 3200 × 1800 video supports detailed monitoring without the storage demand of an 8MP stream.
-
Remote PTRZ setup: viewing direction and optical zoom can be adjusted remotely.
-
DarkFighter low-light imaging: designed to preserve useful detail in very low illumination.
-
40m infrared: built-in smart IR provides black-and-white monitoring in darkness.
-
Human and vehicle classification: supported events can filter targets by type.
-
Active deterrence: the /SL version can provide white strobe and audible warnings.
-
Integrated audio: dual microphones and a speaker support recording, communication and warning playback.
-
Protected metal housing: IP66 weather resistance and IK10 impact resistance.
Key Features
- 6MP AcuSense PTRZ dome network camera
- 1/1.8-inch progressive-scan CMOS
- 3200 × 1800 maximum resolution at up to 25/30fps
- 2.8–12mm motorised varifocal lens with F1.2 aperture
- Remote pan, tilt, rotation and zoom
- Powered-by-DarkFighter low-light technology
- 120dB WDR and infrared up to 40m
- H.265+, H.265, H.264+ and H.264
- Human and vehicle classification
- Line crossing, intrusion, region entrance and region exit
- Face capture support
- Dual-array microphones, speaker, audio and alarm interfaces
- White strobe and audible warning
- Memory-card support up to 512GB
- PoE+ or 12V DC power
Technical Specifications
| Model |
DS-2CD2766G2H-IPTRZS2U/SL(2.8-12mm) |
| Camera type |
6MP AcuSense motorised PTRZ varifocal dome network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3200 × 1800 |
| Maximum frame rate |
25fps at 3200 × 1800 in 50Hz mode; 30fps at 3200 × 1800 in 60Hz mode |
| Minimum illumination |
Colour: 0.0008 lux at F1.2 with AGC on; black and white: 0 lux with IR |
| Lens |
2.8–12mm motorised varifocal, integrated mount |
| Field of view |
Horizontal 112.3°–41.2°; vertical 58.1°–23.1°; diagonal 137.4°–47.3° |
| PTRZ range |
Pan 0°–350°; tilt 0°–85°; rotation 0°–350° |
| Infrared |
850nm smart IR up to 40m |
| WDR |
120dB |
| Compression |
H.265+, H.265, H.264+ and H.264; MJPEG sub-stream |
| Analytics |
Human/vehicle classification, line crossing, intrusion, region entrance/exit and face capture |
| Audio |
Dual-array microphones, built-in speaker, one input and one output |
| Alarm |
One input and one output |
| Local storage |
Compatible memory cards up to 512GB |
| Network/API |
RJ45 10/100Mbps; ONVIF S/G/T, ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 16W; IEEE 802.3at PoE+ Class 4, maximum 18W |
| Operating range |
-30°C to 60°C; humidity 95% or less |
| Housing |
White metal |
| Protection |
IP66 and IK10; no specialist anti-corrosion protection stated |
| Dimensions |
Ø155 × 140.4mm |
| Weight |
Approximately 840g |
Analytics and Event Actions
Human and vehicle classification is supported for compatible motion and perimeter rules. Available perimeter events include line crossing, intrusion, region entrance and region exit. Event linkage can include recording, capture, notifications, alarm output, strobe flashing and audible warning.
Installation and Compatibility
PTRZ control is intended to simplify installation and remote maintenance. Use a correctly rated IEEE 802.3at PoE+ source or 12V DC supply. Confirm the NVR's 6MP decoding, analytics, audio, alarm, storage and remote PTRZ support. Basic third-party integration is available through ONVIF Profiles S, G and T.
Frequently Asked Questions
What is the maximum resolution?
3200 × 1800, approximately 6MP.
What lens is fitted?
A 2.8–12mm motorised varifocal lens.
Can the camera angle be adjusted remotely?
Yes. It supports remote pan, tilt, rotation and zoom adjustment.
Does it use ColorVu?
No. It is a powered-by-DarkFighter infrared AcuSense model.
What is the infrared range?
Up to 40 metres under the manufacturer's test conditions.
Can it identify target types?
It can classify human and vehicle targets for supported event rules.
Does it include deterrence functions?
Yes. The /SL version includes a white strobe and audible warning.
Does it support audio?
Yes. It includes dual microphones, a built-in speaker and external audio I/O.
How large can the memory card be?
Up to 512GB using a compatible card.
Is it outdoor rated?
It is rated IP66 and IK10, but Hikvision states no specialist anti-corrosion protection.
