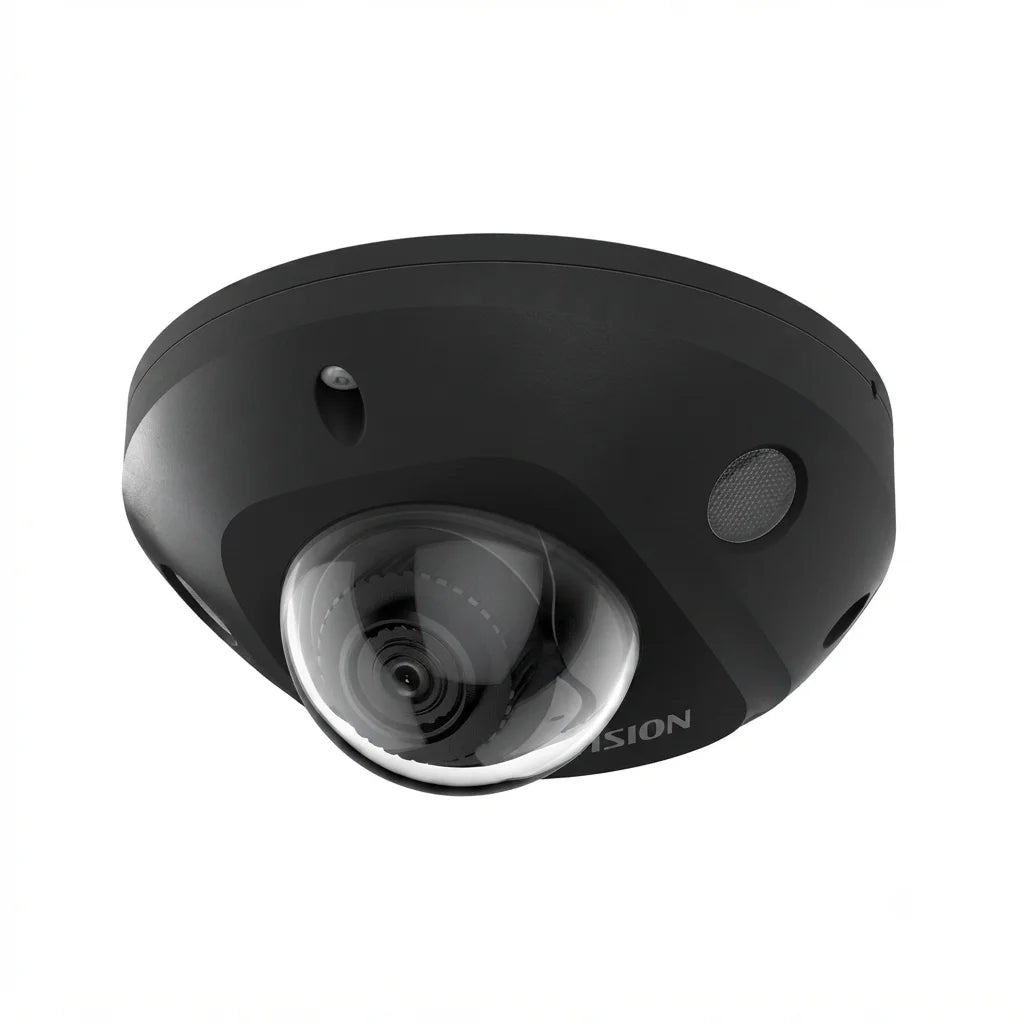

Black Hikvision DS-2CD2546G2-IS Product Overview
The Hikvision DS-2CD2546G2-IS(2.8mm)(C)(BLACK) is the black-finish 4MP AcuSense Powered-by-DarkFighter fixed mini dome network camera. Its 1/3-inch progressive-scan CMOS sensor records at up to 2688 × 1520, while the fixed 2.8mm F1.4 lens provides a wide 102.7° horizontal field of view.
The camera includes infrared illumination up to 30 metres, 120dB WDR, human and vehicle classification for supported events and face capture. The -IS hardware provides a built-in microphone, one external line audio input and output, one alarm input and output and a memory-card slot supporting compatible cards up to 512GB.
Key Benefits
-
Official black model: uses Hikvision's exact DS-2CD2546G2-IS(2.8mm)(C)(BLACK) designation.
-
Detailed 4MP video: captures up to 2688 × 1520 at up to 25fps in 50Hz mode or 30fps in 60Hz mode.
-
Wide fixed view: the 2.8mm lens provides a 102.7° horizontal field of view.
-
DarkFighter low-light imaging: supports useful detail in challenging lighting conditions.
-
30m infrared and 120dB WDR: support darkness and high-contrast scenes.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Built-in microphone and interfaces: integrated audio capture plus external audio and alarm connections.
-
Compact protected housing: IP67 weather resistance and IK08 impact resistance.
Key Features
- 4MP maximum resolution of 2688 × 1520
- 1/3-inch progressive-scan CMOS sensor
- 2.8mm fixed lens with F1.4 aperture
- 102.7° horizontal, 55.2° vertical and 122.5° diagonal field of view
- Minimum colour illumination of 0.003 lux at F1.4 with AGC enabled
- Infrared illumination up to 30 metres
- 120dB wide dynamic range
- H.265+, H.265, H.264+ and H.264 compression
- Human and vehicle classification for supported events
- Face-capture support
- Built-in microphone with environmental-noise filtering
- One line audio input and one line audio output
- One alarm input and one alarm output
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE
- Black finish with IP67 and IK08 protection
Technical Specifications
| Model |
DS-2CD2546G2-IS(2.8mm)(C)(BLACK) |
| Camera type |
Fixed mini dome network camera |
| Image sensor |
1/3-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Maximum frame rate |
25fps at maximum resolution in 50Hz mode or 30fps in 60Hz mode |
| Minimum illumination |
Colour: 0.003 lux at F1.4 with AGC on; 0 lux with IR |
| Lens |
2.8mm fixed focal lens, F1.4 |
| Field of view |
Horizontal 102.7°; vertical 55.2°; diagonal 122.5° |
| Physical adjustment |
Pan -30° to 30°, tilt 0° to 75° and rotation 0° to 360° |
| Infrared range |
Up to 30m |
| Wide dynamic range |
120dB |
| Analytics |
Human and vehicle classification for supported events; face capture |
| Built-in microphone |
Yes |
| Audio interface |
One line input and one line output |
| Alarm interface |
One input and one output |
| Local storage |
microSD, microSDHC or microSDXC card support up to 512GB |
| Network interface |
1 × RJ45 10/100Mbps Ethernet port |
| Interoperability |
ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC, maximum 5.5W; IEEE 802.3af PoE Class 3, maximum 6.5W |
| Housing |
Aluminium base, plastic cover, black finish |
| Protection |
IP67 weather resistance and IK08 impact resistance |
| Dimensions |
Ø110 × 57.4mm |
| Weight |
Approximately 380g |
Detection, Audio and Storage
AcuSense classification can focus supported motion and perimeter events on human and vehicle targets. Face capture is also available. Performance depends on target size, camera angle, lighting and configuration.
The built-in microphone captures audio, and the separate line input/output supports compatible external equipment. Hikvision does not state a built-in speaker. Compatible memory cards up to 512GB are supported and are normally sold separately.
Installation and Compatibility
The fixed 2.8mm lens does not provide optical zoom. The dome angle is adjusted physically during installation. Confirm NVR resolution, AcuSense, audio and alarm, PoE, memory-card and mounting compatibility before ordering.
Frequently Asked Questions
What is the exact model?
This listing is for the Hikvision DS-2CD2546G2-IS(2.8mm)(C)(BLACK) model.
What is the maximum resolution?
2688 × 1520, commonly described as 4MP.
What lens is fitted?
A fixed 2.8mm F1.4 lens.
Can the lens zoom remotely?
No. This is a fixed-lens camera.
What is the infrared range?
Up to 30 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported event types.
Does it have a built-in microphone?
Yes. No built-in speaker is stated.
What memory-card capacity is supported?
Compatible cards up to 512GB.
Can it use PoE?
Yes, IEEE 802.3af PoE Class 3.
What are the protection ratings?
IP67 and IK08.
