Hikvision DS-2CD2346G3-IZS2UY/SL Product Overview

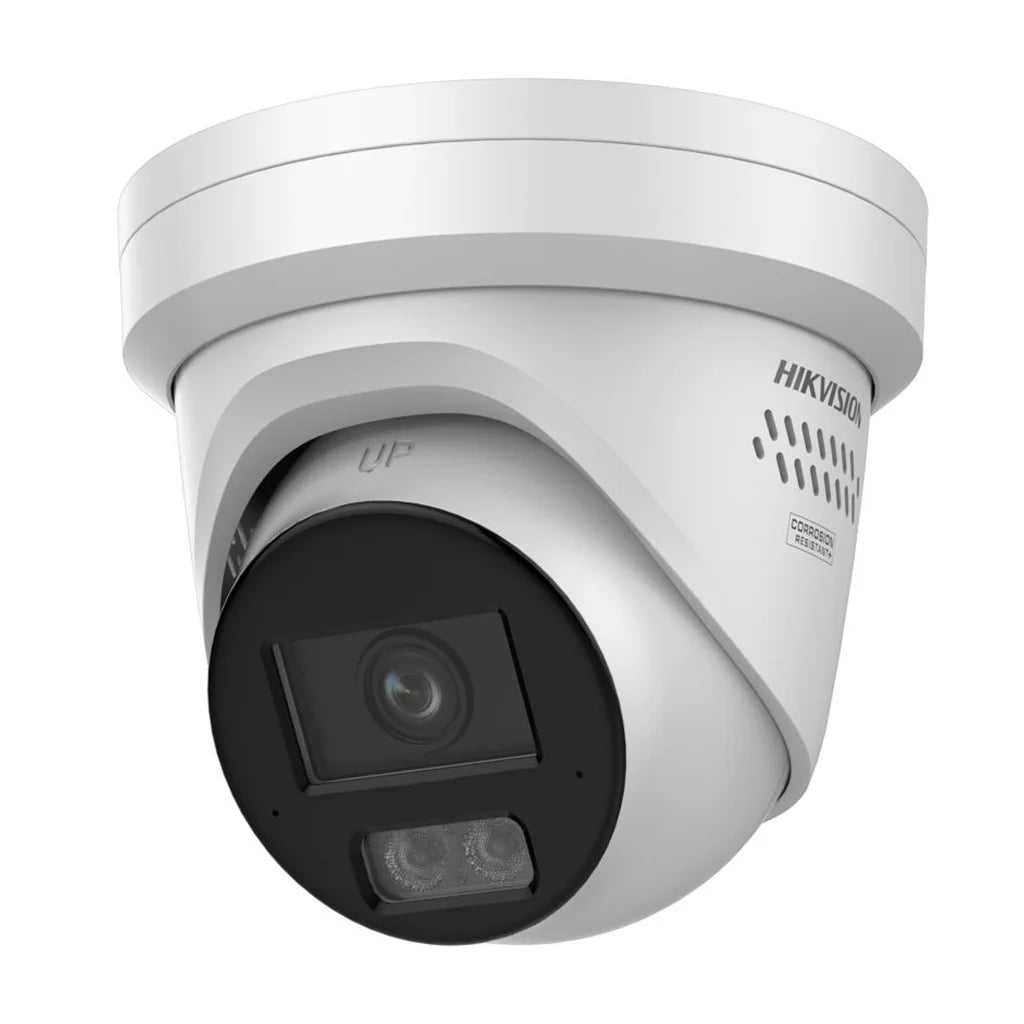

The Hikvision DS-2CD2346G3-IZS2UY/SL(2.8/4mm) is a 4MP AcuSense Powered-by-DarkFighter point-varifocal turret network camera with integrated two-way audio and active deterrence. Its motorised lens switches between the supported 2.8mm and 4mm focal positions, while the 1/3-inch CMOS sensor records at up to 2688 × 1520 at up to 25/30fps.
The `/SL` hardware includes two built-in microphones, a 2W speaker, external audio input/output, one alarm input/output, a white warning strobe and audible-warning capability. The camera also provides infrared illumination up to 30 metres, 130dB WDR, human and vehicle classification, local storage up to 512GB, PoE+ and IP67 plus NEMA 4X protection.
Key Benefits
-
Selectable 2.8mm or 4mm view: motorised point-varifocal adjustment supports wide or tighter framing.
-
Detailed 4MP video: captures up to 2688 × 1520 at up to 25/30fps.
-
DarkFighter imaging: supports useful low-light detail.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Integrated two-way audio: dual microphones and a 2W speaker support compatible communication.
-
Active deterrence: a white strobe and audible warning can be linked to supported events.
-
External integration: audio and alarm input/output support compatible equipment.
-
Protected housing: IP67 and NEMA 4X support exposed installations and moderate anti-corrosion protection.
Key Features
- 4MP maximum resolution of 2688 × 1520
- 1/3-inch progressive-scan CMOS sensor
- Motorised 2.8mm/4mm point-varifocal F1.6 lens
- 2.8mm FOV: 99.3° H, 54.8° V and 120.2° D
- 4mm FOV: 80.0° H, 44.1° V and 94.0° D
- 0.001-lux minimum colour illumination
- Infrared illumination up to 30 metres
- 130dB WDR
- Human and vehicle classification
- Face capture and perimeter protection
- Two built-in microphones and 2W speaker
- External audio input/output
- One alarm input and one alarm output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3at PoE+
- IP67 and NEMA 4X
Technical Specifications
| Model |
DS-2CD2346G3-IZS2UY/SL(2.8/4mm) |
| Camera type |
Active-deterrence point-varifocal turret network camera |
| Sensor |
1/3-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Frame rate |
25fps in 50Hz mode or 30fps in 60Hz mode |
| Minimum illumination |
0.001 lux at F1.6; 0 lux with infrared |
| Lens |
Motorised 2.8mm/4mm point-varifocal lens, F1.6 |
| 2.8mm field of view |
H 99.3°; V 54.8°; D 120.2° |
| 4mm field of view |
H 80.0°; V 44.1°; D 94.0° |
| Infrared |
Up to 30m |
| WDR |
130dB |
| Analytics |
Human and vehicle classification; line crossing, intrusion, region entrance and region exit; face capture |
| Built-in audio |
Two built-in microphones and 2W speaker |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Deterrence |
White warning strobe and audible warning |
| Storage |
Compatible microSD-family cards up to 512GB |
| Power |
12V DC max 16W; IEEE 802.3at PoE+ Class 4 max 18W |
| Housing |
White metal housing |
| Protection |
IP67 and NEMA 4X moderate protection |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 780g |
Deterrence, Audio and Compatibility
The `/SL` version can link its white warning strobe, audible warning, recording and alarm output to supported events. The built-in microphones and speaker support compatible two-way audio. The strobe is a warning device rather than a claimed general scene illuminator.
Confirm NVR 4MP decoding, AcuSense, lens control, PoE+ capacity, two-way audio, alarm and deterrence controls, storage-card and mounting compatibility before ordering.
Frequently Asked Questions
What is the maximum resolution?
2688 × 1520.
Is the lens continuously variable?
No. It provides selectable 2.8mm and 4mm positions.
What is the IR range?
Up to 30 metres.
Does it classify people and vehicles?
Yes, for supported events.
Does it support two-way audio?
Yes. It has dual microphones and a 2W speaker.
Does it include audio and alarm interfaces?
Yes, one input and output for each.
Does it have active deterrence?
Yes. It includes a white strobe and audible warning.
What storage is supported?
Compatible cards up to 512GB.
What PoE standard is required?
IEEE 802.3at PoE+ Class 4.
What protection applies?
IP67 and NEMA 4X.
