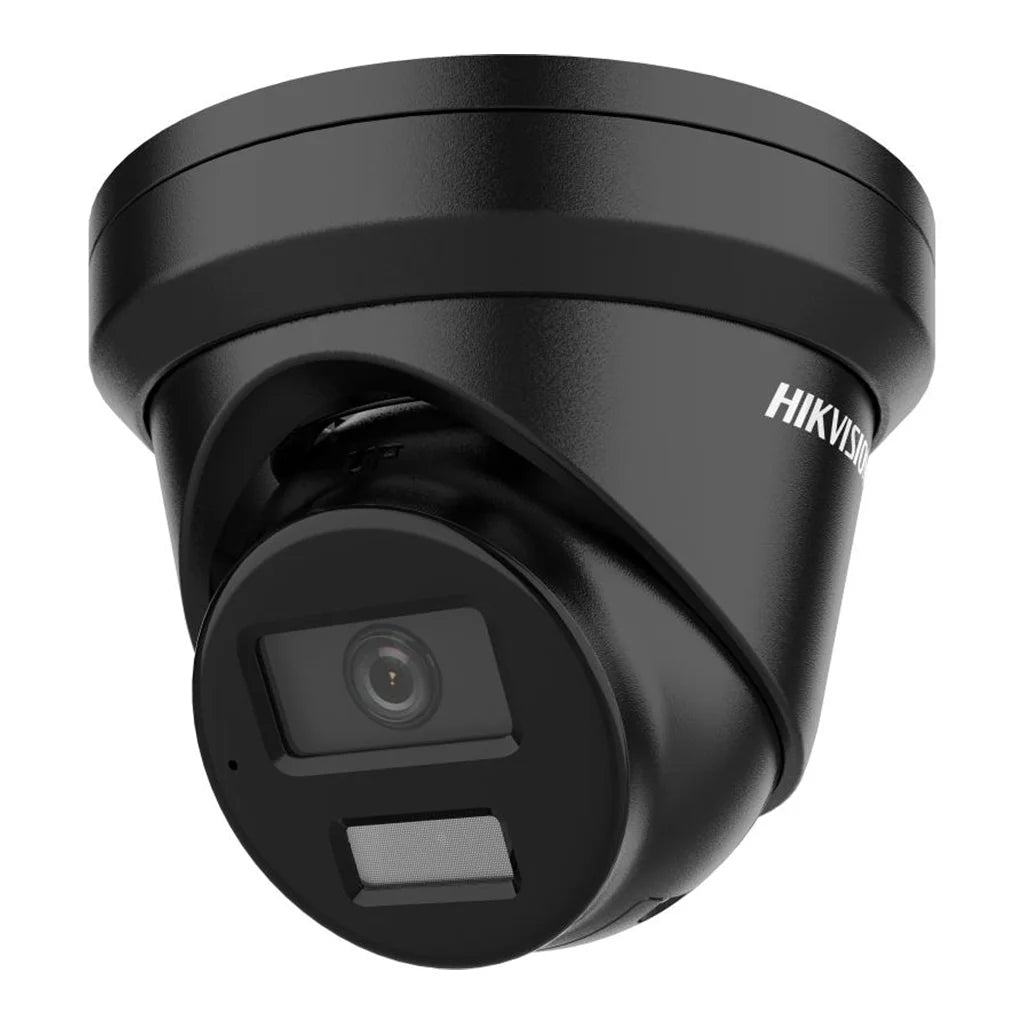

Black Hikvision DS-2CD2346G2H-IU Product Overview
The Hikvision DS-2CD2346G2H-IU(2.8mm)(eF) in black is a 4MP AcuSense Powered-by-DarkFighter fixed turret network camera with a built-in microphone. Its 1/3-inch progressive-scan CMOS sensor records at up to 2688 × 1520, while the fixed 2.8mm F1.0 lens provides a wide 100.2° horizontal field of view.
The camera combines a manufacturer-rated minimum colour illumination of 0.001 lux, infrared illumination up to 30 metres and 120dB WDR. Deep-learning analytics support human and vehicle classification for compatible motion and perimeter events. It also provides face capture, scene-change detection and local memory-card support up to 512GB. Hikvision does not state a built-in speaker, external audio input/output or alarm input/output for this exact IU model.
Key Benefits
-
Black metal finish: suited to installations where a darker housing is required.
-
Detailed 4MP video: records at up to 2688 × 1520 at 25fps in 50Hz mode or 30fps in 60Hz mode.
-
Wide scene coverage: the fixed 2.8mm lens provides a 100.2° horizontal view.
-
DarkFighter low-light imaging: the F1.0 aperture supports useful colour detail in very low illumination.
-
Infrared night monitoring: built-in IR has a manufacturer-rated range of up to 30 metres.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Built-in audio capture: the integrated microphone records sound without implying speaker playback.
-
Protected housing: the black metal enclosure is rated IP67.
Key Features
- 4MP maximum resolution of 2688 × 1520
- Black metal turret housing
- 1/3-inch progressive-scan CMOS sensor
- 2.8mm fixed focal lens with F1.0 aperture
- 100.2° horizontal, 54.7° vertical and 119.7° diagonal field of view
- Minimum colour illumination of 0.001 lux at F1.0 with AGC enabled
- Infrared illumination up to 30 metres
- 120dB true wide dynamic range
- Human and vehicle classification for supported events
- Face-capture and scene-change-detection support
- Built-in microphone with environmental-noise filtering
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 weather resistance
Technical Specifications
| Model |
DS-2CD2346G2H-IU(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/3-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Maximum frame rate |
25fps at maximum resolution in 50Hz mode; 30fps in 60Hz mode |
| Minimum illumination |
Colour: 0.001 lux at F1.0 with AGC on; black and white: 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 100.2°; vertical 54.7°; diagonal 119.7° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° during installation |
| Infrared range |
Up to 30m |
| Wide dynamic range |
120dB |
| Analytics |
Human and vehicle classification for supported events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone; no built-in speaker stated |
| External interfaces |
No external audio input/output or alarm input/output stated |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC ±25%, maximum 7.2W; IEEE 802.3af PoE Class 3, maximum 9W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Protection |
IP67; no IK impact rating stated |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 550g |
Detection, Audio and Compatibility
AcuSense can classify human and vehicle targets for supported motion and perimeter events. The built-in microphone records audio, but no speaker or audio output is stated, so this listing does not claim two-way audio.
Confirm NVR 4MP decoding, AcuSense and audio-recording support, PoE capacity, storage-card compatibility and mounting accessories before ordering. Third-party integration might not expose every Hikvision feature.
Frequently Asked Questions
Is this the black version?
Yes. Black describes the housing finish; the base model remains DS-2CD2346G2H-IU(2.8mm)(eF).
What is the maximum resolution?
2688 × 1520, commonly described as 4MP.
What is the field of view?
100.2° horizontal, 54.7° vertical and 119.7° diagonal.
Can the lens zoom?
No. It is a fixed 2.8mm lens.
What is the IR range?
Up to 30 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported event types.
Does it have a microphone?
Yes. A built-in microphone is provided.
Does it support two-way audio?
No built-in speaker or audio output is stated.
What storage is supported?
Compatible cards up to 512GB.
What is the weather rating?
IP67.
