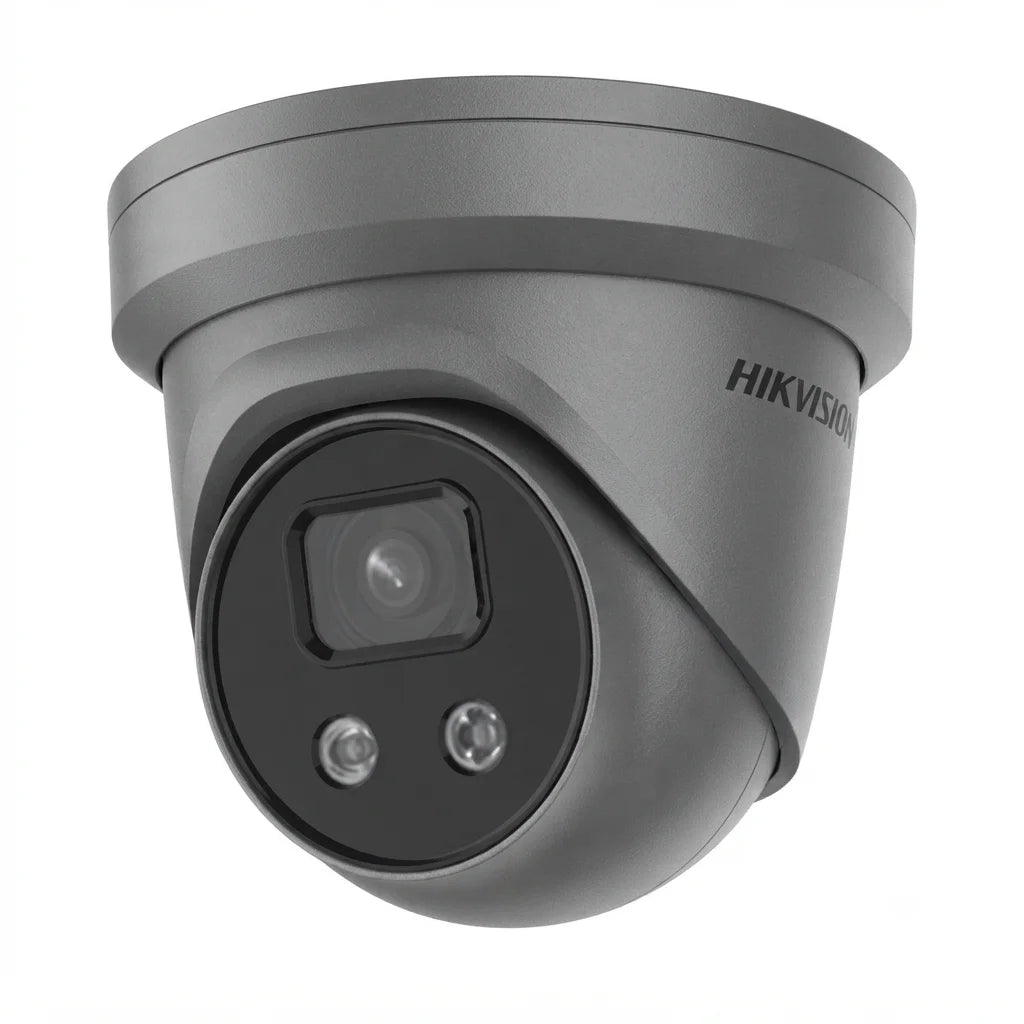

Hikvision DS-2CD2346G2-IU Grey Product Overview
The Hikvision DS-2CD2346G2-IU(2.8mm)(C) in grey is a 4MP AcuSense Powered-by-DarkFighter fixed turret network camera with a built-in microphone. The exact Hikvision base model is DS-2CD2346G2-IU(2.8mm)(C); grey describes the housing finish supplied in this listing rather than changing the camera’s core model code.
Its 1/3-inch progressive-scan CMOS sensor records at up to 2688 × 1520 at 25fps in 50Hz mode or 30fps in 60Hz mode. The fixed 2.8mm F1.4 lens provides a 103° horizontal field of view, while infrared illumination reaches up to 30 metres. AcuSense analytics support human and vehicle classification for compatible motion and perimeter events.
Key Benefits
-
Detailed 4MP monitoring: captures up to 2688 × 1520 for clear live viewing and recorded evidence.
-
Wide 2.8mm view: provides 103° horizontal coverage for entrances, shops, offices and general surveillance areas.
-
DarkFighter low-light imaging: supports useful detail where ambient illumination is limited.
-
30m infrared: provides monochrome monitoring in darkness under manufacturer test conditions.
-
AcuSense classification: supported events can distinguish human and vehicle targets to reduce irrelevant alerts.
-
120dB WDR: helps retain detail where bright and shaded areas appear together.
-
Built-in microphone: records audio without misleadingly implying speaker playback or two-way audio.
-
Protected grey housing: the metal enclosure is rated IP67 for correctly installed indoor or outdoor use.
Key Features
- 4MP maximum resolution of 2688 × 1520
- 1/3-inch progressive-scan CMOS sensor
- 2.8mm fixed focal lens with F1.4 aperture
- 103° horizontal, 55° vertical and 123° diagonal field of view
- Minimum colour illumination of 0.003 lux at F1.4 with AGC enabled
- Infrared illumination up to 30 metres
- 120dB true wide dynamic range
- H.265+, H.265, H.264+ and H.264 compression
- Human and vehicle classification for supported events
- Line crossing, intrusion, region entrance and region exit detection
- Face capture and scene-change detection
- Built-in microphone
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 weather resistance
Technical Specifications
| Base model |
DS-2CD2346G2-IU(2.8mm)(C) |
| Colour |
Grey finish |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/3-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Maximum frame rate |
25fps in 50Hz mode or 30fps in 60Hz mode at maximum resolution |
| Minimum illumination |
Colour: 0.003 lux at F1.4 with AGC on; black and white: 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.4 |
| Field of view |
Horizontal 103°; vertical 55°; diagonal 123° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° during installation |
| Infrared range |
Up to 30m |
| Wide dynamic range |
120dB |
| Analytics |
Human and vehicle classification for supported events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone |
| Speaker and external interfaces |
No built-in speaker, external audio input/output or alarm input/output stated for this exact IU model |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC, maximum 5.8W; IEEE 802.3af PoE Class 3, maximum 6.8W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal except for the trim ring, grey finish |
| Protection |
IP67 |
| Dimensions |
Ø138.3 × 126.3mm |
| Weight |
Approximately 730g |
Detection, Audio and Compatibility
AcuSense can classify human and vehicle targets for supported motion, line-crossing, intrusion, region-entry and region-exit events. Detection performance depends on target size, camera angle, lighting, scene conditions and configuration.
The built-in microphone records audio, but Hikvision does not state a speaker or audio output for this exact model, so it must not be presented as a two-way-audio camera. Confirm NVR 4MP decoding, AcuSense and audio-recording support, PoE capacity, storage-card compatibility and mounting accessories before ordering.
Frequently Asked Questions
Is grey part of the Hikvision model code?
No. The base model is DS-2CD2346G2-IU(2.8mm)(C); grey describes the housing finish supplied in this listing.
What is the maximum resolution?
2688 × 1520, commonly described as 4MP.
What lens is fitted?
A fixed 2.8mm F1.4 lens.
What is the field of view?
103° horizontal, 55° vertical and 123° diagonal.
What is the infrared range?
Up to 30 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported event types.
Does it have a built-in microphone?
Yes.
Does it support two-way audio?
No built-in speaker or audio output is stated.
What storage is supported?
Compatible microSD-family cards up to 512GB.
What is the protection rating?
IP67.
