The Hikvision DS-2CE78D0T-IT3FS(2.8MM) is a professional-grade 2 Megapixel (1080p) fixed turret analog camera designed for round-the-clock security monitoring and audio capture. Utilizing a high-performance image sensor and EXIR 2.0 night vision technology, it captures sharp, detailed video in 1920 × 1080 resolution at up to 30 frames per second, providing up to 40 meters of uniform night illumination. Housed in a rugged weatherproof IP67 metal turret casing, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable. With a wide-angle 2.8 mm fixed lens and switchable 4-in-1 video output, it represents a complete, highly reliable plug-and-play surveillance solution.

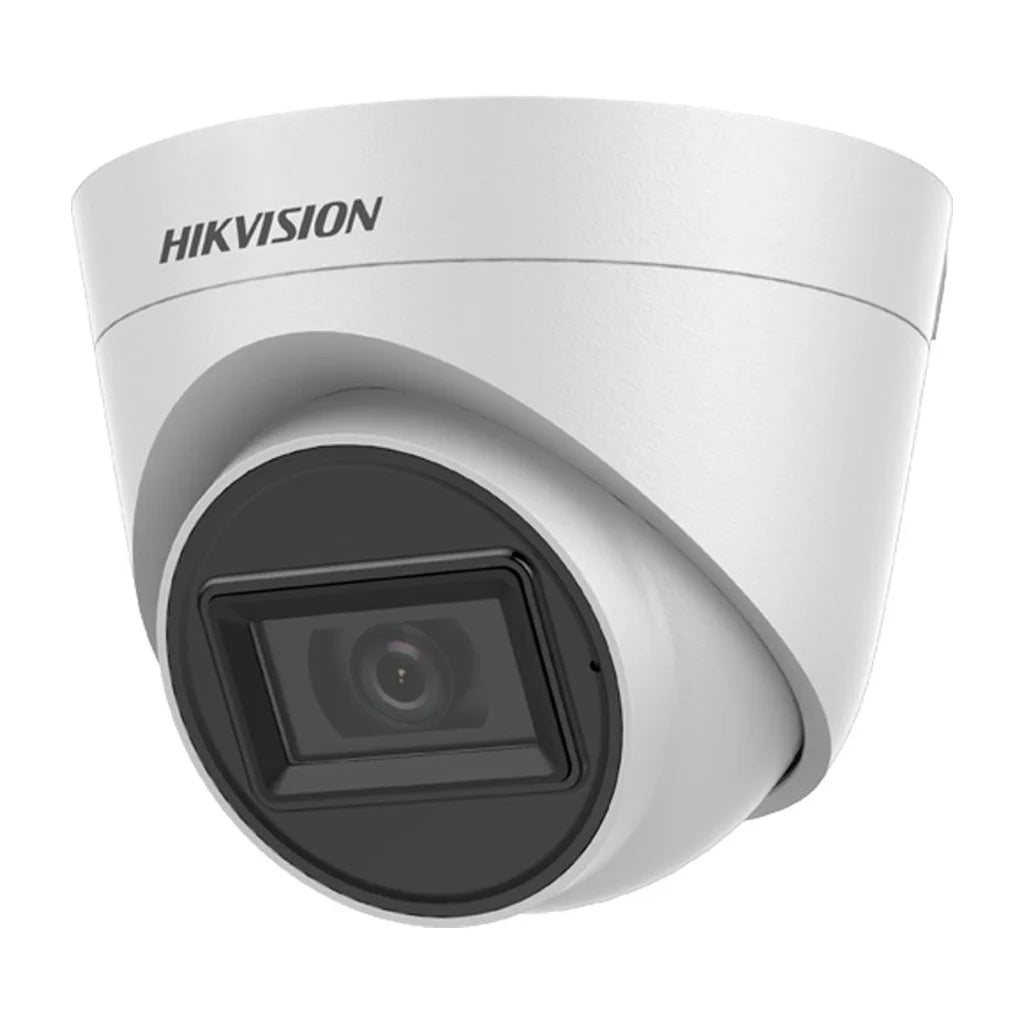

Hikvision DS-2CE78D0T-IT3FS 2MP Audio Fixed Turret Camera (2.8mm)
The Hikvision DS-2CE78D0T-IT3FS(2.8MM) is a professional-grade 2 Megapixel (1080p) fixed turret analog camera designed for round-the-clock security monitoring and audio capture. Utilizing a high-performance image sensor and EXIR 2.0 night vision technology, it captures sharp, detailed video in 1920 × 1080 resolution at up to 30 frames per second, providing up to 40 meters of uniform night illumination. This makes it an essential tool for professional security networks.
Housed in a rugged weatherproof IP67 metal turret casing, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable. With a wide-angle 2.8 mm fixed lens and switchable 4-in-1 video output, it represents a complete, highly reliable plug-and-play surveillance solution. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
2MP Full HD Video Quality
Records at 1080p resolution at 30 frames per second, providing exceptional pixel density for positive target identification, digital zoom, and forensic review.
Built-in Audio Recording Over Coax
Includes an integrated microphone that transmits high-quality audio over standard coaxial cabling, eliminating the need to run separate audio wires.
EXIR 2.0 Night Vision Technology
Provides uniform infrared night vision up to 40 meters without center overexposure or reflective halo rings around nighttime footage.
Switchable 4-in-1 Video Output
Features a switchable output terminal supporting TVI, AHD, CVI, and legacy CVBS signals, ensuring compatibility with major analog DVR brands.
2D Digital Noise Reduction (2D DNR)
Incorporates advanced 2D DNR noise reduction technology to filter video noise in low-light environments, rendering clear video detail.
IP67 Weatherproof Construction
Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.
Note: Ensure your DVR is configured to support Hikvision coaxial telemetry controls to enable audio transmission over the coaxial video cable.
KEY BENEFITS
- Vivid 2MP resolution delivers extreme clarity for forensic video reviews.
- Built-in mic allows immediate audio monitoring across the turret field of view.
- IP67 weatherproofing ensures stable operation in heavy rain, snow, and wind.
- EXIR 2.0 technology provides uniform 40m IR night vision without dark corners.
- Universal 4-in-1 output simplifies integration into existing analog CCTV systems.
- 2D DNR technology reduces video noise in low-light environments for sharper images.
- Supports digital WDR to balance contrast in moderately lit entrances.
- Durable metal casing provides rugged physical protection in exposed areas.
- Compact turret casing design is easy to mount on ceilings and walls.
- OSD coaxial menu allows easy settings control directly from the DVR console.
KEY FEATURES
- Model Code: DS-2CE78D0T-IT3FS
- Image Sensor: 2 Megapixel Progressive Scan CMOS
- Video Resolution: 1920 × 1080 (1080p HD)
- Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON)
- Focal Length: 2.8 mm Fixed Lens
- Field of View: 106.4° Horizontal Field of View
- Built-in Microphone: Yes (audio over coax)
- Audio Over Coaxial: Simplified cabling for audio transmission
- Night Vision Type: EXIR 2.0 Smart IR
- Supplement Light Range: Up to 40 meters (IR range)
- Signal Output: 4-in-1 TVI/AHD/CVI/CVBS switchable
- Weather Rating: IP67 dust and water resistant
- Dimensions: Ø 109.82 mm × 91.03 mm
- Chassis Material: Durable Metal and Plastic
- Chassis Colour: Architectural White finish
IDEAL FOR
- Residential driveway and front door perimeter surveillance.
- Commercial building exterior walls and parking lot zones.
- Retail storefront doors and checkout counter areas.
- School campus perimeters and outdoor corridors.
- Industrial yard boundaries requiring active deterrence.
- Gated entrance and driveway access monitoring.
- Unattended warehouses needing proactive warning systems.
- Construction sites requiring standalone edge recording.
- Car parks and vehicle entrance lanes requiring color capture.
- Replacing older analog cameras with 2MP resolution.
- Extreme weather outdoor security camera installations.
- High-contrast entrances with strong backlighting.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CE78D0T-IT3FS(2.8MM) |
| Product Type |
2MP Audio Turret Camera |
| Image Sensor |
2 Megapixel Progressive Scan CMOS |
| Resolution |
1920 × 1080 (1080p) |
| Min. Illumination |
Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Focal Length |
2.8 mm Fixed Lens |
| Horizontal FOV |
106.4° |
| Lens Mount |
M12 |
| Frame Rates (TVI) |
1080p@25fps, 1080p@30fps |
| Night Vision Type |
EXIR 2.0 Smart IR |
| Supplement Light Range |
Up to 40 meters (IR range) |
| WDR |
Digital WDR |
| Built-in Microphone |
Yes (audio over coax) |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Video Output |
4-in-1 switchable TVI/AHD/CVI/CVBS video output |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Power Supply Options |
12 VDC ± 25% (Max 3.0W) |
| Power Consumption |
Max. 3.0 W |
| Physical Dimensions |
Ø 109.82 mm × 91.03 mm |
| Net Weight |
Approx. 300 g (0.66 lbs) |
| Chassis Material |
Metal & Plastic combination |
Frequently Asked Questions
What is the resolution of the DS-2CE78D0T-IT3FS?
The camera has a 2MP sensor that records at 1920 × 1080 resolution (1080p HD) for clear surveillance logs.
Does this camera support low-light performance?
Yes, it features an low light sensor capable of colour imaging down to 0.01 Lux before switching to infrared night vision.
Can it record audio?
Yes, the camera features a built-in microphone that transmits audio over standard coaxial cables directly to compatible DVRs.
What night vision range does it support?
Using EXIR 2.0 technology, the camera provides uniform infrared night vision up to 40 meters in complete darkness.
Can this camera work with non-Hikvision DVRs?
Yes, the camera has a switchable 4-in-1 output supporting TVI, CVI, AHD, and legacy CVBS analog signals, making it widely compatible.
Is the camera weatherproof?
Yes, it is rated IP67 for water and dust resistance, making it suitable for outdoor installations.
What power source does it require?
It supports a standard 12 VDC (± 25%) input. Power consumption is max. 3.0 W.
Does this camera support PoC?
No, this model does not support Power over Coaxial (PoC). It requires standard 12V DC power wiring.
What mounting brackets are compatible?
It is compatible with Hikvision DS-1272ZJ-110 wall mounts and DS-1280ZJ-TR13 junction boxes.
Does it support WDR?
Yes, it features digital Wide Dynamic Range (DWDR) to maintain clear images in high-contrast backlight settings.
