Black Hikvision DS-2CD23166G3-I2UY Product Overview

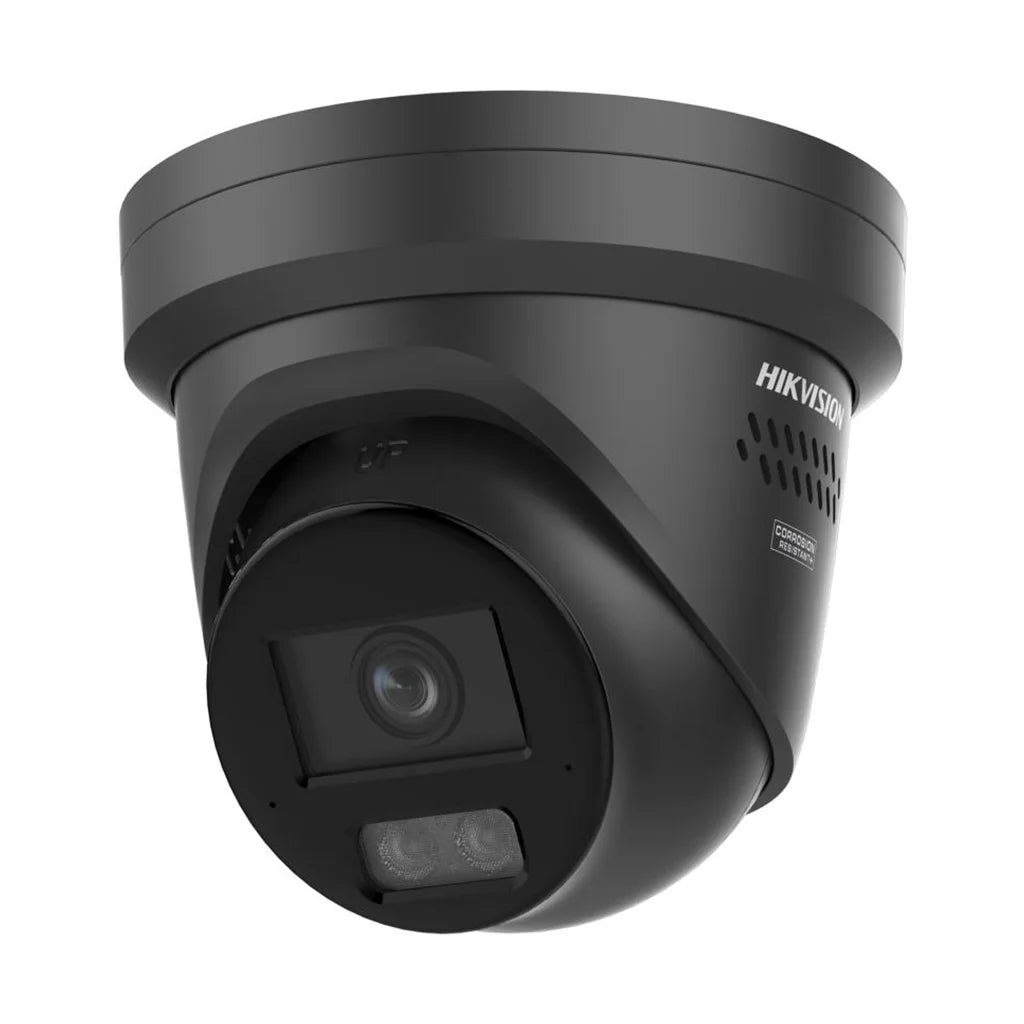

The Hikvision DS-2CD23166G3-I2UY(2.8mm)(eF) in black is a 16MP AcuSense Powered-by-DarkFighter fixed turret network camera. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 4608 × 3456, while the fixed 2.8mm F1.6 lens provides a 94.5° horizontal field of view.
The camera combines infrared illumination up to 40 metres, 130dB WDR, human and vehicle classification, face capture, an arrayed dual microphone and local memory-card support up to 512GB. This exact I2UY version does not have a manufacturer-stated built-in speaker, external audio input/output or alarm input/output, so it is not presented as a two-way-audio or active-deterrence model.
Key Benefits
-
Very high image detail: captures up to 4608 × 3456 for detailed live viewing and playback.
-
DarkFighter low-light imaging: supports useful image detail in very low illumination.
-
Infrared night monitoring: built-in IR has a manufacturer-rated range of up to 40 metres.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Backlight handling: 130dB WDR helps retain detail where bright and dark areas appear together.
-
Integrated audio capture: an arrayed dual microphone records sound without implying speaker playback.
-
Local recording: compatible microSD-family cards up to 512GB are supported.
-
Protected black housing: IP67 and NEMA 4X ratings support exposed installations and moderate anti-corrosion protection.
Key Features
- 16MP maximum resolution of 4608 × 3456
- 12.5fps in 50Hz mode or 15fps in 60Hz mode at maximum resolution
- Up to 20fps at 4608 × 2592
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed lens with F1.6 aperture
- Minimum colour illumination of 0.0008 lux at F1.6 with AGC enabled
- Infrared illumination up to 40 metres
- 130dB wide dynamic range
- Human and vehicle classification for supported events
- Face-capture support
- Built-in arrayed dual microphone
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 and NEMA 4X protection
Technical Specifications
| Model |
DS-2CD23166G3-I2UY(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
4608 × 3456 |
| Maximum frame rate |
12.5fps in 50Hz mode or 15fps in 60Hz mode at 4608 × 3456; 20fps at 4608 × 2592; up to 25fps in 50Hz mode or 30fps in 60Hz mode at supported lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.6 with AGC on; 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.6 |
| Field of view |
Horizontal 94.5°; vertical 69.9°; diagonal 123.2° |
| Infrared range |
Up to 40m |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification for supported events; face capture |
| Built-in audio |
Arrayed dual microphone |
| Speaker and external interfaces |
No built-in speaker, external audio input/output or alarm input/output stated for this exact model |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Power |
12V DC, maximum 8.5W; IEEE 802.3af PoE Class 3, maximum 10.5W |
| Protection |
IP67 weather resistance and NEMA 4X moderate anti-corrosion protection |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 750g |
Resolution, Frame Rate and Compatibility
At the full 4608 × 3456 resolution, the maximum frame rate is 12.5fps in 50Hz mode or 15fps in 60Hz mode. The camera can record at 20fps at 4608 × 2592 and at higher frame rates at supported lower resolutions. Confirm the recorder's resolution, frame-rate, bandwidth and decoding capacity before ordering.
The dual microphones provide audio capture, but no speaker or external audio output is stated. Confirm AcuSense compatibility, PoE capacity, storage-card support and the required mounting accessory.
Frequently Asked Questions
Is this the black version?
Yes. This listing is for the black-finish version of the DS-2CD23166G3-I2UY(2.8mm)(eF).
What is the maximum resolution?
4608 × 3456, commonly described as 16MP.
What is the maximum frame rate at full resolution?
12.5fps in 50Hz mode or 15fps in 60Hz mode.
What lens is fitted?
A fixed 2.8mm F1.6 lens.
What is the infrared range?
Hikvision specifies up to 40 metres under manufacturer test conditions.
Can it classify people and vehicles?
Yes, for supported event types.
Does it have built-in microphones?
Yes. It has an arrayed dual microphone.
Does it support two-way audio?
No. A built-in speaker or external audio output is not stated for this exact model.
What storage is supported?
Compatible microSD-family cards up to 512GB.
What are the protection ratings?
IP67 and NEMA 4X.
